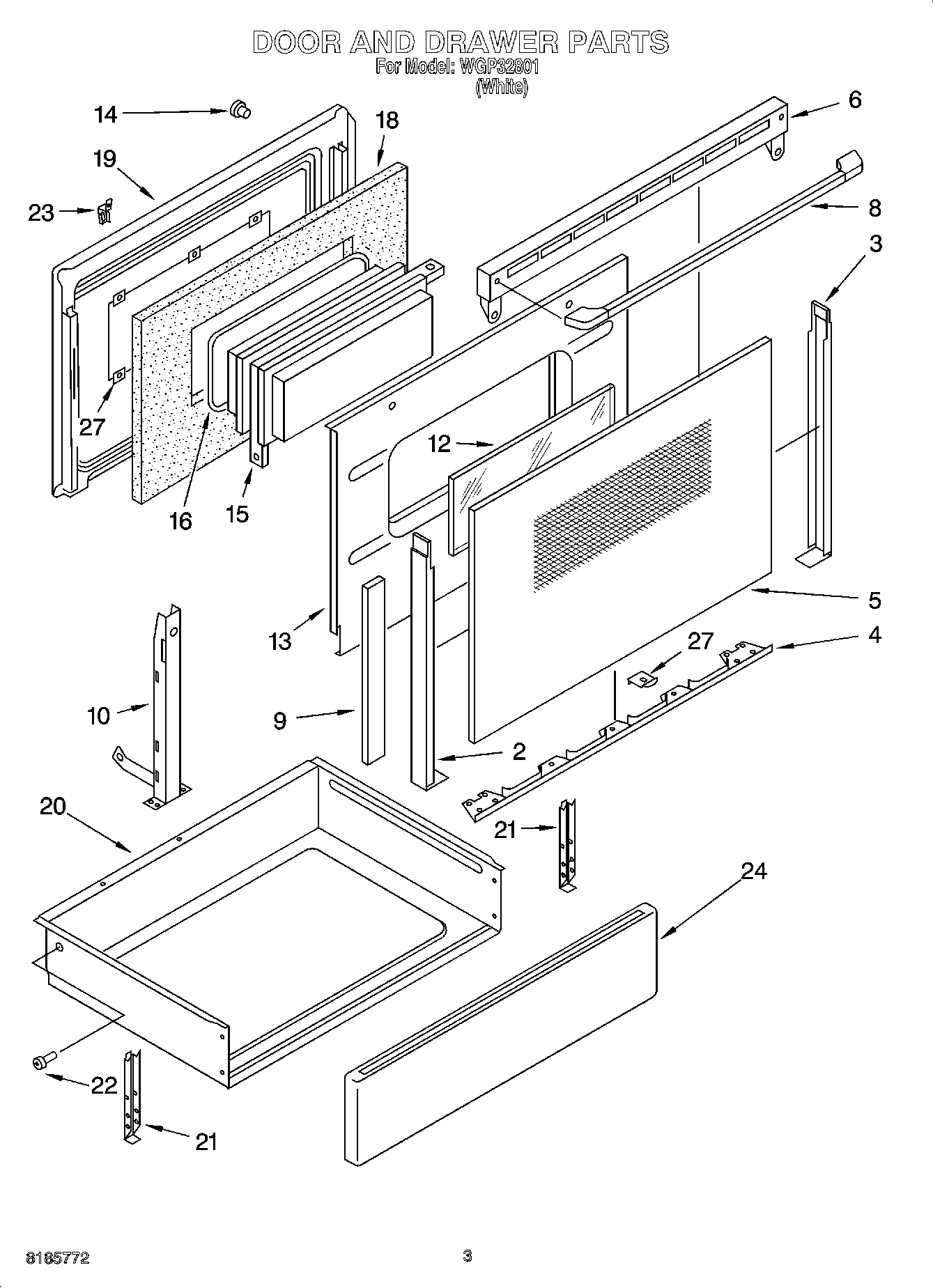

WGP32801 03 – DOOR AND DRAWER PARTS

Products

Position	Product
2	Trim, Door-Left (White)
3	Trim, Door-Right (White)
4	Trim, Door Bottom (White)
5	Glass, Door Front
6	Vent, Door (Gasket, Vent)
6	Vent, Door (White)
8	Handle, Door
8	WPW10001180 Whirlpool Refrigerator Screw
9	Gasket, Door Glass
10	WP9782033 Whirlpool Door Hinge
10	Screw (4) 10 x 1/2
12	Frame, Window
13	Shield Door
14	238614 Whirlpool Bumper Hinge
15	WP9781654 Whirlpool Door Glass
16	Seal, Window
18	Insulation, Door
19	Liner, Door
20	Drawer & Roller
21	Bracket, Drawer
22	814229 Whirlpool Primary Roller
23	Retainer, Glass
24	Front, Drawer (White)
27	WP4159387 Whirlpool Compactor Screw
27	Spacer, Door (8)
