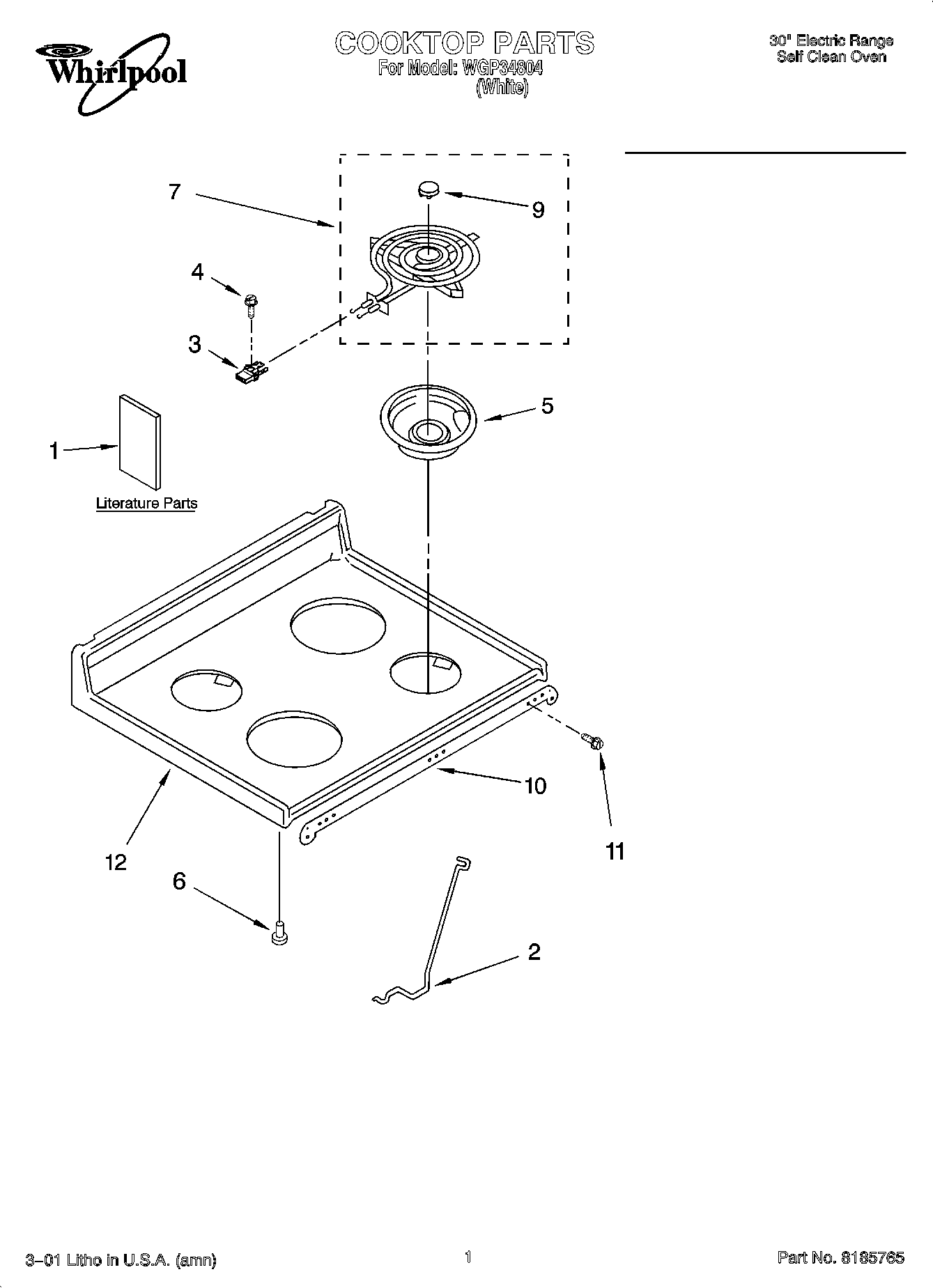

WGP34804 01 – COOKTOP PARTS

Products

PositionProduct
1Literature Parts (Wiring Diagram)
1Literature Parts (Use & Care Guide)
1WPL LIT9752776
1Literature Parts (Installation Instructions)
2Cooktop Rod
3Receptacle, Clip
4WP313808 Whirlpool Screw
5WPW10290350 Whirlpool Stove Drip Bowl
5WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
6238614 Whirlpool Bumper Hinge
7Element, Surface (Coil, 6“ LR (Accu Simmer))
7Element, Surface (Coil, 8“ LF-RR)
7Element, Surface (Coil, 6“ RF)
9Medallion, (4)
9Medallion, (1) (Accu-Simmer)
10Guard, Wire
11Screw (2) 8 x 3/8
12Cooktop, Coil
