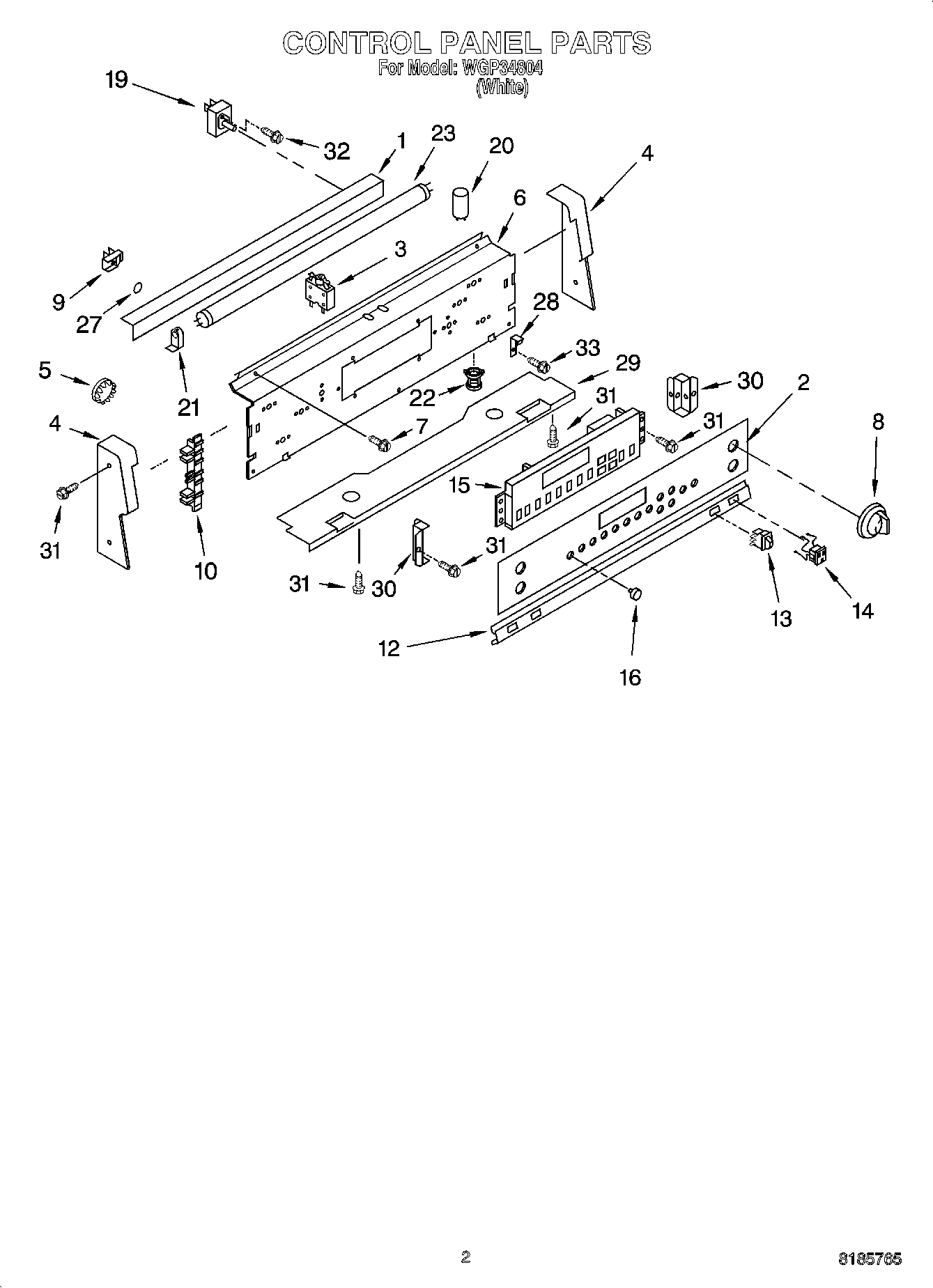

WGP34804 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Lamp Cover
2	Console-Glass (White)
3	Breaker, 15 Amp
4	End Cap (Left)
4	End Cap (Right)
5	Button Plug (8 mm (2))
6	Panel, Control
7	Panel, Control (Screw, (2) 8 x 3/8)
8	WP9752405FW Whirlpool Knob
9	Light, Indicator (Surface Unit (2))
10	Insert (2) (White)
12	Trim Strip
13	Switch, Oven Light (White)
14	Outlet, Untimed
15	Timer
16	Knob, Timer (17) (White)
19	WP9750646 Whirlpool Infinite Switch
19	WP9750643 Whirlpool Infinite Switch
20	Starter, Light
21	Receptacle, Light
22	Starter, Holder
23	WP95292 Whirlpool Fluorescent Light Bulb
27	WP9750343 Whirlpool Light Lens
28	WPL 9753017
29	Base, Console
30	WPL 9753304
31	WP4159387 Whirlpool Compactor Screw
32	WP3400882 Whirlpool Screw
33	WP3400832 Whirlpool Screw
33	Spacer, Timer
