WGP34904 02 – CONTROL PANEL PARTS
Written by
in

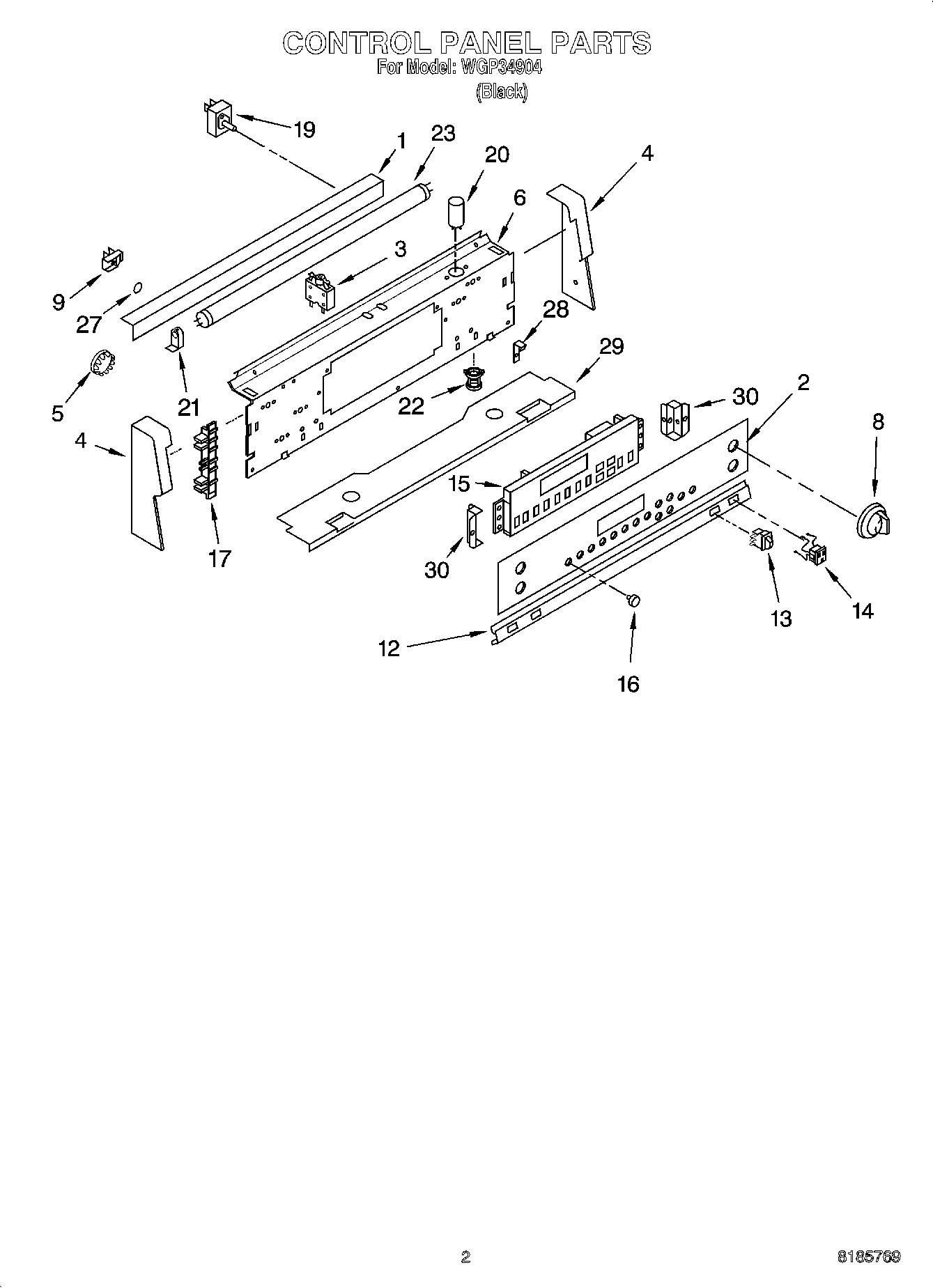

WGP34904 02 – CONTROL PANEL PARTS
Products
Position
Product
1
Lamp Cover
2
Console-Glass (Black (Control Panel))
3
Breaker, 15 Amp
4
End Cap (Black, Left)
4
End Cap (Black, Right)
5
Button Plug (8 mm (2))
6
Panel, Control
6
Panel, Control (Screw, (2) 8 x 3/8)
8
Knobs, Control (4) (Black)
9
Light, Indicator (Surface Unit (2))
12
Trim Strip
13
Switch, Oven Light (Black)
14
Outlet, Untimed
15
Spacer, Timer
15
Timer
16
Knob, Timer (17) (Black)
17
Insert (2) (Black)
19
WP9750643 Whirlpool Infinite Switch
19
WP9750646 Whirlpool Infinite Switch
19
WP3400882 Whirlpool Screw
20
Starter, Light
21
Receptacle, Light
22
Starter, Holder
23
WP95292 Whirlpool Fluorescent Light Bulb
27
WP9750343 Whirlpool Light Lens
28
WPL 9753017
29
Base, Console
29
WP3400832 Whirlpool Screw
30
WPL 9753304
30
WP4159387 Whirlpool Compactor Screw
←
