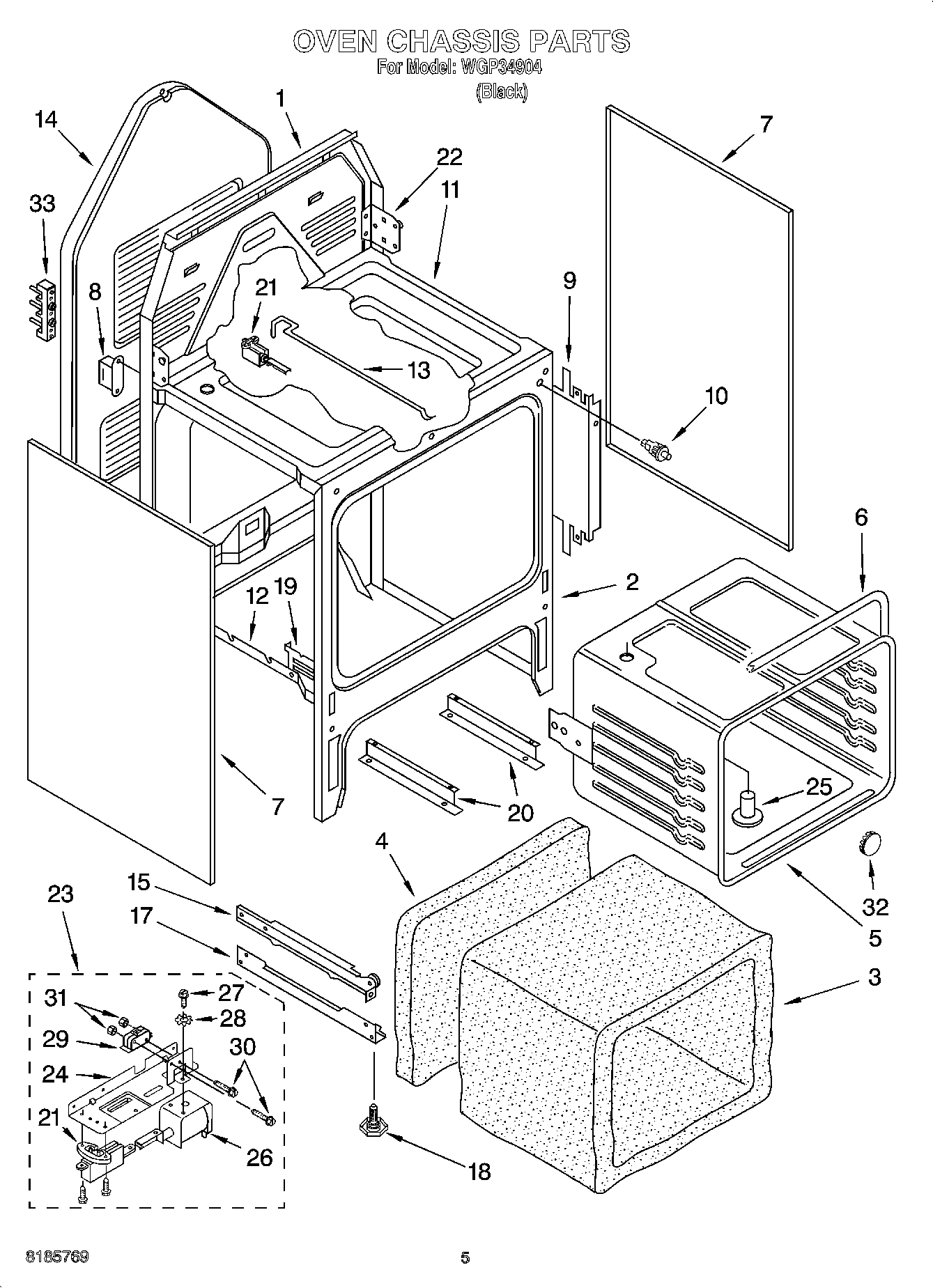

WGP34904 04 – OVEN CHASSIS PARTS

Products

Position	Product
1	Main Chassis, Back
2	Chassis, Front
3	Insulation, Wrap
4	Insulation, Rear
5	Oven Liner
6	Gasket, Oven
7	Body, Side (Black)
8	Ballast, Lamp
9	Shield, Insulation
10	Door Switch (oven Light)
11	Washer (3)
11	Screw, (2)
11	Burner Box
12	Oven Bottom
13	Rod, Lock
14	Panel, Rear
15	Rail, Drawer (Right)
15	Drawer Rail, Left
17	Bottom Rail (2)
18	WPW10058460 Whirlpool Appliance Levelling Leg
19	Hinge, Base L or R
19	Screw (4) 10 x 1/2
20	Support Rail
21	Single Position Device (Not Serviced)
22	Hinge, Cktp.-Left
22	Hinge, Cktp.-Right
23	Oven Lock Assembly (Includes No.21)
24	Bracket, Lock
24	WP4159387 Whirlpool Compactor Screw
25	Vent Tube
26	Solenoid
27	Screw (2) 10-32 x 5/16
28	Washer (2)
29	Switch, Interlock
30	Screw, (2)
31	Nut (2)
32	Button, Plug
33	Screw, (2) 10-16 x 1
33	WP8203546 Whirlpool Terminal Block
33	WP112432 Whirlpool Nut Assembly
