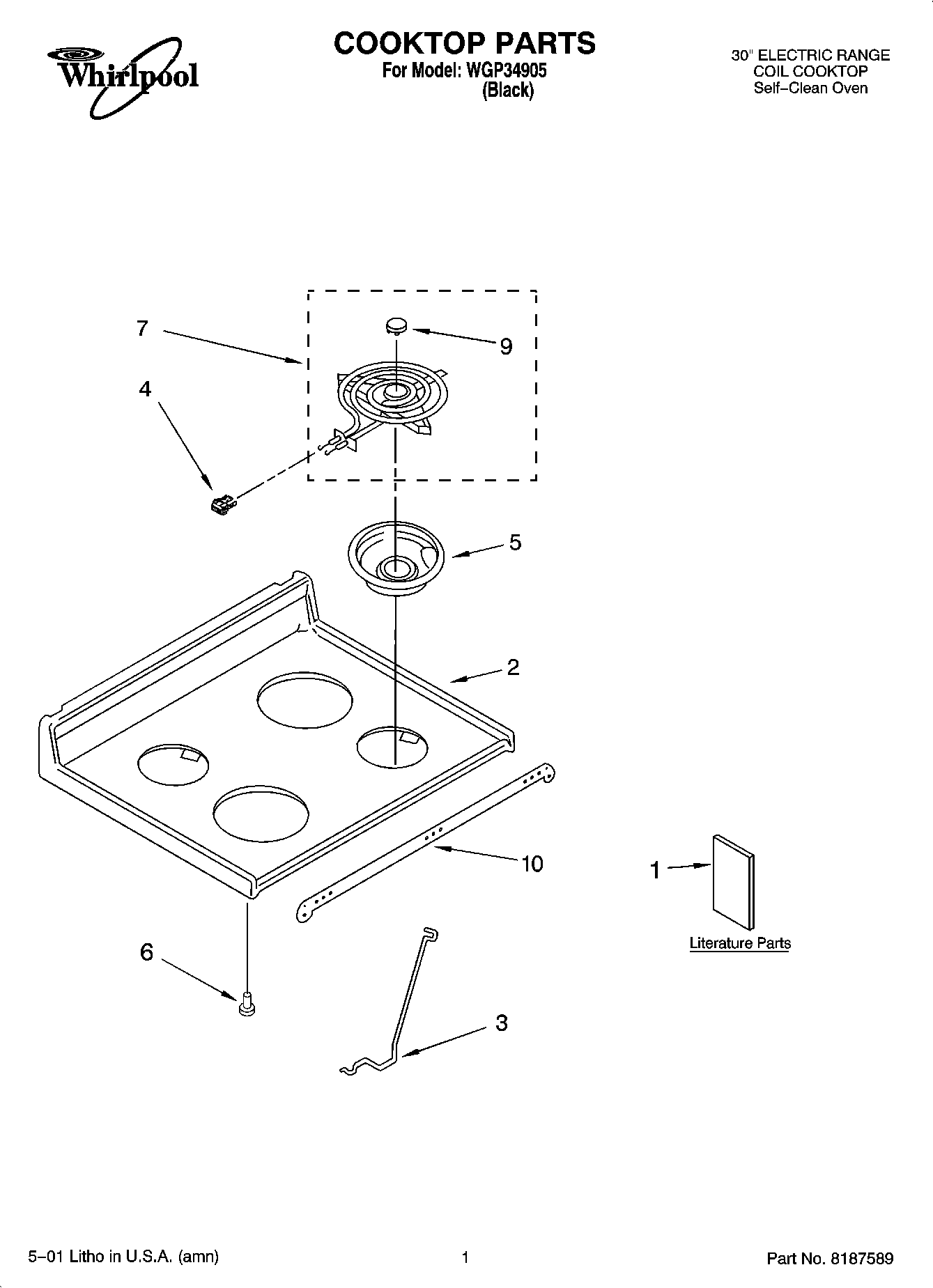

WGP34905 01 – COOKTOP PARTS

Products

Position	Product
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Installation Instructions)
1	Literature Parts (Installation Instructions)
1	Literature Parts (Wiring Diagram)
1	WPL LIT9752776
2	Cooktop, Coil (Black)
3	Cooktop Rod
4	WP313808 Whirlpool Screw
4	Receptacle, Clip
5	WPW10290350 Whirlpool Stove Drip Bowl
5	WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
6	238614 Whirlpool Bumper Hinge
7	Element, Surface (Coil, 6“ LR (Accu Simmer))
7	Element, Surface (Coil, 8“ LF-RR)
7	Element, Surface (Coil, 6“ RF)
9	Medallion, (4)
9	Medallion, (1) (Accu-Simmer)
10	Guard, Wire
10	Screw (2) 8 x 3/8
