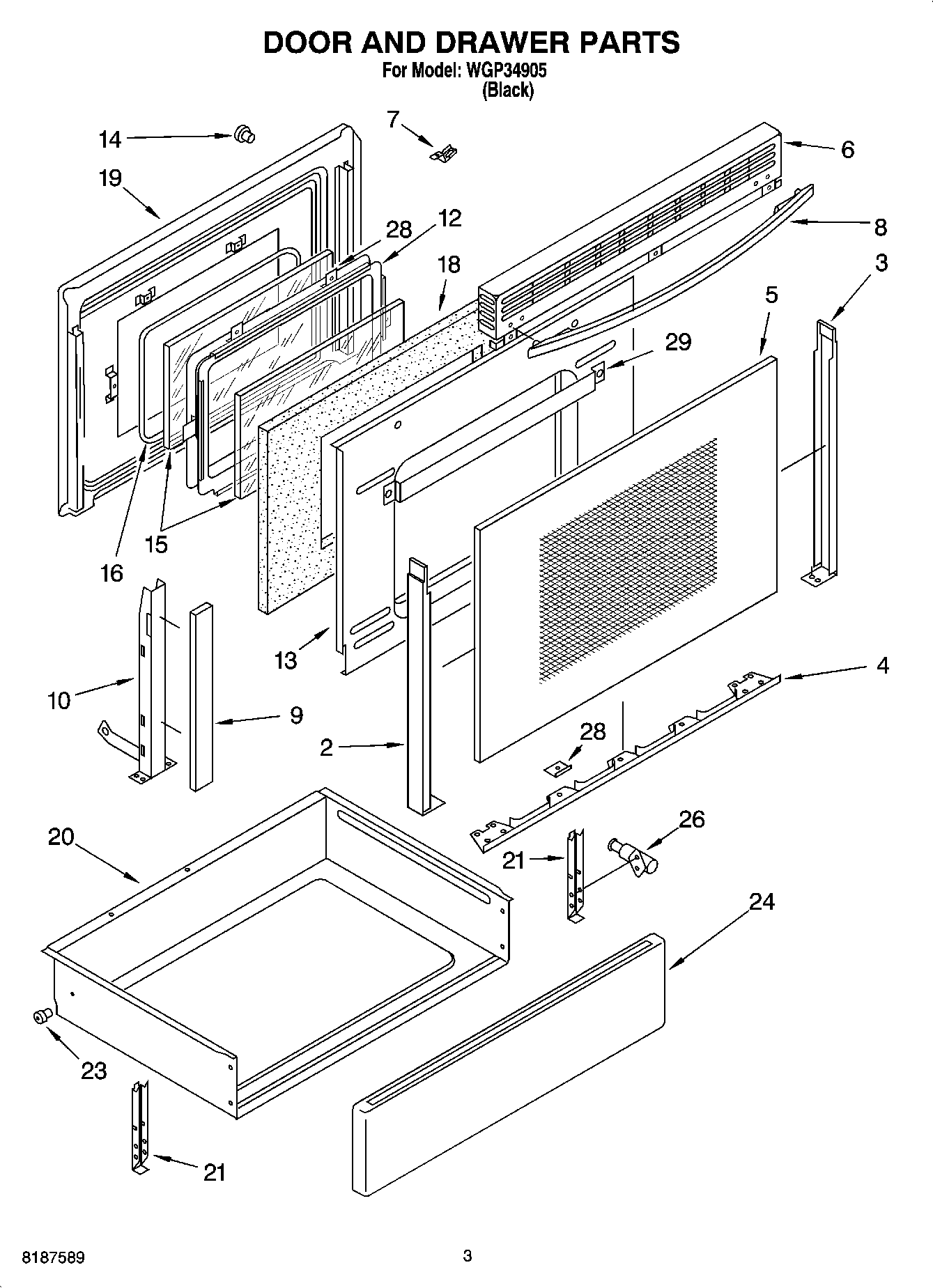

WGP34905 03 – DOOR AND DRAWER PARTS

Products

Position	Product
2	Trim, Door-Left (Black)
3	Trim, Door-Right (Black)
4	Trim, Door Bottom (Black)
5	Glass, Door Front (Black)
6	Vent, Door (Black)
6	Vent, Door (Gasket, Vent)
7	Retainer, Glass
8	WPW10001180 Whirlpool Refrigerator Screw
8	Handle, Door
9	Gasket, Door Glass
10	WP9782033 Whirlpool Door Hinge
12	Frame, Window
13	Shield, Door
14	238614 Whirlpool Bumper Hinge
15	WP9781593 Whirlpool Door Glass
16	WP9755177 Whirlpool Wind Gasket
18	Insulation, Door
19	Liner, Door
20	Drawer & Roller
21	Bracket, Drawer
21	Screw (4) 10 x 1/2
23	814229 Whirlpool Primary Roller
24	Front, Drawer (Black)
26	WPL 9780806
26	WP90296 Whirlpool Clip
26	Latch, Drawer
28	WP4159387 Whirlpool Compactor Screw
28	Spacer, Door (8)
29	Channel, Heat
