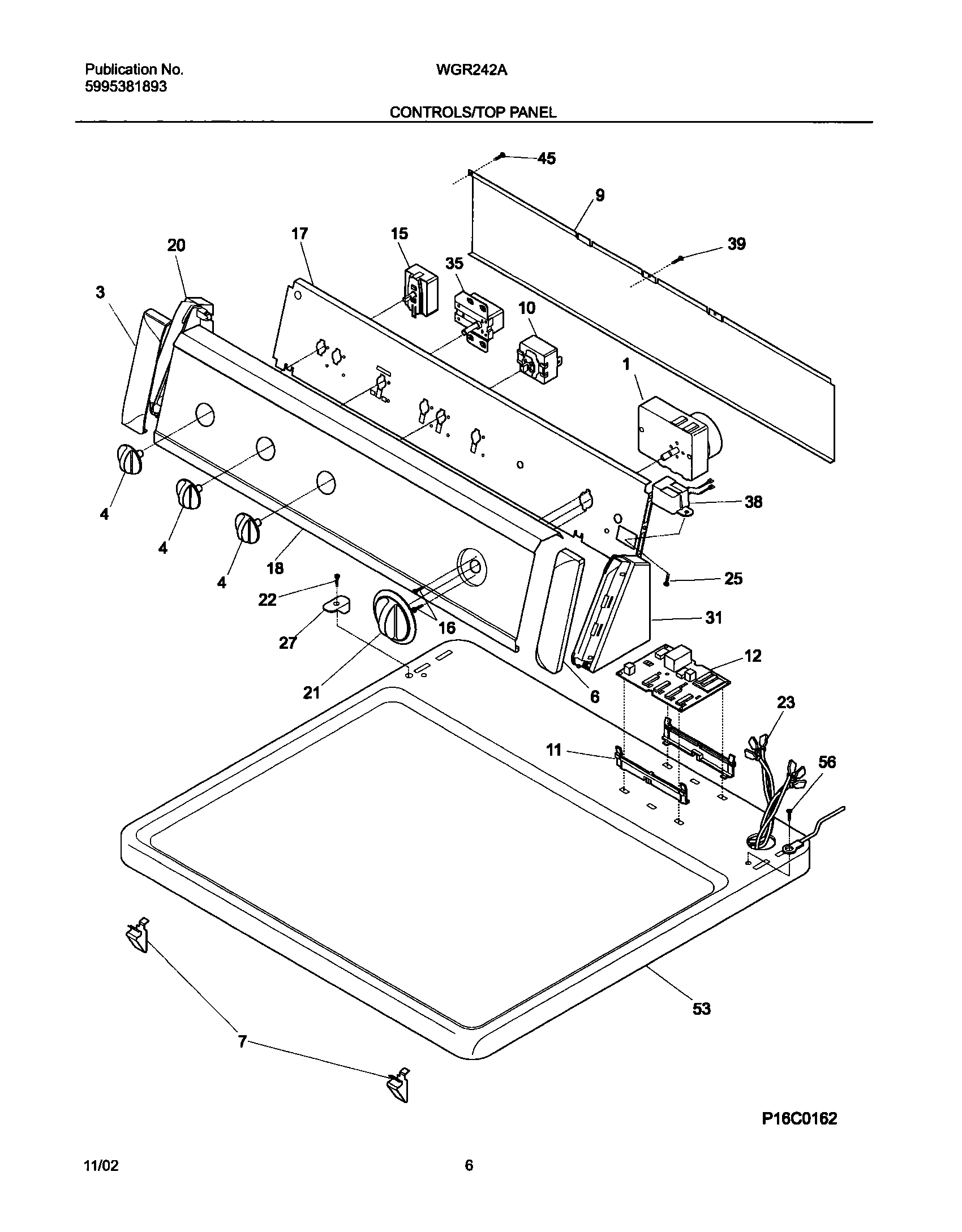

WGR242AQ2 07 – CONTROLS/TOP PANEL

WGR242AQ2 07 – CONTROLS/TOP PANEL

Written by

in

WGR242AQ2 07 – CONTROLS/TOP PANEL

Products

PositionProduct
NIWCI 131629600
1131905500 Frigidaire Primary Timer
3WCI 131122613
4131858004 Frigidaire Control Knob, White
6WCI 131122603
73205821 Frigidaire Clip
9WCI 134088700
10134398300 Frigidaire Washer Dryer Turn-to-Start Switch
11BRACKET-CONTROL BOARD
12CONTROL BOARD,MOISTURE SENSOR
15WCI 131641900
16218359202 Frigidaire Refrigerator Screw
17WCI 131728900
18WCI 134105400
20WCI 131122713
21Knob,timer ,bisque/brown
22WCI 131266300
23WCI 134005400
255303015671 Frigidaire Bracket Termination Screw
27CLIP-CONSOLE MTG
31WCI 131122703
35Switch,2 position
38WCI 131629400
39131243700 Frigidaire Screw
45131205100 Frigidaire Screw
53Panel,dryer top ,bisque ,console mtg
56131243800 Frigidaire Screw
