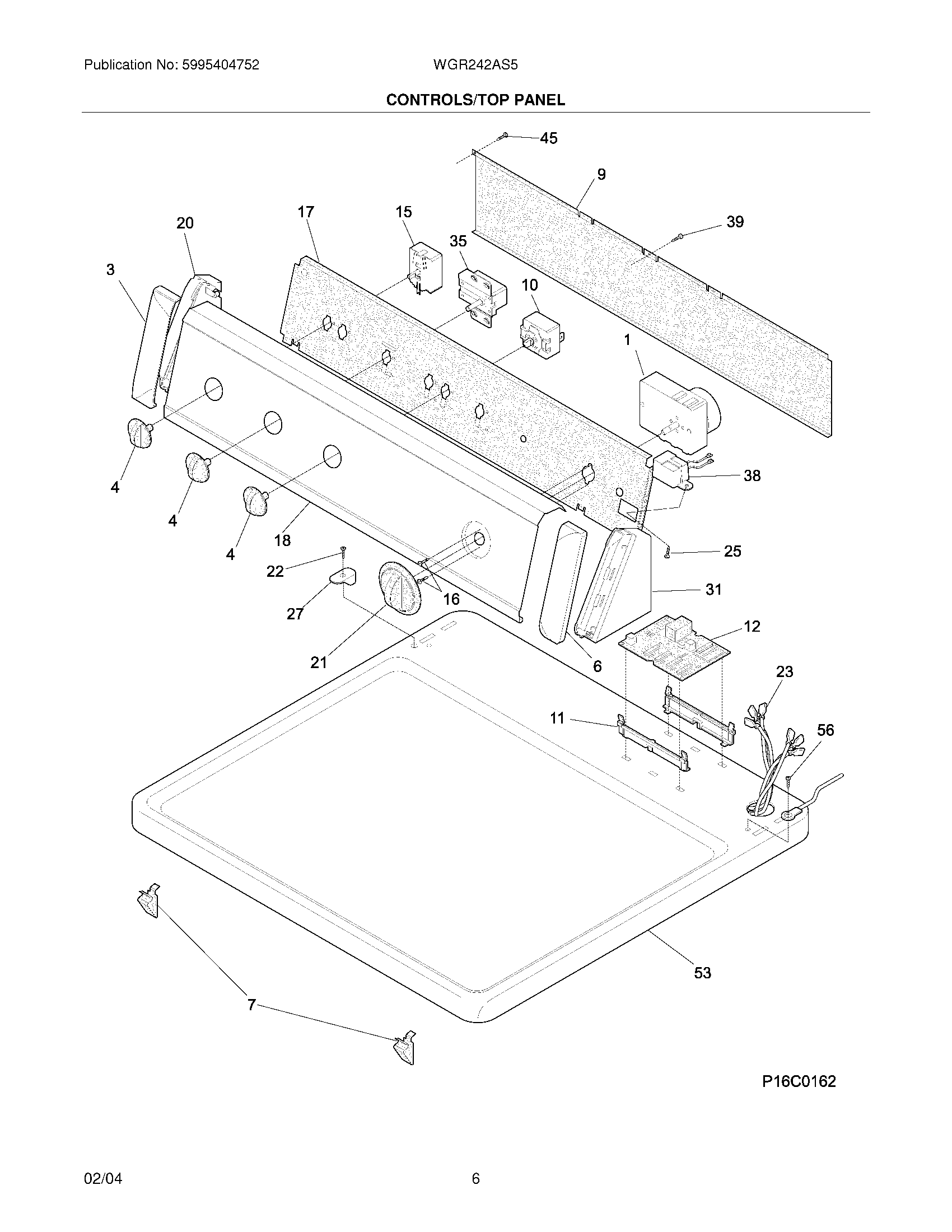

WGR242AS5 07 – CONTROLS/TOP PANEL

WGR242AS5 07 – CONTROLS/TOP PANEL

Written by

in

WGR242AS5 07 – CONTROLS/TOP PANEL

Products

PositionProduct
NIWCI 131629600
NI134101400 Frigidaire Dryer Kit Terminal Block
1131905500 Frigidaire Primary Timer
3COVER-CAP-LH-WHITE
4131858004 Frigidaire Control Knob, White
6COVER-CAP-RH-WHITE
73205821 Frigidaire Clip
9WCI 134088700
10134398300 Frigidaire Washer Dryer Turn-to-Start Switch
11BRACKET-CONTROL BOARD
12WCI 134216300
15WCI 131641900
16218359202 Frigidaire Refrigerator Screw
17WCI 131728900
18Panel,trimplate ,console front
20END CAP-L.H.-WHITE
21WCI 131810500
22WCI 131266330
23WCI 134005400
255303015671 Frigidaire Bracket Termination Screw
27CLIP-CONSOLE MTG
31END CAP-R.H.-WHITE
35Switch,2 position
38WCI 131629400
39131243700 Frigidaire Screw
45131205100 Frigidaire Screw
53WCI 134086802
56131243800 Frigidaire Screw
