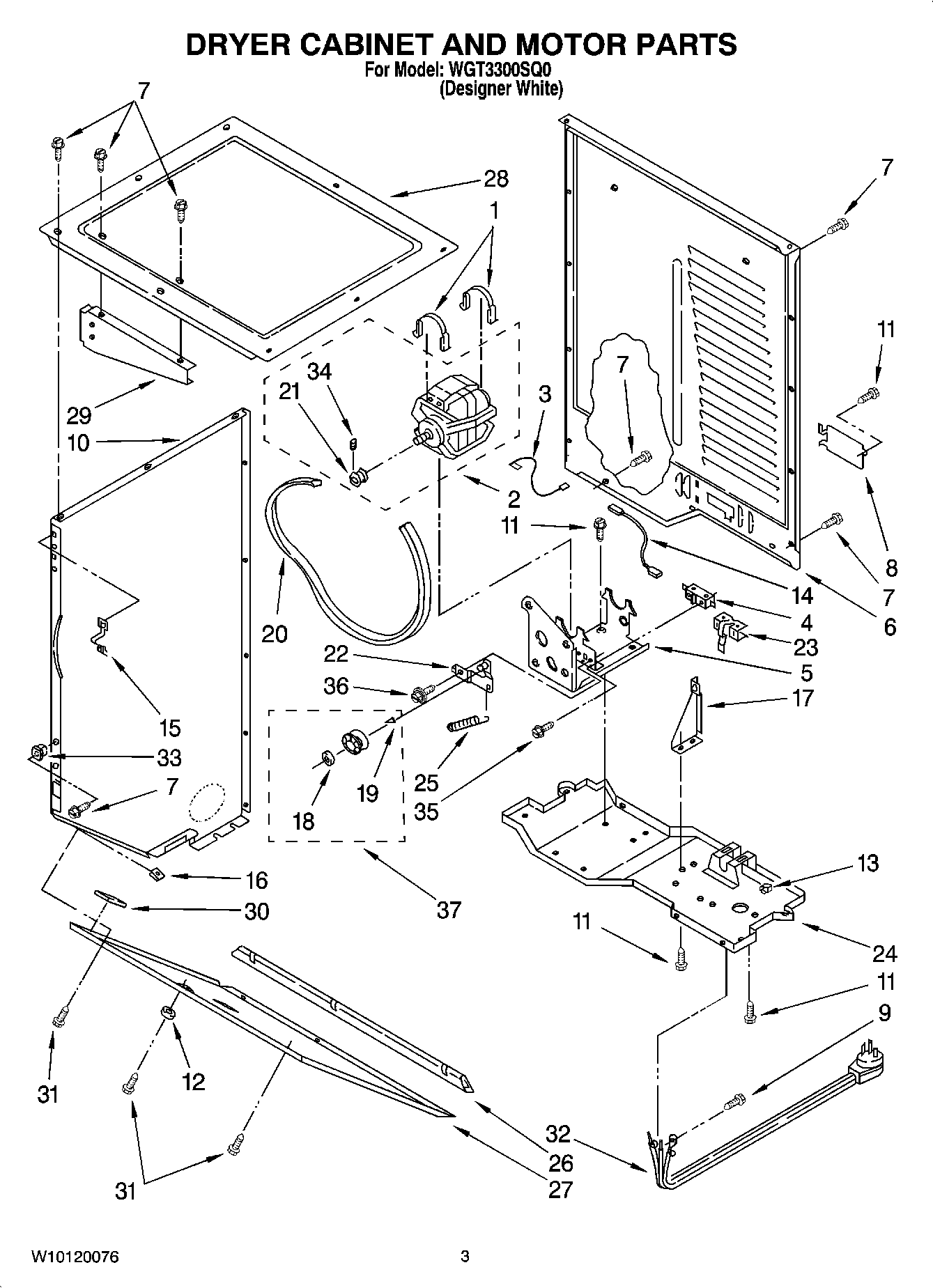

WGT3300SQ0 03 – DRYER CABINET AND MOTOR PARTS

Products

Position	Product
1	WP660658 Whirlpool Clamp
3	3398948 Whirlpool Wire
4	279782 Whirlpool Lid Switch
5	W11107903 Whirlpool Bracket
6	Panel, Rear
7	SCREW
8	279814 Whirlpool Cover
9	WP90767 Whirlpool Screw
10	3389256 Whirlpool Panel
10	3389264 Whirlpool Panel Assembly
11	WP3390631 Whirlpool Screw
12	WP3389431 Whirlpool Bumper Assembly
13	Clip
14	Wire, Belt Switch
15	3389231 Whirlpool Clip Front Panel
16	WP98234 Whirlpool Nut
17	3391639 Whirlpool Bracket Assembly
19	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
20	661570V Whirlpool Dryer Drum Belt
21	279811 Whirlpool Dryer Drive Motor
22	WPW10547294 Whirlpool Idler Pulley
23	WP8066120 Whirlpool Lever Assembly
24	Base, Dryer
25	WPW10446781 Whirlpool Spring
26	3389683 Whirlpool Cover Assembly
27	3389272 Whirlpool Panel
28	Top, Dryer
29	3390722 Whirlpool Shield Assembly
30	3389682 Whirlpool Spacer
31	WP693304 Whirlpool Screw
32	WPW10581952 Whirlpool Power Cord
33	WP692400 Whirlpool Nut
34	Pin, Roll
35	WP98129 Whirlpool Screw
36	WP3389420 Whirlpool Screw
37	279640 Whirlpool Dryer Idler Pulley Kit
