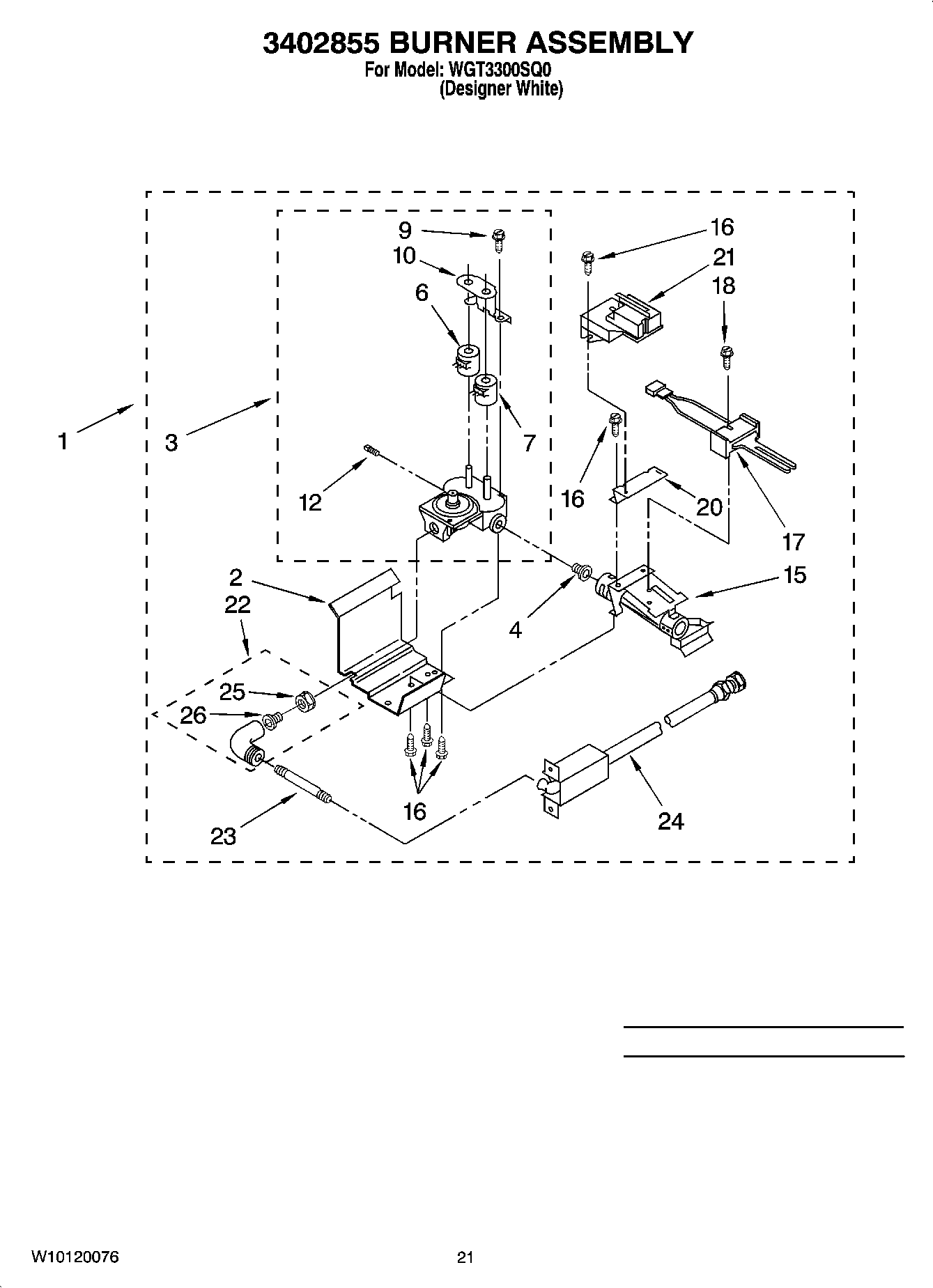

WGT3300SQ0 15 – 3402855 BURNER ASSEMBLY, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	279823 Whirlpool Exhaust Pipe
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	WP285195 Whirlpool Sealer Assembly
	LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
	4392901 Whirlpool Biscuit Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	OIL
	LUBRICANT
	SEALER
	350930 Whirlpool White Spray Paint
	350938 Whirlpool Spray Gun
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	ACCESSORIES
	350572 Whirlpool Oil Transmission 15 Oz
1	Burner Assembly 60 Hz.
2	3391699 Whirlpool Base
3	279889 Whirlpool Valve Assembly
4	ORIFICE, BURNER (TYPE 4 (BUTANE))
4	ORIFICE, NATURAL GAS
6	279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
9	694421 Whirlpool Screw Assembly
10	694538 Whirlpool Bracket
12	W10295523 Whirlpool Plug
15	8578392 Whirlpool Burner
16	WP693995 Whirlpool Screw
17	279311 Whirlpool Dryer Flat Igniter with Bracket
18	WPW10366705 Whirlpool Screw
20	Bracket, Sensor
21	WP338906 Whirlpool Dryer Gas Sensor
22	3406051 Whirlpool Elbow
23	Nipple, Short
24	Supply Line (Gas)
25	Nut, Compression
26	3392235A Whirlpool Gas Conversion Kit
26	3393767 Whirlpool Pipe
26	Following Parts Not Illustrated
