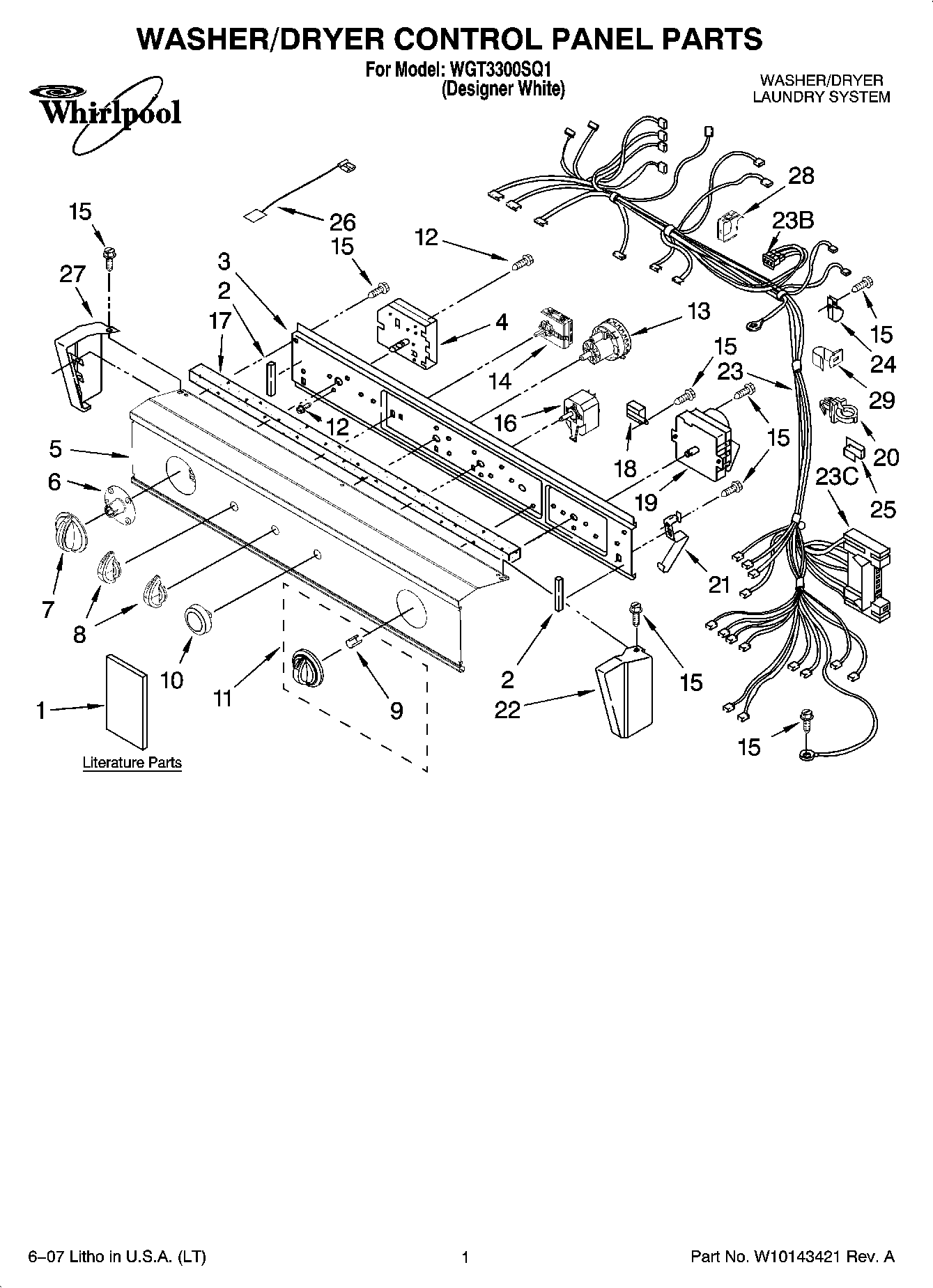

WGT3300SQ1 01 – WASHER/DRYER CONTROL PANEL PARTS

Products

PositionProduct
1Use & Care Guide
1Wiring Diagram
1Installation Instructions
1Energy Guide
1Sheet, Cycle Feature
23390688 Whirlpool Bumper Assembly
3W10732070 Whirlpool Bracket
4WPW10113804 Whirlpool Timer Assembly
5Panel, Control
6WP8566018 Whirlpool Dial Assembly
7Knob, Timer
8Knob, Control
9WP8536939 Whirlpool Spring Clip
10WP8566073 Whirlpool Appliance Knob
11WP8566061 Whirlpool Knob
12W10915367 Whirlpool Screw Assembly
13Switch, Pressure
14W11103599 Whirlpool Temperature Switch
15WP90767 Whirlpool Screw
16WP3404233 Whirlpool Dryer Starter Switch
178521965 Whirlpool Gasket
18WP694419 Whirlpool Buzzer Adjuster
19WPW10113761 Whirlpool Timer
202219077 Whirlpool Refrigerator Clip
213389453 Whirlpool Hinge Assembly
22End Cap (RH)
23W10139463 Whirlpool Wire Harness
23C3395683 Whirlpool Connector
23BReceptacle,
247111P002-60 Whirlpool Clamp
25Clip, Harness (2)
26W10121648 Whirlpool Timer Jumper
27End Cap (LH)
28Clip, Harness
29Clip, Harness
