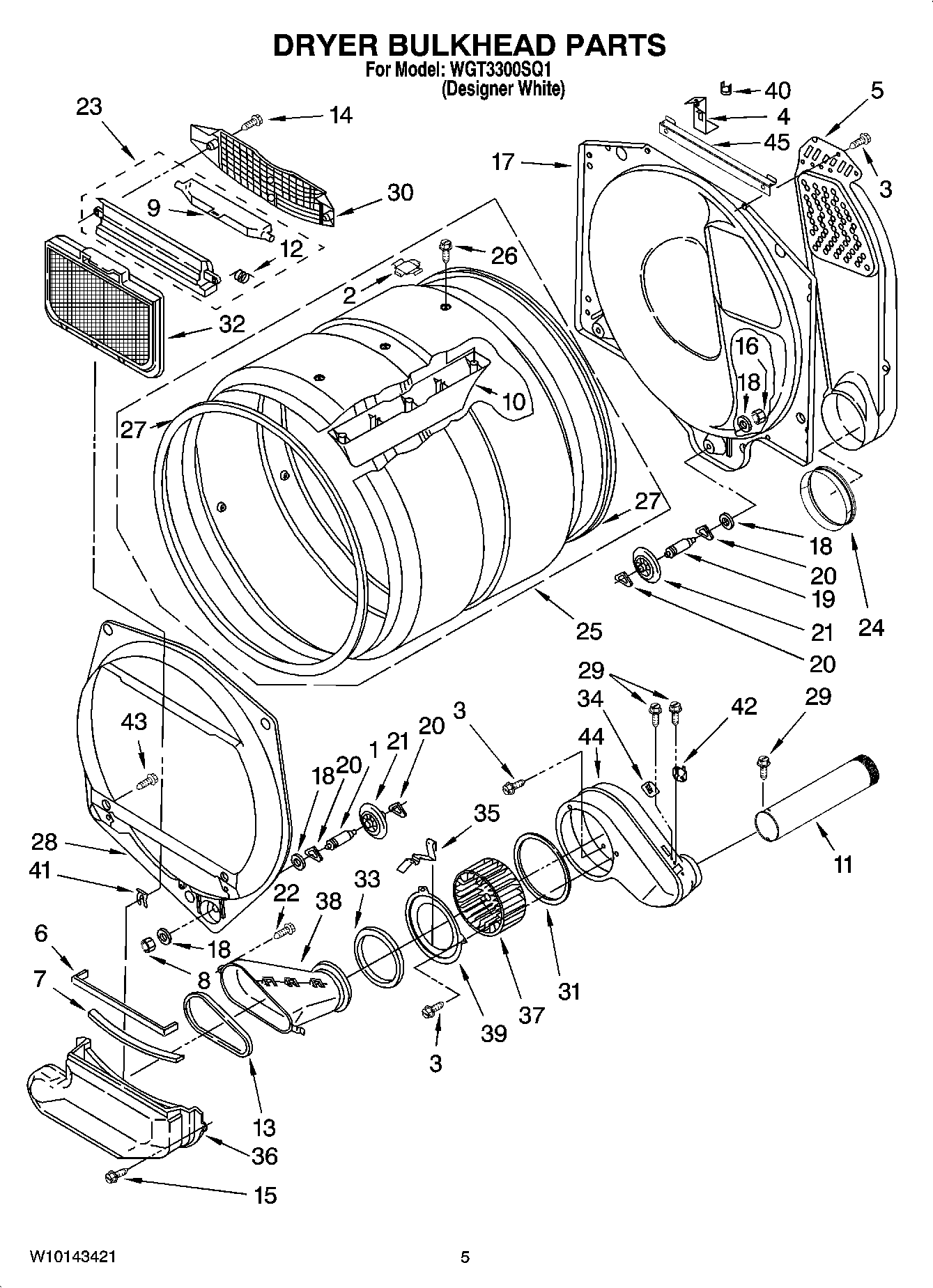

WGT3300SQ1 04 – DRYER BULKHEAD PARTS

Products

Position	Product
1	SHAFT
2	8066086 Whirlpool Plug
3	SCREW
4	3392226 Whirlpool Clip
5	W11727962 Whirlpool HVAC Air Duct
6	WP697813 Whirlpool Seal
7	WP3391906 Whirlpool Seal
8	WPW10080210 Whirlpool Nut
9	W11222846 Whirlpool Door
10	279982 Whirlpool Drum Baffle
11	WP8563748 Whirlpool Exhaust Pipe
12	WP3394986 Whirlpool Spring
13	WP697770 Whirlpool Blower Cover Plate Seal
14	WP308685 Whirlpool Microwave Screw
15	WP488729 Whirlpool Refrigerator Door Screw
16	WPW10080190 Whirlpool Nut
17	W11299300 Whirlpool Bulkhead Assembly
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
22	WP3387230 Whirlpool Screw
23	W11129408 Whirlpool Out Housing
24	WP3387911 Whirlpool Air Duct
25	W10518375 Whirlpool Drum Assembly
26	WPW10109200 Whirlpool Screw
27	280114 Whirlpool Dryer Drum Seal
28	WP697557 Whirlpool Bulkhead Assembly
29	WP90767 Whirlpool Screw
30	W11086603 Whirlpool Dryer Link Screen Air Grille
32	WP3389644 Whirlpool Screen Assembly
33	WP8566209 Whirlpool Seal
34	WP3403607 Whirlpool Thermoprotector
35	3390935 Whirlpool Clip
36	279700 Whirlpool Duct Lint
37	WP697772 Whirlpool Dryer Blower Wheel
38	279704 Whirlpool Duct Assembly
39	279780 Whirlpool Plate Cover
40	W11568973 Whirlpool Thermostat Fix
41	W11712577 Whirlpool Clip
42	WP3387134 Whirlpool Dryer Cycling Thermostat
44	WP8544363 Whirlpool Housing
45	W10118337 Whirlpool Bracket Assembly
