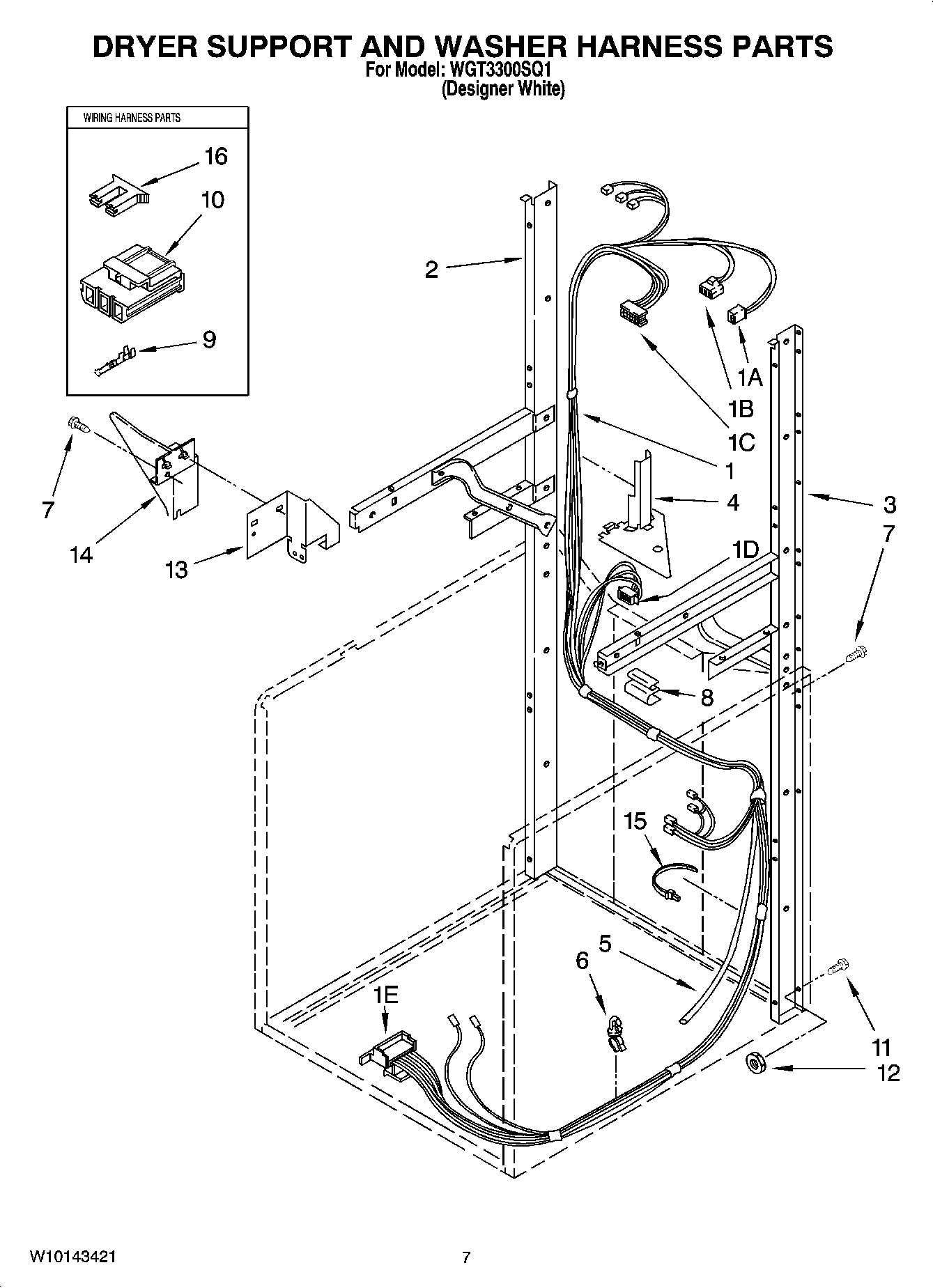

WGT3300SQ1 05 – DRYER SUPPORT AND WASHER HARNESS PARTS

Products

PositionProduct
1Harness – Washer
1DReceptacle, 3 Way
1A3350130 Whirlpool Connector
1EWP62505 Whirlpool Connector
1CW10876590 Whirlpool Connector
1BBlock, Disconnect
23388851 Whirlpool Support
33388850 Whirlpool Support
43390609 Whirlpool Shield
5W10834213 Whirlpool Hose
6Clip, Harness
7SCREW
8Protector, Harness
9WP94614 Whirlpool Terminal
9WP596797 Whirlpool Terminal
10WP3360056 Whirlpool Connector
11Bolt, 5/16-18 x 1/2
12Nut, Hex (4)
133392232 Whirlpool Shield
14Shield, Thermostat
15Tie, Cable
163354925 Whirlpool Connector
