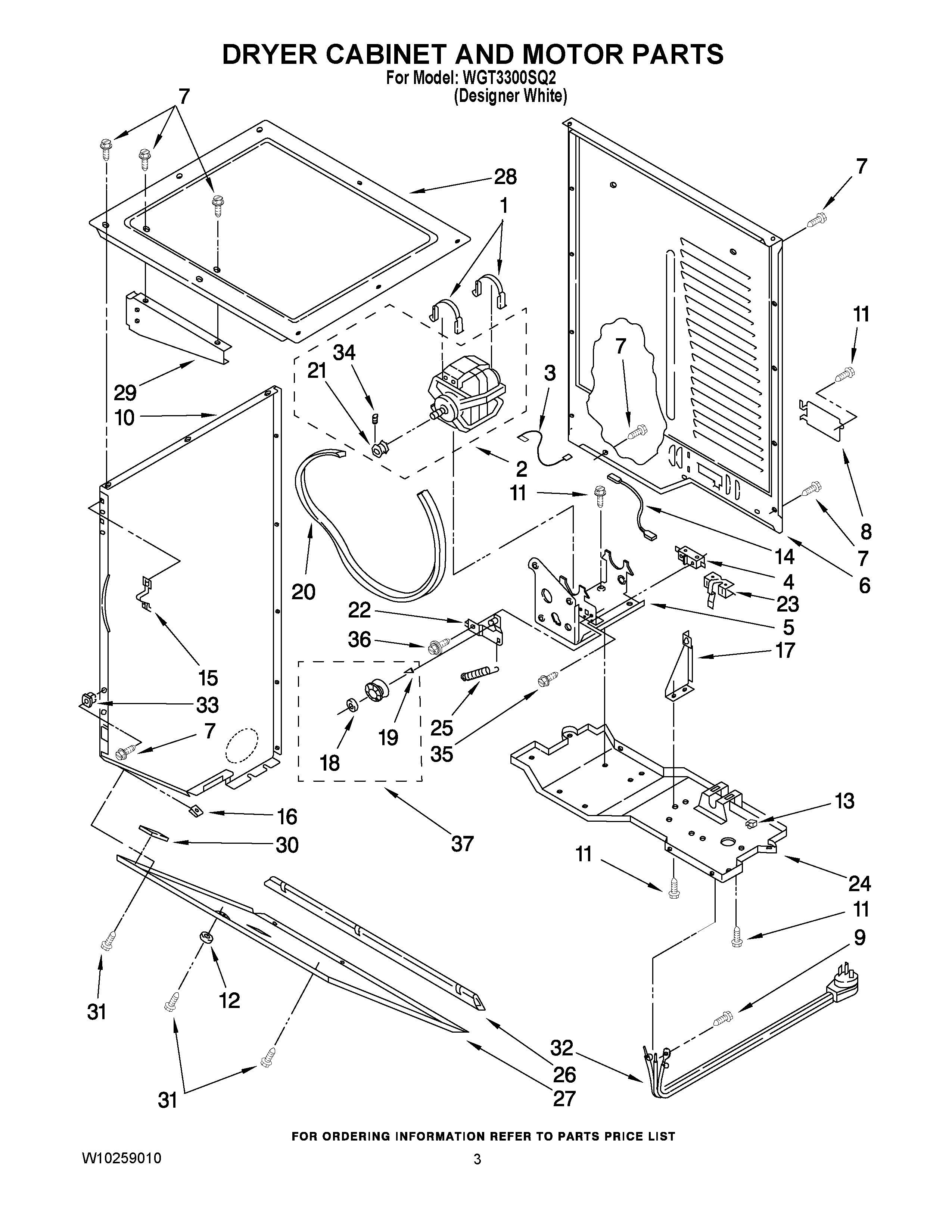

WGT3300SQ2 03 – DRYER CABINET AND MOTOR PARTS

WGT3300SQ2 03 – DRYER CABINET AND MOTOR PARTS

Written by

in

WGT3300SQ2 03 – DRYER CABINET AND MOTOR PARTS

Products

PositionProduct
1CLAMP
33398948 Whirlpool Wire
4279782 Whirlpool Lid Switch
5W11107903 Whirlpool Bracket
6Panel, Rear
7SCREW
8279814 Whirlpool Cover
9WP90767 Whirlpool Screw
103389256 Whirlpool Panel
103389264 Whirlpool Panel Assembly
11WP3390631 Whirlpool Screw
12WP3389431 Whirlpool Bumper Assembly
13Clip
14W10167612 Whirlpool Wire
153389231 Whirlpool Clip Front Panel
16WP98234 Whirlpool Nut
173391639 Whirlpool Bracket Assembly
18WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
19WPW10121334 Whirlpool Washer
20661570V Whirlpool Dryer Drum Belt
21279811 Whirlpool Dryer Drive Motor
22WPW10547294 Whirlpool Idler Pulley
23WP8066120 Whirlpool Lever Assembly
24Base, Dryer
25WPW10446781 Whirlpool Spring
263389683 Whirlpool Cover Assembly
273389272 Whirlpool Panel
28Top, Dryer
293390722 Whirlpool Shield Assembly
303389682 Whirlpool Spacer
31WP693304 Whirlpool Screw
32WPW10581952 Whirlpool Power Cord
33WP692400 Whirlpool Nut
34Pin, Roll
35WP98129 Whirlpool Screw
36WP3389420 Whirlpool Screw
37279640 Whirlpool Dryer Idler Pulley Kit
