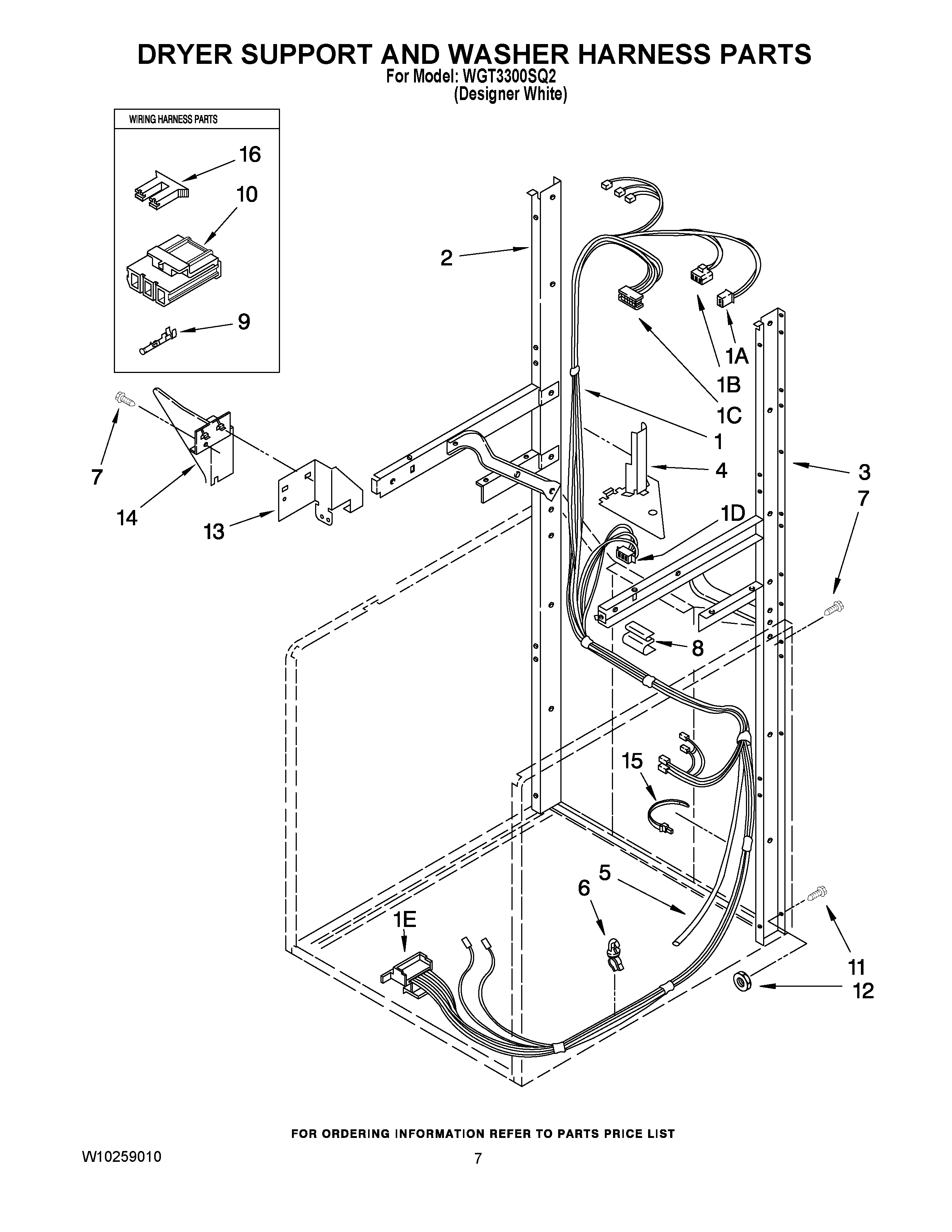

WGT3300SQ2 05 – DRYER SUPPORT AND WASHER HARNESS PARTS

WGT3300SQ2 05 – DRYER SUPPORT AND WASHER HARNESS PARTS

Written by

in

WGT3300SQ2 05 – DRYER SUPPORT AND WASHER HARNESS PARTS

Products

PositionProduct
1Harness – Washer
13350130 Whirlpool Connector
1WP62505 Whirlpool Connector
1W10876590 Whirlpool Connector
1Block, Disconnect
1Receptacle, 3 Way
23388851 Whirlpool Support
33388850 Whirlpool Support
43390609 Whirlpool Shield
5W10834213 Whirlpool Hose
6W10210799 Whirlpool Clip
7SCREW
8Protector, Harness
9WP596797 Whirlpool Terminal
9WP94614 Whirlpool Terminal
10WP3360056 Whirlpool Connector
11Bolt, 5/16-18 x 1/2
12WP8533952 Whirlpool Refrigerator Nut
133392232 Whirlpool Shield
14Shield, Thermostat
15Tie, Cable
163354925 Whirlpool Connector
