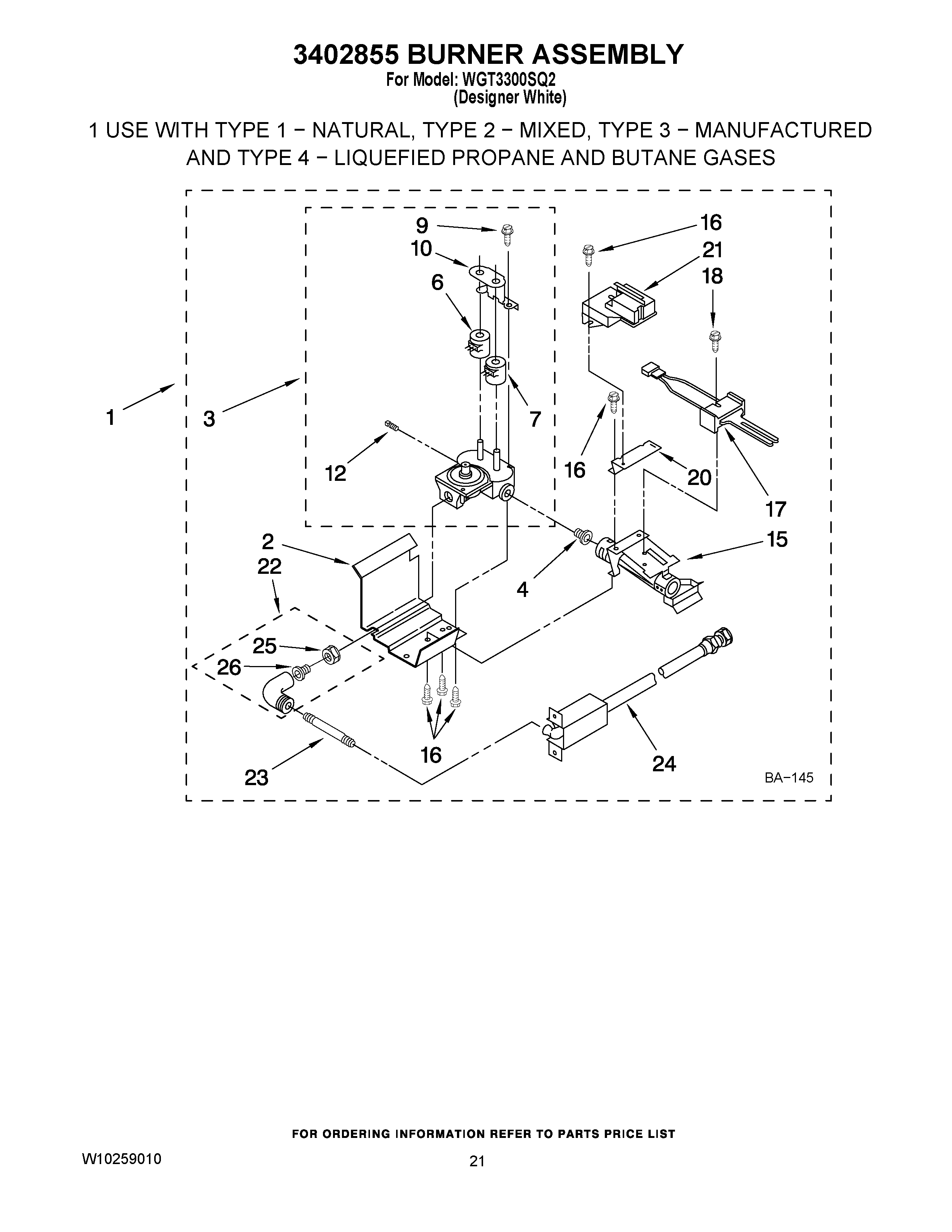

WGT3300SQ2 15 – 3402855 BURNER ASSEMBLY

WGT3300SQ2 15 – 3402855 BURNER ASSEMBLY

Written by

in

WGT3300SQ2 15 – 3402855 BURNER ASSEMBLY

Products

PositionProduct
NI3392235A Whirlpool Gas Conversion Kit
1Burner Assembly 60 Hz.
23391699 Whirlpool Base
3279889 Whirlpool Valve Assembly
4ORIFICE, NATURAL GAS
4ORIFICE, BURNER (TYPE 4 (BUTANE))
6279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
9694421 Whirlpool Screw Assembly
10694538 Whirlpool Bracket
12W10295523 Whirlpool Plug
158578392 Whirlpool Burner
16WP693995 Whirlpool Screw
17279311 Whirlpool Dryer Flat Igniter with Bracket
18WPW10366705 Whirlpool Screw
20Bracket, Sensor
21WP338906 Whirlpool Dryer Gas Sensor
223406051 Whirlpool Elbow
23Nipple, Short
24Supply Line (Gas)
25Nut, Compression
263393767 Whirlpool Pipe
