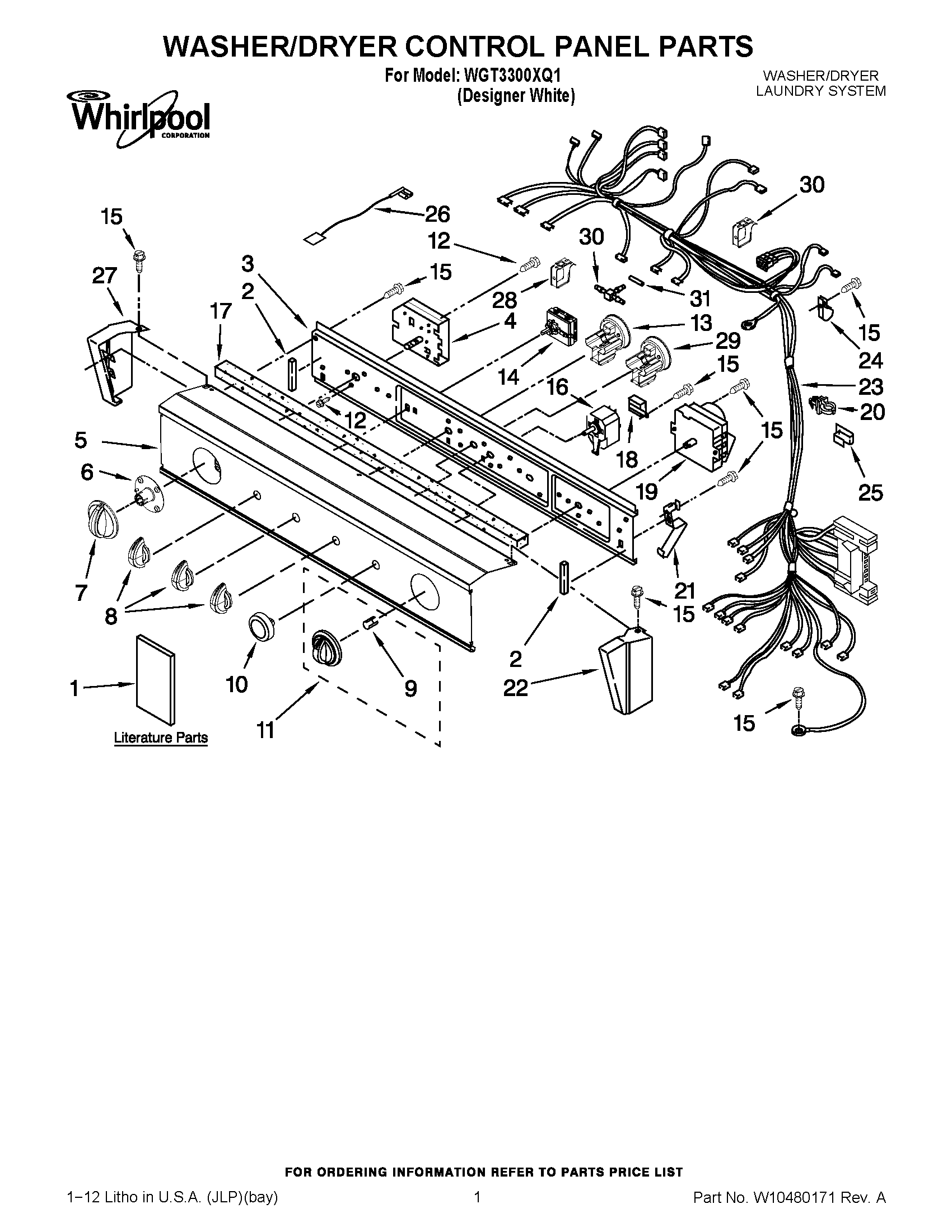

WGT3300XQ1 01 – WASHER/DRYER CONTROL PANEL PARTS

Products

Position	Product
1	INSTALLATION INSTRUCTIONS
1	USE & CARE GUIDE
1	ENERGY GUIDE
1	WIRING DIAGRAM
2	3390688 Whirlpool Bumper Assembly
3	W10732070 Whirlpool Bracket
4	WPW10113761 Whirlpool Timer
5	W10339549 Whirlpool Control Panel
6	WP8566018 Whirlpool Dial Assembly
7	Knob, Timer
8	Knob, Control
9	WP8536939 Whirlpool Spring Clip
10	WP8566073 Whirlpool Appliance Knob
11	WP8566061 Whirlpool Knob
12	W10915367 Whirlpool Screw Assembly
14	W11103599 Whirlpool Temperature Switch
15	WP90767 Whirlpool Screw
16	WP3404233 Whirlpool Dryer Starter Switch
17	8521965 Whirlpool Gasket
18	WP694419 Whirlpool Buzzer Adjuster
19	WPW10113804 Whirlpool Timer Assembly
20	2219077 Whirlpool Refrigerator Clip
21	3389453 Whirlpool Hinge Assembly
22	End Cap (RH)
23	W10139463 Whirlpool Wire Harness
24	7111P002-60 Whirlpool Clamp
25	Clip, Harness (2)
26	W10121648 Whirlpool Timer Jumper
27	End Cap (LH)
28	W10210799 Whirlpool Clip
29	W10510877 Whirlpool Washer Water Level Switch
30	Clip, Harness
31	W10368080 Whirlpool Hose Assembly
