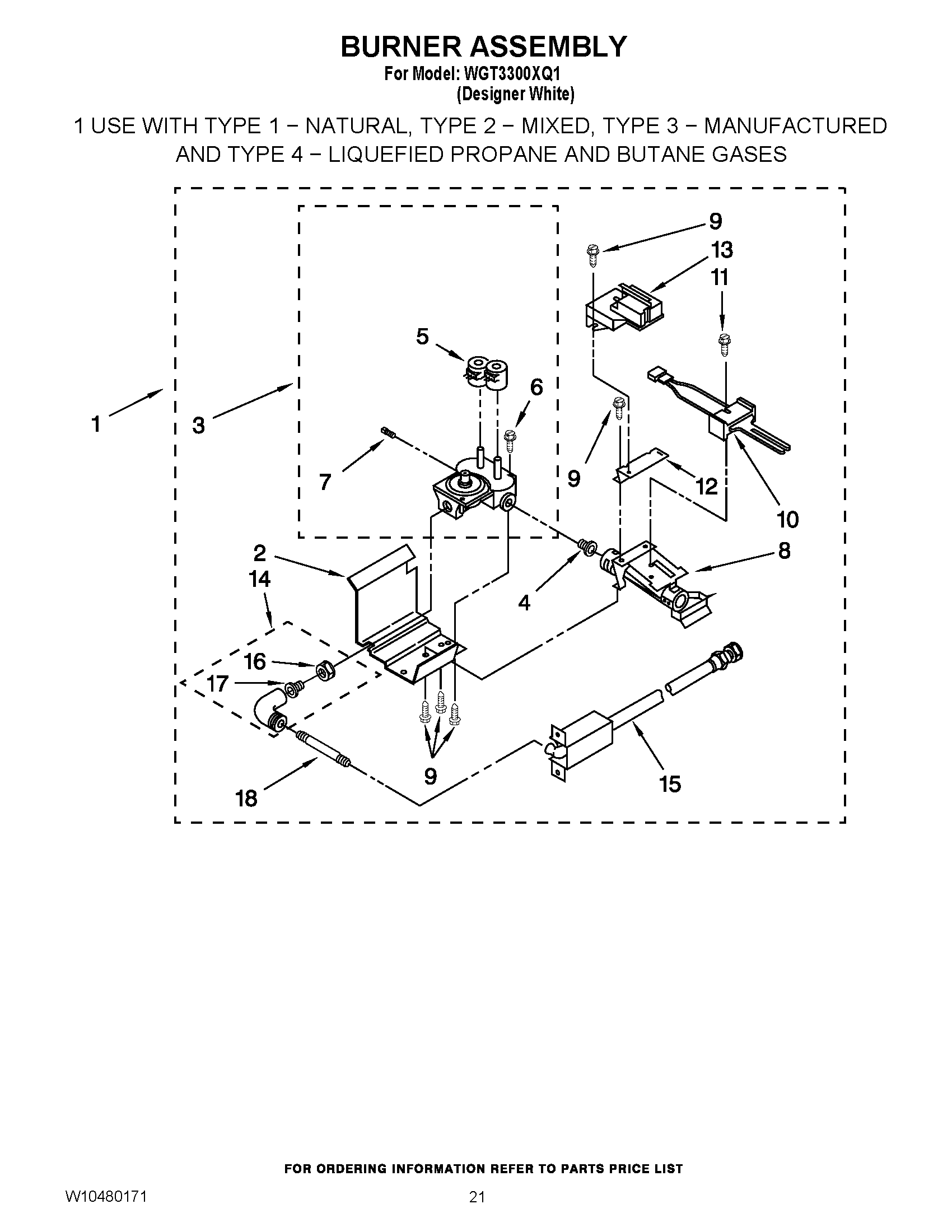

WGT3300XQ1 15 – BURNER ASSEMBLY

Products

Position	Product
NI	3392235A Whirlpool Gas Conversion Kit
1	BURNER ASSEMBLY 60 HZ.
2	3391699 Whirlpool Base
3	279889 Whirlpool Valve Assembly
4	ORIFICE, NATURAL GAS
5	WPW10368268 Whirlpool Coil Valve
6	326049536 Whirlpool Screw
7	W10295523 Whirlpool Plug
8	8578392 Whirlpool Burner
9	WP693995 Whirlpool Screw
10	279311 Whirlpool Dryer Flat Igniter with Bracket
11	WPW10366705 Whirlpool Screw
12	Bracket, Sensor
13	WP338906 Whirlpool Dryer Gas Sensor
14	3406051 Whirlpool Elbow
15	Supply Line (Gas)
16	Nut, Compression
17	3393767 Whirlpool Pipe
18	PIPE, SUPPLY
