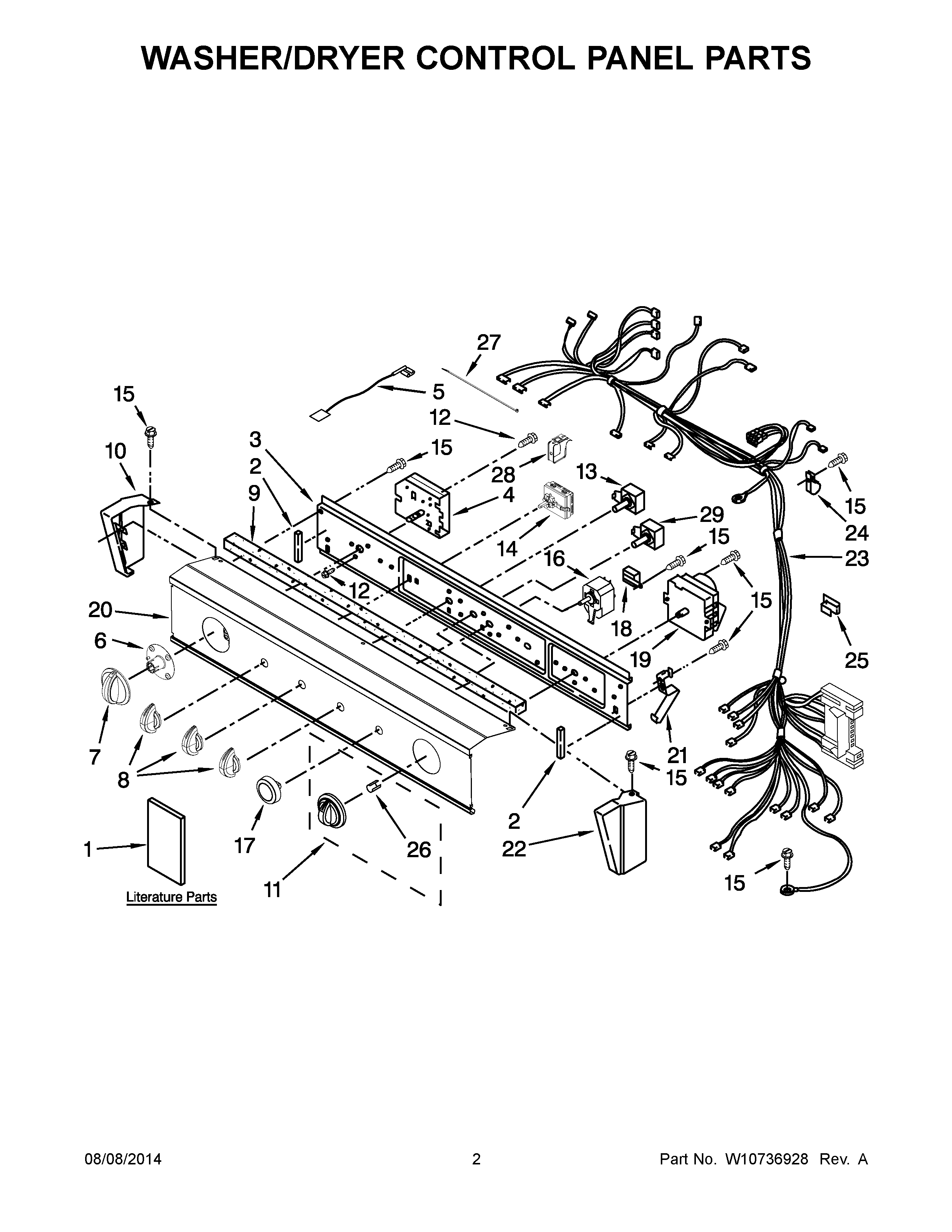

WGT3300XQ3 02 – WASHER/DRYER CONTROL PANEL PARTS

Products

Position	Product
1C	ENERGY GUIDE
1B	WIRING DIAGRAM
1	INSTALLATION INSTRUCTIONS
1A	USE & CARE GUIDE
2	3390688 Whirlpool Bumper Assembly
3	W10732070 Whirlpool Bracket
4	WPW10113804 Whirlpool Timer Assembly
5	W10121648 Whirlpool Timer Jumper
6	WP8566018 Whirlpool Dial Assembly
7	Knob, Timer
8	Knob, Control
9	8521965 Whirlpool Gasket
10	End Cap (LH)
11	WP8566061 Whirlpool Knob
12	W10915367 Whirlpool Screw Assembly
13	WPW10544357 Whirlpool Cycle Switch
14	W11103599 Whirlpool Temperature Switch
15	WP90767 Whirlpool Screw
16	WP3404233 Whirlpool Dryer Starter Switch
17	WP8566073 Whirlpool Appliance Knob
18	WP694419 Whirlpool Buzzer Adjuster
19	W10854240 Whirlpool Laundry Center Dryer Timer
20	W10339549 Whirlpool Control Panel
21	3389453 Whirlpool Hinge Assembly
22	End Cap (RH)
23	HARNESS, DRYER
24	7111P002-60 Whirlpool Clamp
25	Clip, Harness (2)
26	WP8536939 Whirlpool Spring Clip
27	WPW10334336 Whirlpool Tie Wire
28	W10210799 Whirlpool Clip
29	W10851055 Whirlpool Cycle Switch
