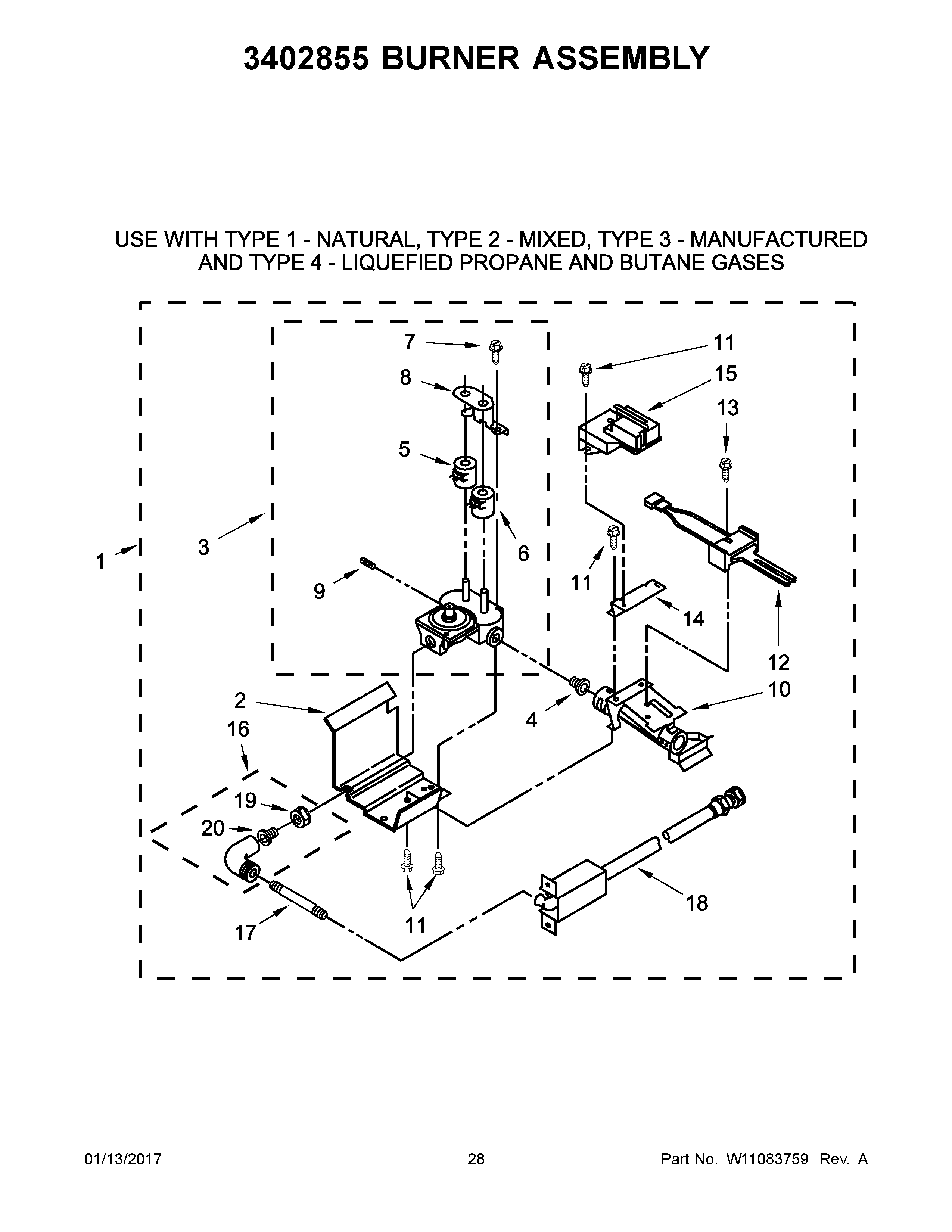

WGT4027EW1 15 – 3402855 BURNER ASSEMBLY

WGT4027EW1 15 – 3402855 BURNER ASSEMBLY

Written by

in

WGT4027EW1 15 – 3402855 BURNER ASSEMBLY

Products

PositionProduct
1BURNER ASSEMBLY (COMPLETE) (60 HZ.)
23391699 Whirlpool Base
3279889 Whirlpool Valve Assembly
4ORIFICE, NATURAL GAS
4AORIFICE, BURNER (TYPE 4 (BUTANE))
5279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
7694421 Whirlpool Screw Assembly
8694538 Whirlpool Bracket
9W10295523 Whirlpool Plug
108578392 Whirlpool Burner
11WP693995 Whirlpool Screw
12279311 Whirlpool Dryer Flat Igniter with Bracket
13WPW10366705 Whirlpool Screw
14Bracket, Sensor
15WP338906 Whirlpool Dryer Gas Sensor
163406051 Whirlpool Elbow
17PIPE, SUPPLY
18Supply Line (Gas)
19Nut, Compression
203393767 Whirlpool Pipe
