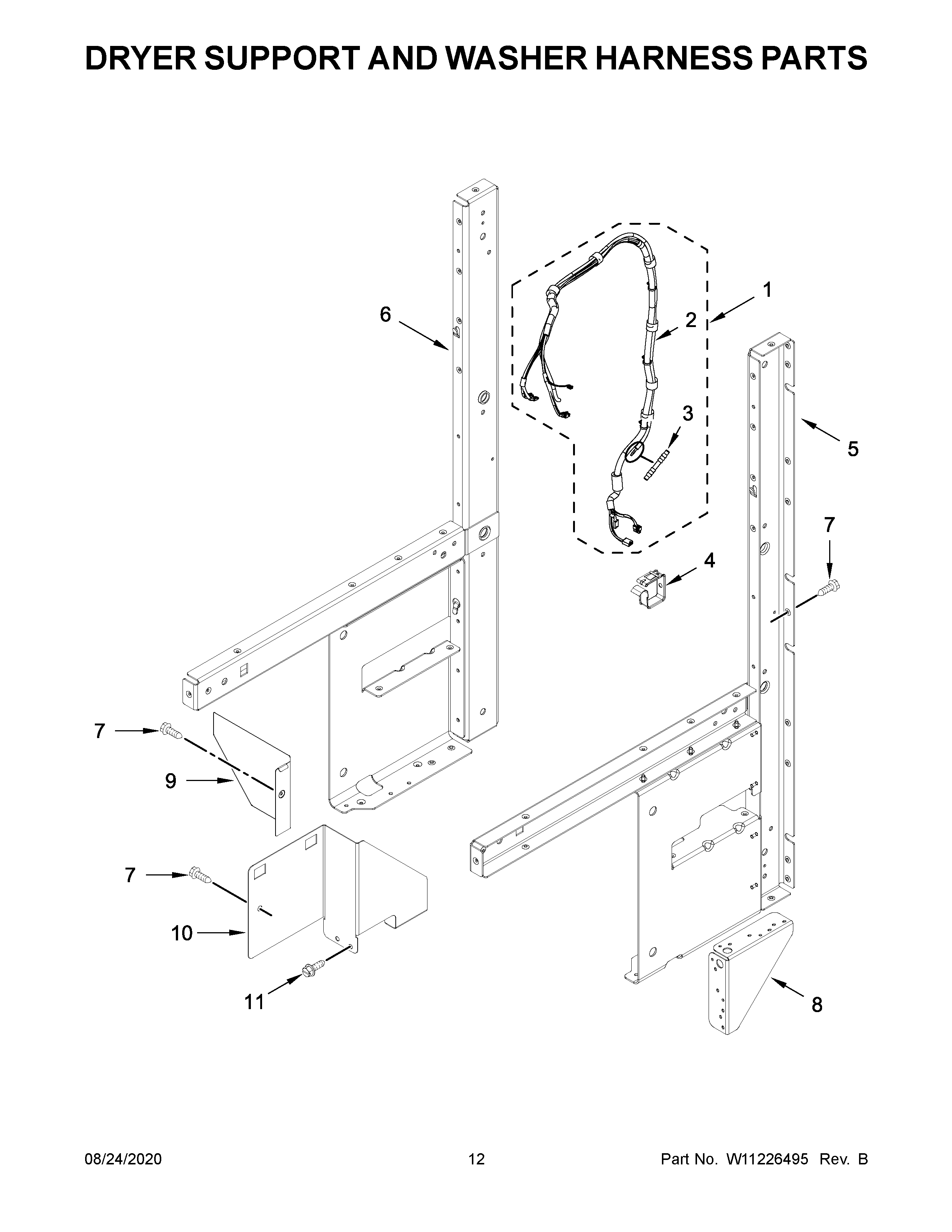

WGT4027HW0 07 – DRYER SUPPORT AND WASHER HARNESS PARTS

Written by

Products

Position	Product
1	W11662155 Whirlpool Wire Harness
2	W11230133 Whirlpool Hose Assembly
3	COUPLING, PRESSURE HOSE
4	W10210799 Whirlpool Clip
5	W11026515 Whirlpool Bracket
6	W11026516 Whirlpool Bracket Assembly
7	SCREW
8	W11561937 Whirlpool Bracket
9	SHIELD, THERMOSTAT
10	W11108667 Whirlpool Shield
11	WP308685 Whirlpool Microwave Screw
