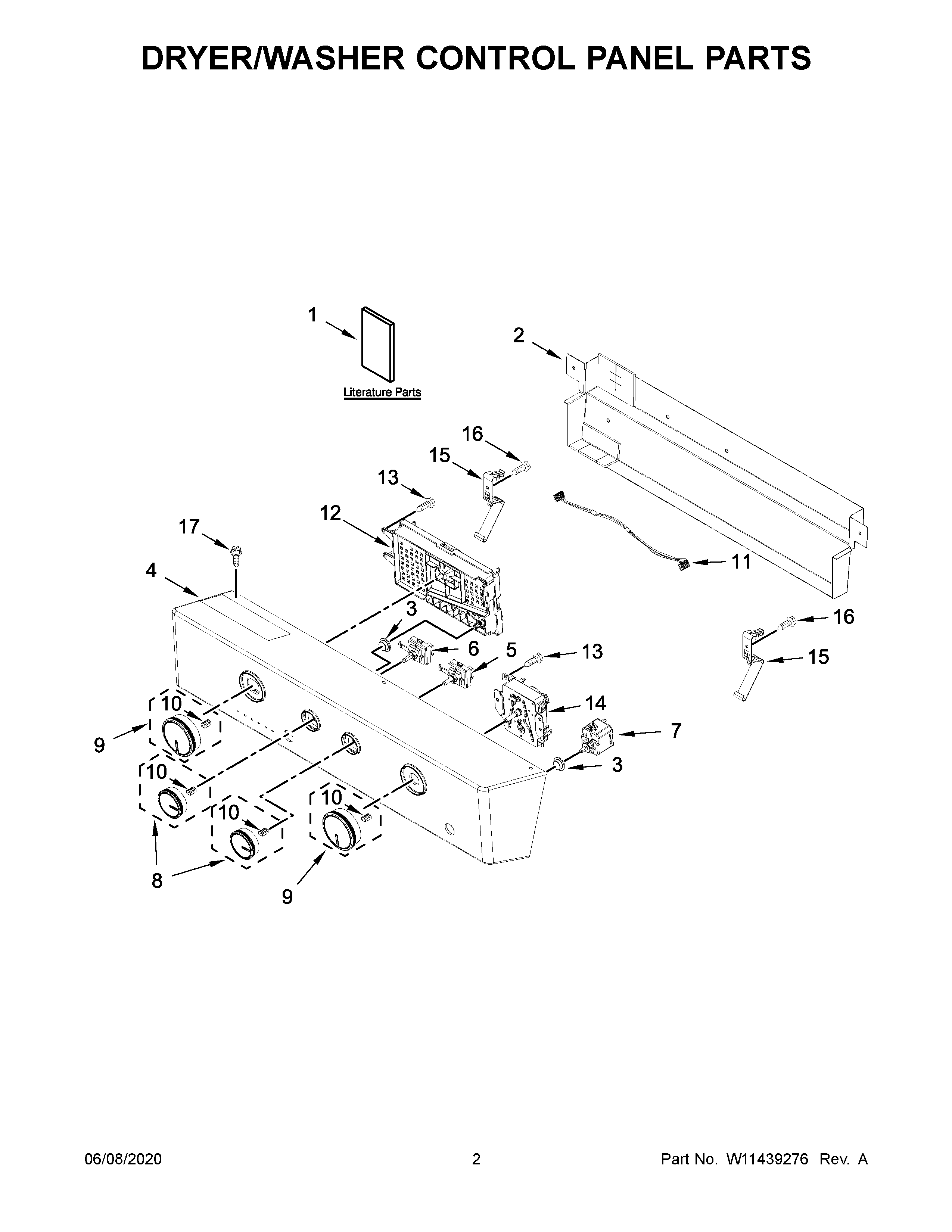

WGT4027HW1 02 – DRYER/WASHER CONTROL PANEL PARTS

Products

PositionProduct
1DINSTALLATION INSTRUCTIONS
1CENERGY GUIDE
1BWIRING DIAGRAM
1ATECH SHEET
1USE AND CARE GUIDE
2W11040441 Whirlpool Bracket
3W11049351 Whirlpool Button
4W11367045 Whirlpool Control Panel
5W10859568 Whirlpool Cycle Switch
6W11168256 Whirlpool Cycle Switch
7WPW10420741 Whirlpool Dryer Start Switch
9W10756270 Whirlpool Dryer Timer Knob
10WP688805 Whirlpool Spring Clip
11W10694669 Whirlpool Wire Harness
12W11629601-includeCORE Whirlpool W11629601 Washer Electronic Control Board + Core
13WP90767 Whirlpool Screw
14W10854240 Whirlpool Laundry Center Dryer Timer
153389453 Whirlpool Hinge Assembly
16WP9740848 Whirlpool Dishwasher Screw
17W11590579 Whirlpool Screw
