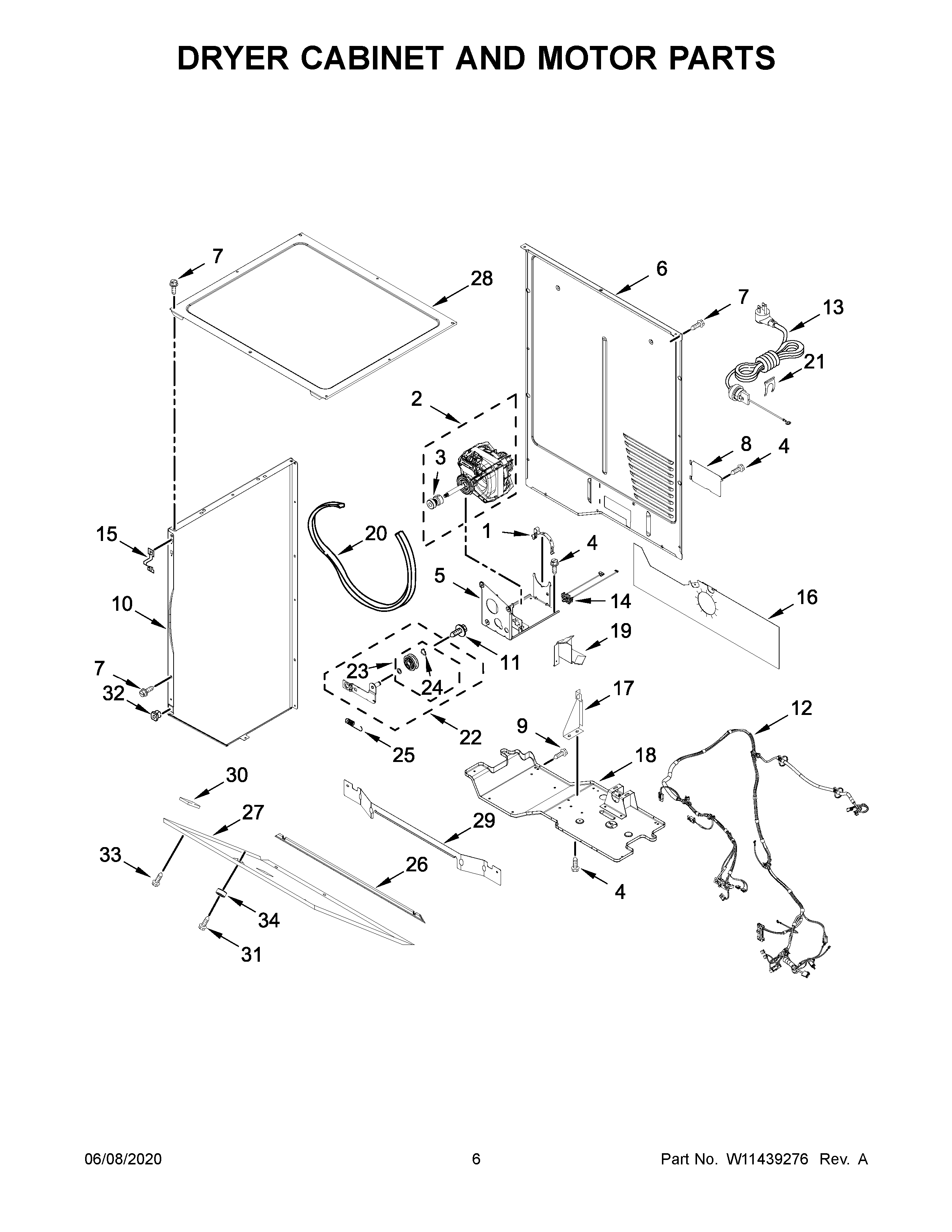

WGT4027HW1 04 – DRYER CABINET AND MOTOR PARTS

Products

Position	Product
1	CLAMP
3	279811 Whirlpool Dryer Drive Motor
4	WP3390631 Whirlpool Screw
5	W11107903 Whirlpool Bracket
6	W10892491 Whirlpool Rear Panel
7	SCREW
8	BRACKET, TERMINAL BLOCK
9	W10850756 Whirlpool Screw
10A	PANEL, SIDE (WHITE (RIGHT HAND))
10	W11043388 Whirlpool Panel
11	WP3389420 Whirlpool Screw
12	W11678911 Whirlpool Wire Harness
13	WPW10581952 Whirlpool Power Cord
14	WPW10411937 Whirlpool Switch
15	3389231 Whirlpool Clip Front Panel
16	PANEL, BACK ASSEMBLY
17	BRACKET, BULKHEAD
18	BASE, DRYER
19	BRACKET, ROLLER ASSEMBLY
20	661570V Whirlpool Dryer Drum Belt
21	W11712577 Whirlpool Clip
22	WPW10547294 Whirlpool Idler Pulley
23	279640 Whirlpool Dryer Idler Pulley Kit
24	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
25	WPW10446781 Whirlpool Spring
26	COVER, TRANSITION PANEL (WHITE)
27	3389272 Whirlpool Panel
28	TOP, DRYER (ASSEMBLY)
29	BRACKET
30	3389682 Whirlpool Spacer
31	8281191 Whirlpool Oven Screw
32	WP692400 Whirlpool Nut
33	WP693304 Whirlpool Screw
34	W11028744 Whirlpool Latch
