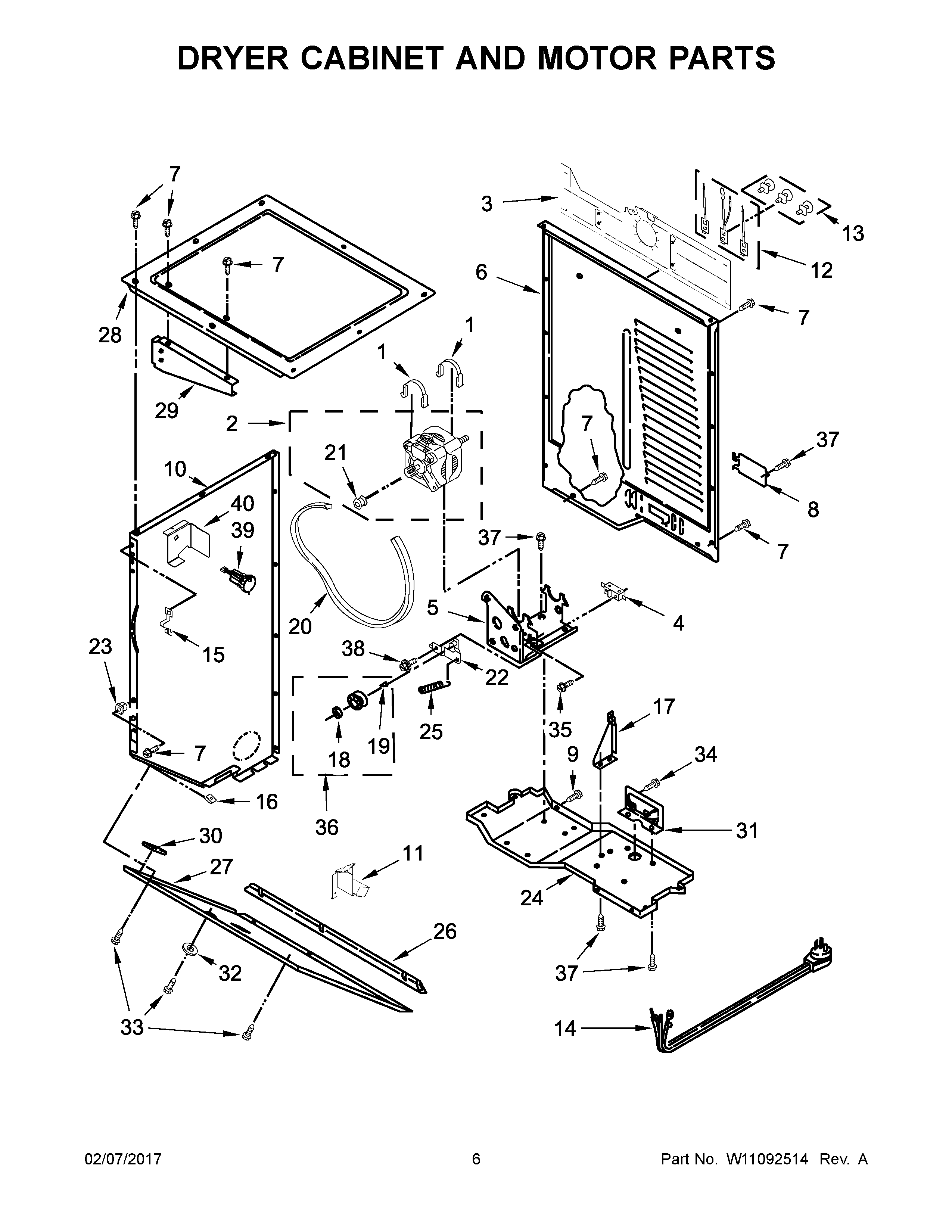

WGTLV27FW0 04 – DRYER CABINET AND MOTOR PARTS

Products

Position	Product
1	CLAMP
2	W11094983 Whirlpool Drive Motor
3	PANEL, BACK ASSEMBLY
4	W11092677 Whirlpool Switch
5	W10803218 Whirlpool Bracket Assembly
6	W10892491 Whirlpool Rear Panel
7	SCREW
8	279814 Whirlpool Cover
9	W10850756 Whirlpool Screw
10	3389264 Whirlpool Panel Assembly
10A	3389256 Whirlpool Panel
11	BRACKET, ROLLER ASSEMBLY
12	279318 Whirlpool Terminal
13	279393 Whirlpool Terminal Block Screw and Nut Kit
14	WPW10581952 Whirlpool Power Cord
15	3389231 Whirlpool Clip Front Panel
16	WP98234 Whirlpool Nut
17	3391639 Whirlpool Bracket Assembly
18	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
19	WPW10121334 Whirlpool Washer
20	341241 Whirlpool Dryer Drum Belt
21	W10918858 Whirlpool Motor Pulley
22	BRACKET, IDLER
23	WP692400 Whirlpool Nut
24	BASE, DRYER
25	WPW10446781 Whirlpool Spring
26	3389683 Whirlpool Cover Assembly
27	3389272 Whirlpool Panel
29	3390722 Whirlpool Shield Assembly
30	3389682 Whirlpool Spacer
31	BRACKET, TERMINAL BLOCK
32	WP3389431 Whirlpool Bumper Assembly
33	WP693304 Whirlpool Screw
34	WP273556 Whirlpool Screw
35	3350424 Whirlpool Screw
36	279640 Whirlpool Dryer Idler Pulley Kit
37	WP3390631 Whirlpool Screw
38	WP3389420 Whirlpool Screw
39	W11129441 Whirlpool Washer Water Level Switch
40	BRACKET, PRESSURE SWITCH
