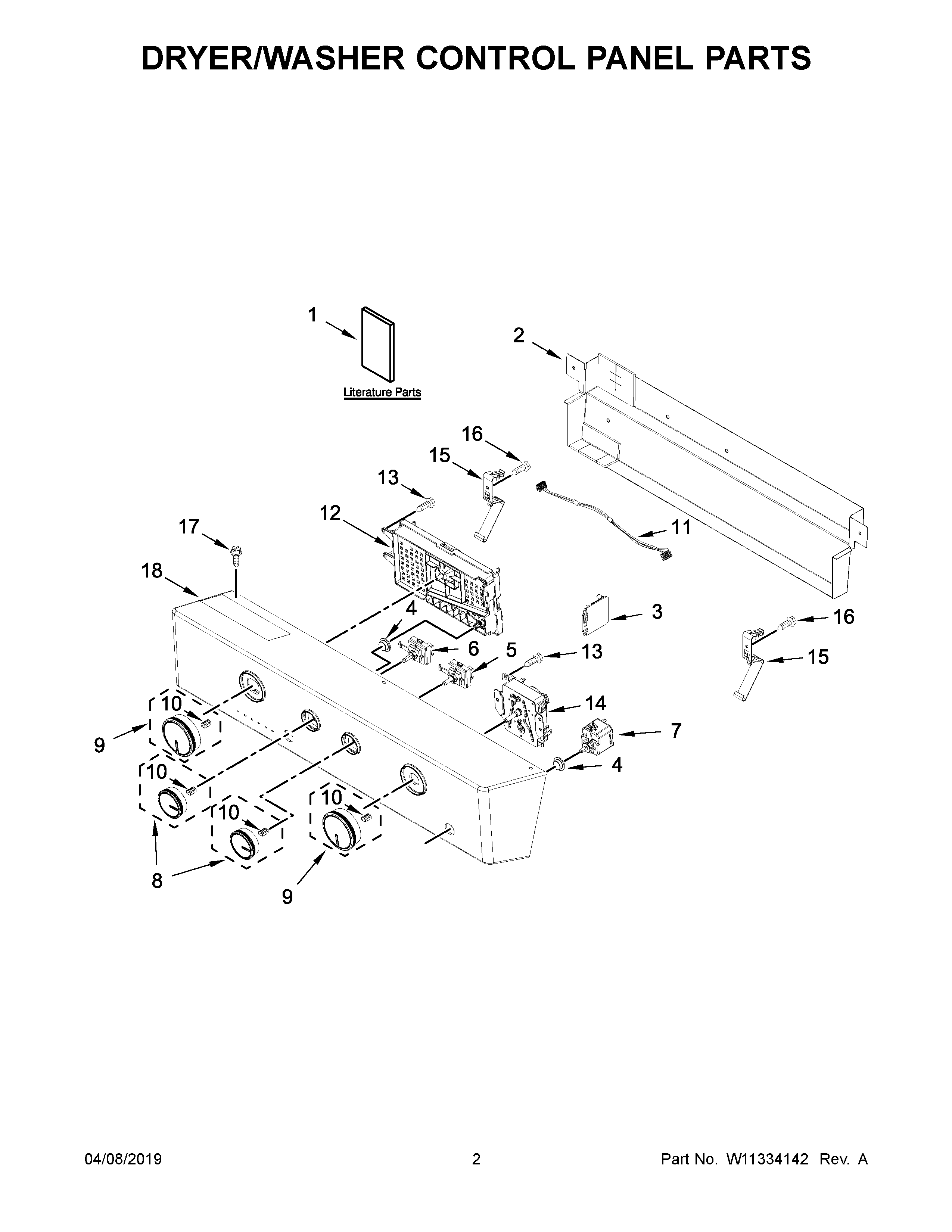

WGTLV27HW1 02 – DRYER/WASHER CONTROL PANEL PARTS

Products

PositionProduct
1ATECH SHEET
1USE AND CARE GUIDE
1BWIRING DIAGRAM
1CENERGY GUIDE
2W11040441 Whirlpool Bracket
3WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
4W11049351 Whirlpool Button
5W10859568 Whirlpool Cycle Switch
6W11168256 Whirlpool Cycle Switch
7WPW10563095 Whirlpool Relay Assembly
9W10756270 Whirlpool Dryer Timer Knob
10WP688805 Whirlpool Spring Clip
11W10694669 Whirlpool Wire Harness
12W11629601-includeCORE Whirlpool W11629601 Washer Electronic Control Board + Core
13WP90767 Whirlpool Screw
14W11409801 Whirlpool Timer
153389453 Whirlpool Hinge Assembly
16WP9740848 Whirlpool Dishwasher Screw
17W11590579 Whirlpool Screw
18W11364933 Whirlpool Dishwasher Control Panel
