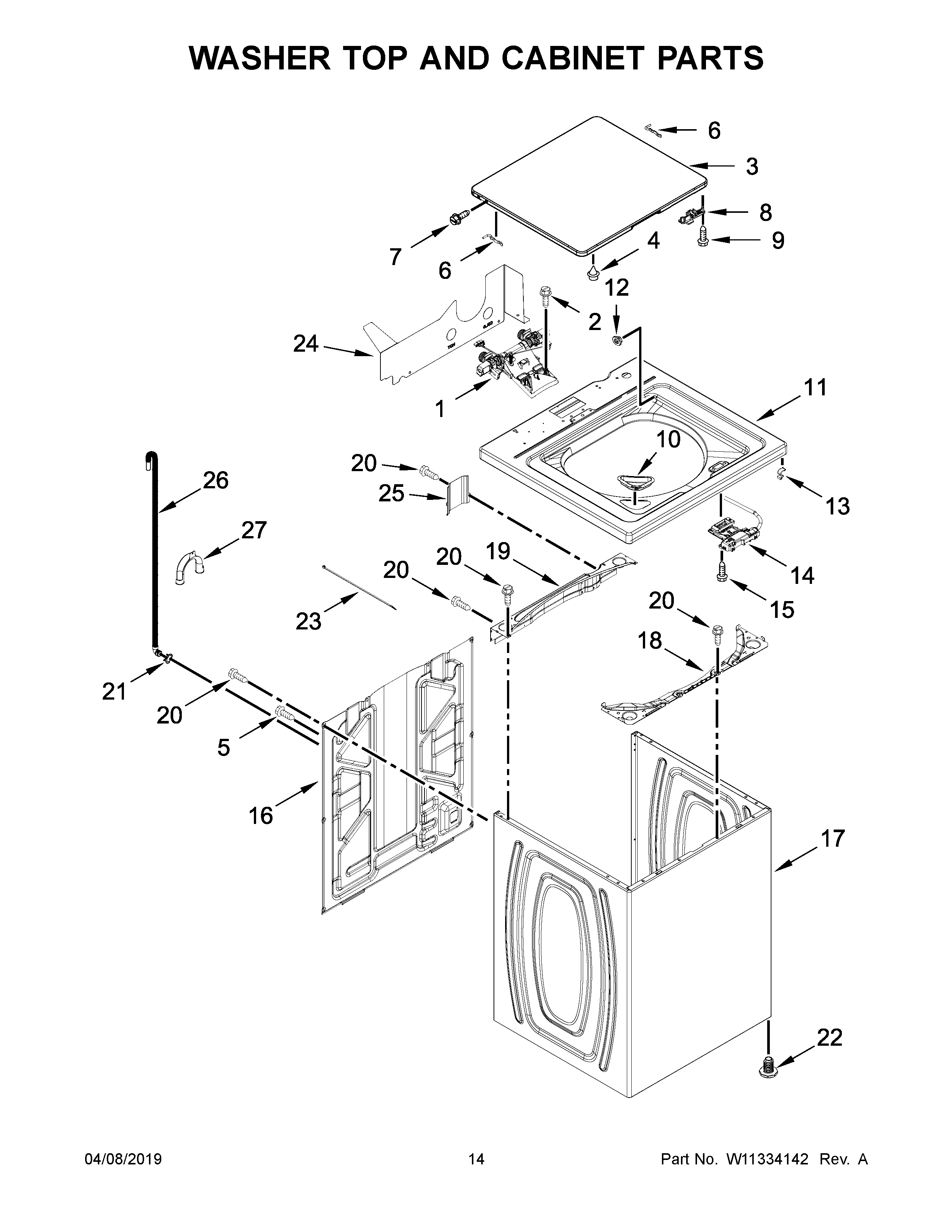

WGTLV27HW1 08 – WASHER TOP AND CABINET PARTS

Products

Position	Product
1	VALVE
2	WPW10213953 Whirlpool Screw
3	W10860912 Whirlpool Lid
4	WP9724509 Whirlpool Bumper
5	WP9740848 Whirlpool Dishwasher Screw
6	WP91770 Whirlpool Hinge
7	SCREW
8	W10837741 Whirlpool Washer Lid Strike
9	WPW10273971 Whirlpool Screw
10	WPW10192089 Whirlpool Washer Bleach Dispenser
11	W11176111 Whirlpool Top
12	WP21258 Whirlpool Washer Lid Hinge Bearing
13	WP90016 Whirlpool Clip
14	LATCH
15	W11568617 Whirlpool Screw
16	W11486091 Whirlpool Rear Panel
17	W10596395 Whirlpool Cabinet
18	W11695476 Whirlpool Brace Support
19	W11712680 Whirlpool Commercial Part Brace
20	W11685943 Whirlpool Screw
21	WP356138 Whirlpool Hose Clamp
22	W11735636 Whirlpool Leveling Feet
23	WPW10339879 Whirlpool Wire Tie
24	HARNESS COVER, REAR INLET
25	W10676061 Whirlpool Cover Assembly
26	W11281268 Whirlpool Hose
27	WPW10280024 Whirlpool Retainer
