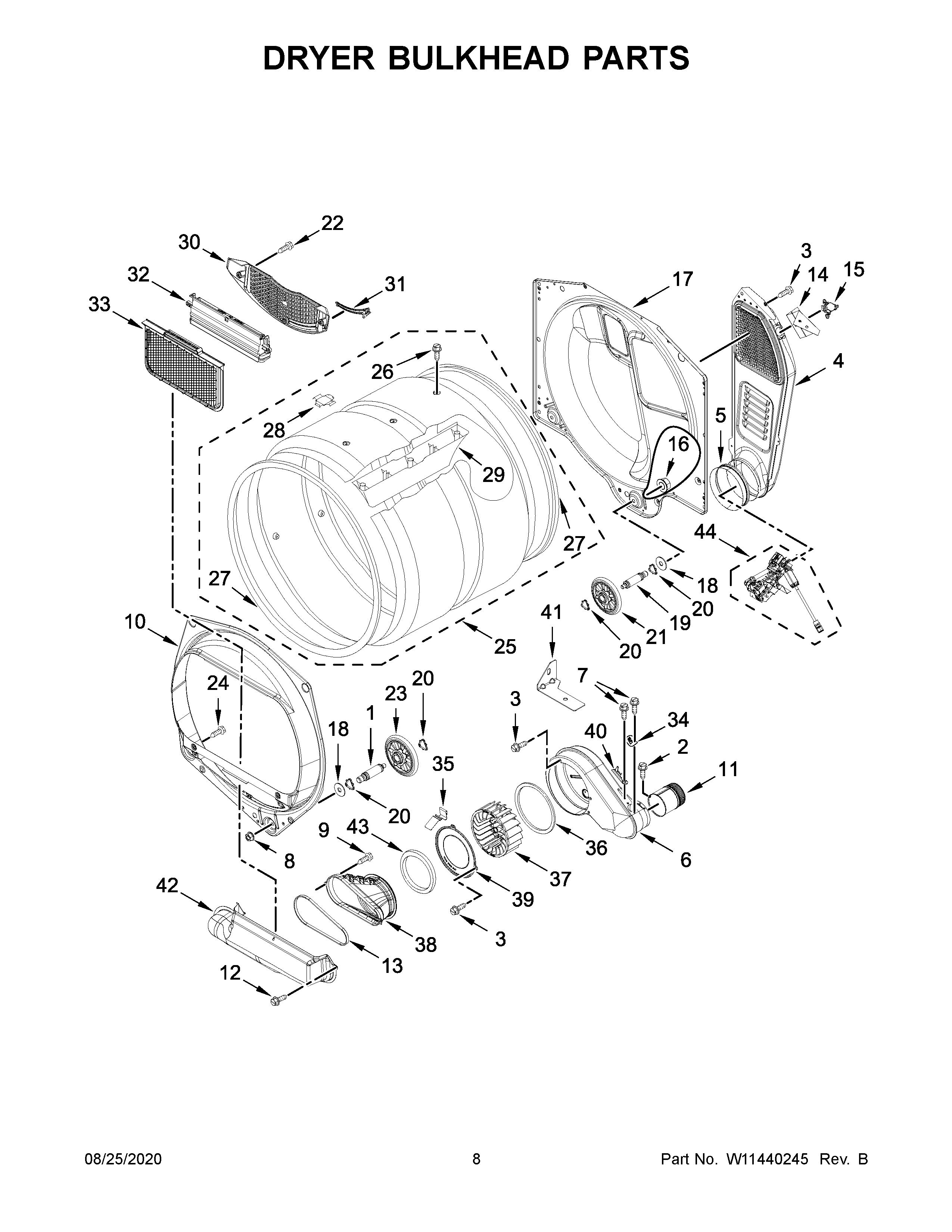

WGTLV27HW2 05 – DRYER BULKHEAD PARTS

Products

Position	Product
1	SHAFT
2	WP90767 Whirlpool Screw
3	SCREW
4	W11727962 Whirlpool HVAC Air Duct
5	WP3387911 Whirlpool Air Duct
6	W10888146 Whirlpool Housing
7	WP693995 Whirlpool Screw
8	WPW10080210 Whirlpool Nut
9	WP3387230 Whirlpool Screw
10	WP697557 Whirlpool Bulkhead Assembly
11	WP8563748 Whirlpool Exhaust Pipe
12	WP488729 Whirlpool Refrigerator Door Screw
13	WP697770 Whirlpool Blower Cover Plate Seal
14	3392226 Whirlpool Clip
15	W11568973 Whirlpool Thermostat Fix
16	WPW10080190 Whirlpool Nut
17	W11299300 Whirlpool Bulkhead Assembly
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	349241T Whirlpool Dryer Drum Support Roller Kit
22	WP308685 Whirlpool Microwave Screw
23	WPW10314173 Whirlpool Dryer Drum Support Wheel
25	W10518375 Whirlpool Drum Assembly
26	W10853898 Whirlpool Screw
27	W11229602 Whirlpool Seal
28	8066086 Whirlpool Plug
29	279982 Whirlpool Drum Baffle
30	W11086603 Whirlpool Dryer Link Screen Air Grille
31	WP3387223 Whirlpool Electrode Assembly
32	W11129408 Whirlpool Out Housing
33	WP3389644 Whirlpool Screen Assembly
34	WP3387134 Whirlpool Dryer Cycling Thermostat
35	3390935 Whirlpool Clip
37	WHEEL
38	279704 Whirlpool Duct Assembly
39	279780 Whirlpool Plate Cover
40	WP3392519 Whirlpool Dryer Thermal Fuse
41	W10878109 Whirlpool Bracket
42	279700 Whirlpool Duct Lint
43	WP8566209 Whirlpool Seal
44	BURNER ASSEMBLY (COMPLETE)(60 HZ.)
