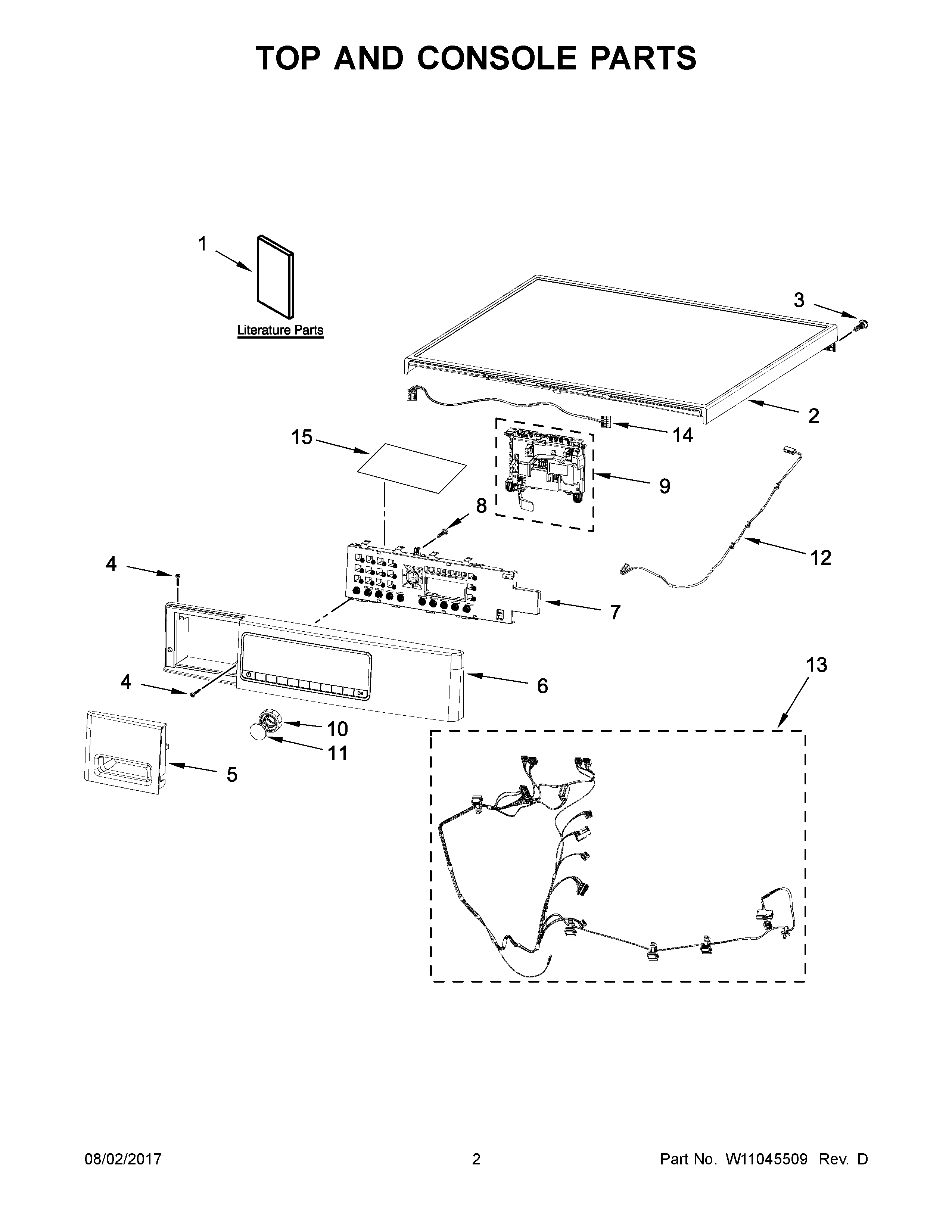

WHD3090GW0 02 – TOP AND CONSOLE PARTS

WHD3090GW0 02 – TOP AND CONSOLE PARTS

Written by

in

WHD3090GW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1USE AND CARE – INSTALLATION GUIDE
1AQUICK START GUIDE
2TOP (WHITE)
3SCREW
4251925600056 Whirlpool Screw
5HANDLE, DRAWER (WHITE)
6W11089033 Whirlpool Console
7W11089031-includeCORE Whirlpool W11089031 Electronic Control Board + Core
8251921305003 Whirlpool Screw
9W11239098 Whirlpool Electronic Control Board + Core
10W10681351 Whirlpool Knob
11W10869886 Whirlpool Knob
12W10863065 Whirlpool Wire Harness
13HARNESS, MAIN
14W10861581 Whirlpool Wire Harness
15SHIELD, UI (FOIL)
