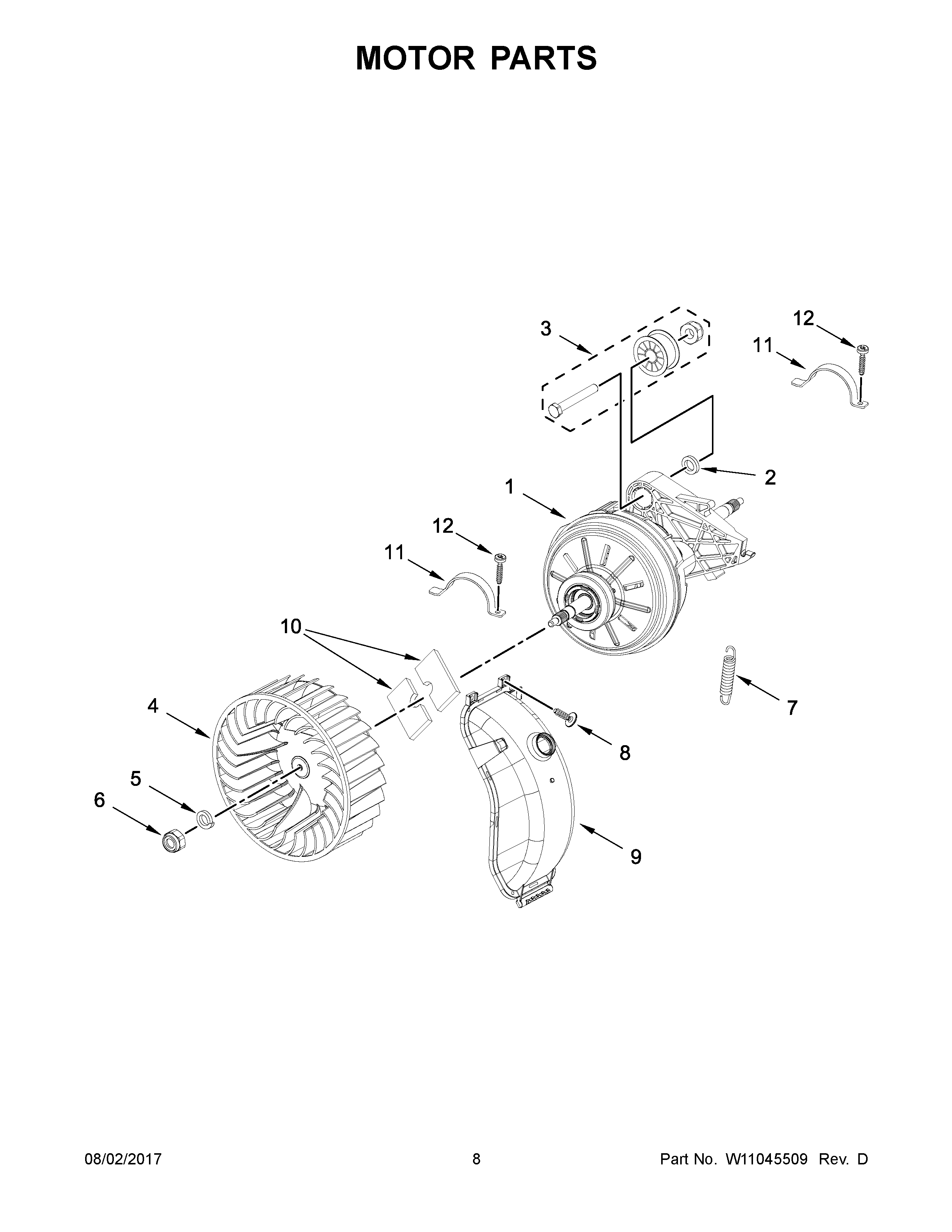

WHD3090GW0 05 – MOTOR PARTS

WHD3090GW0 05 – MOTOR PARTS

Written by

in

WHD3090GW0 05 – MOTOR PARTS

Products

PositionProduct
1W11088562 Whirlpool Drive Motor
2W10629389 Whirlpool Washer
3W10700903 Whirlpool Idler Pulley
4W11086538 Whirlpool Wheel
5251960079006 Whirlpool Lockwasher
6251950002001 Whirlpool Nut
7461970111021 Whirlpool Spring
8251920100121 Whirlpool Screw
9W10645484 Whirlpool Cover
10SEAL, MOTOR TO BLOWER
11BRACKET, MOTOR
12251925600056 Whirlpool Screw
