WHD5090GW0 02 – TOP AND CONSOLE PARTS
Written by
in

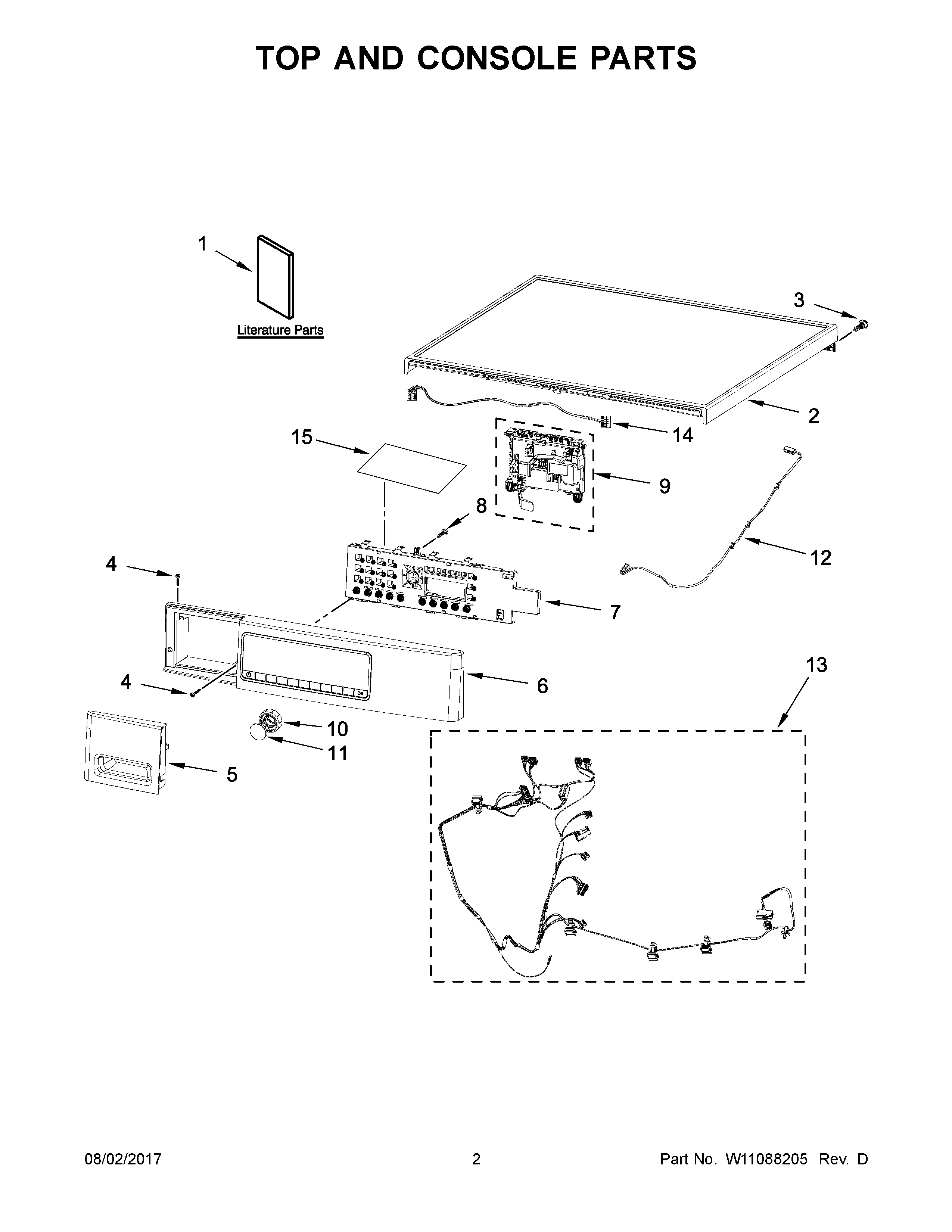

WHD5090GW0 02 – TOP AND CONSOLE PARTS
Products
Position
Product
1
USE AND CARE – INSTALLATION GUIDE
1A
QUICK START GUIDE
2
TOP (WHITE)
3
SCREW
4
251925600056 Whirlpool Screw
5
HANDLE, DRAWER (WHITE)
6
W11091538 Whirlpool Console
7
W11089031-includeCORE Whirlpool W11089031 Electronic Control Board + Core
8
251921305003 Whirlpool Screw
9
W11239098 Whirlpool Electronic Control Board + Core
10
W10681353 Whirlpool Knob
11
W10869886 Whirlpool Knob
12
W10863065 Whirlpool Wire Harness
13
HARNESS, MAIN
14
W10861581 Whirlpool Wire Harness
15
SHIELD, UI (FOIL)
←
