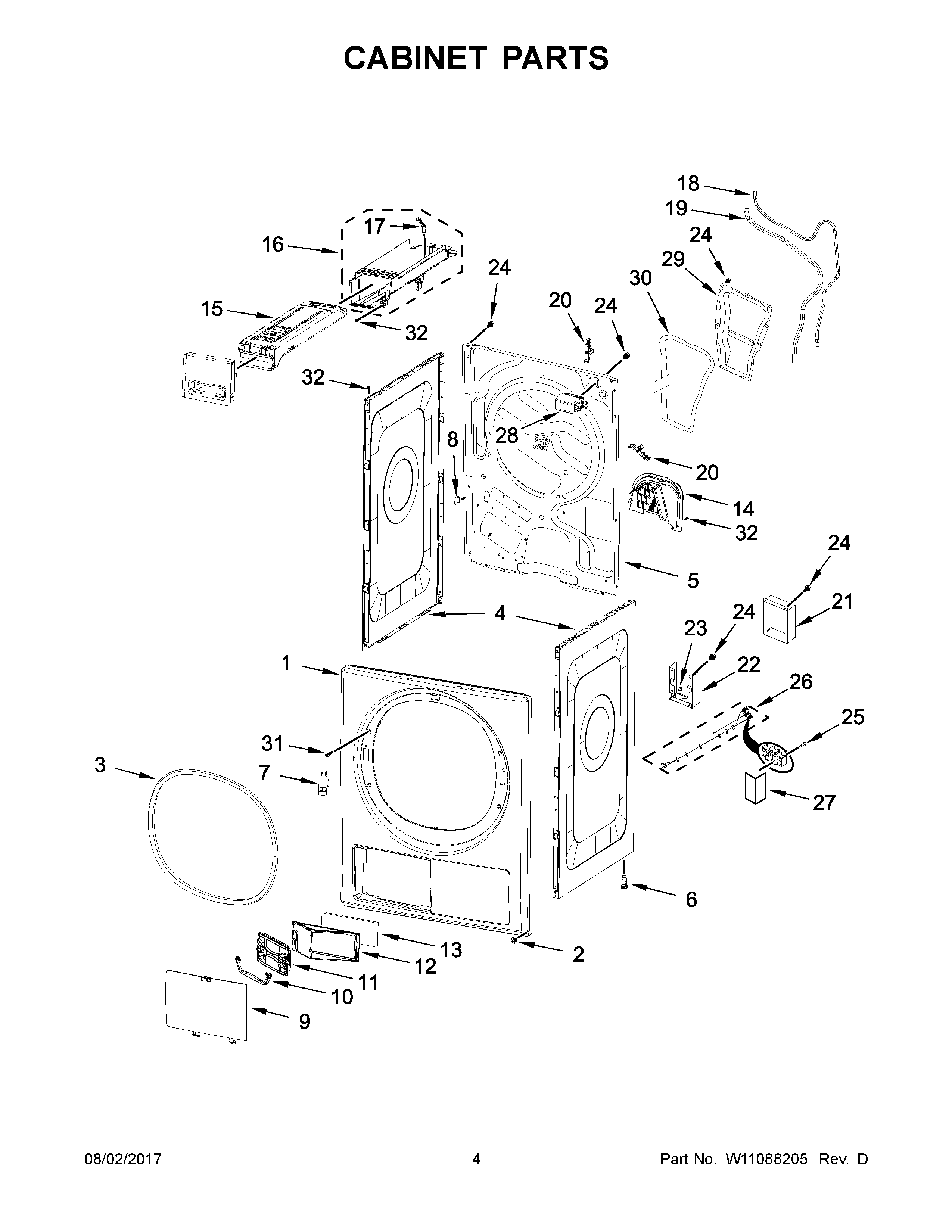

WHD5090GW0 03 – CABINET PARTS

Products

Position	Product
1	W11089032 Whirlpool Panel Assembly
2	251920100121 Whirlpool Screw
3	W10713648 Whirlpool Dryer Door Seal
4	W11086536 Whirlpool Panel
5	W10869854 Whirlpool Rear Panel
6	461971007235 Whirlpool Leveling Feet
7	W11173155 Whirlpool Lock
8	CLIP, GROUNDING
9	FILTER DOOR (FRONT PANEL)
10	W10354762 Whirlpool Handle
12	W11382898 Whirlpool Filter
14	W10869901 Whirlpool Cover
15	W10572507 Whirlpool Reservoir
16	W10869879 Whirlpool Housing Unit
17	W10629345 Whirlpool Pipe
18	461970110583 Whirlpool Hose
19	461970110592 Whirlpool Hose
20	W10877423 Whirlpool Support
21	W11024654 Whirlpool Cover
22	W10867297 Whirlpool Housing
23	SCREW
24	SCREW
25	SCREW
26	W10893552 Whirlpool Wire Harness
27	W10913553 Whirlpool Insulator
28	WPW10367632 Whirlpool Filter
29	W10730860 Whirlpool Air Duct Assembly
30	461970110931 Whirlpool Seal
31	SCREW
32	251925600056 Whirlpool Screw
