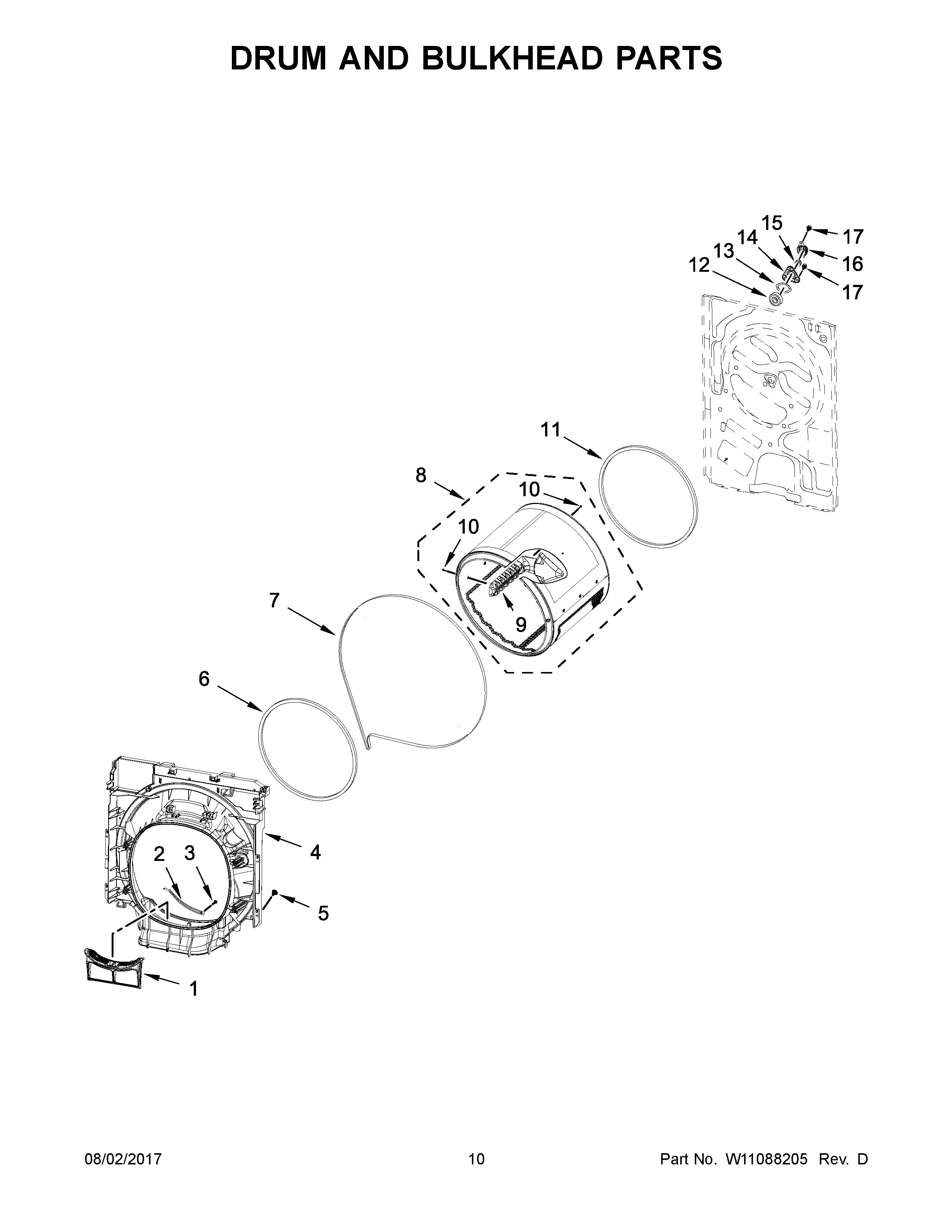

WHD5090GW0 06 – DRUM AND BULKHEAD PARTS
Written by
in
WHD5090GW0 06 – DRUM AND BULKHEAD PARTS
Products
Position
Product
1
W11665948 Whirlpool Dryer Lint Screen
2
461970109731 Whirlpool Sensor
3
251926501053 Whirlpool Screw
4
W11086785 Whirlpool Bulkhead
5
SCREW
6
W10615879 Whirlpool Seal
7
W11661103 Whirlpool Dryer Belt
8
W10580150 Whirlpool Drum Assembly
9
BAFFLE, DRUM
10
W10306501 Whirlpool Screw
11
W10829310 Whirlpool Seal
12
461970104891 Whirlpool Bearing
13
461970104831 Whirlpool Washer
14
461970109272 Whirlpool Support
15
251950002001 Whirlpool Nut
16
461970105381 Whirlpool Cover
17
251925600056 Whirlpool Screw
←
