WHD560CHW1 TOP AND CONSOLE PARTS
Written by
in

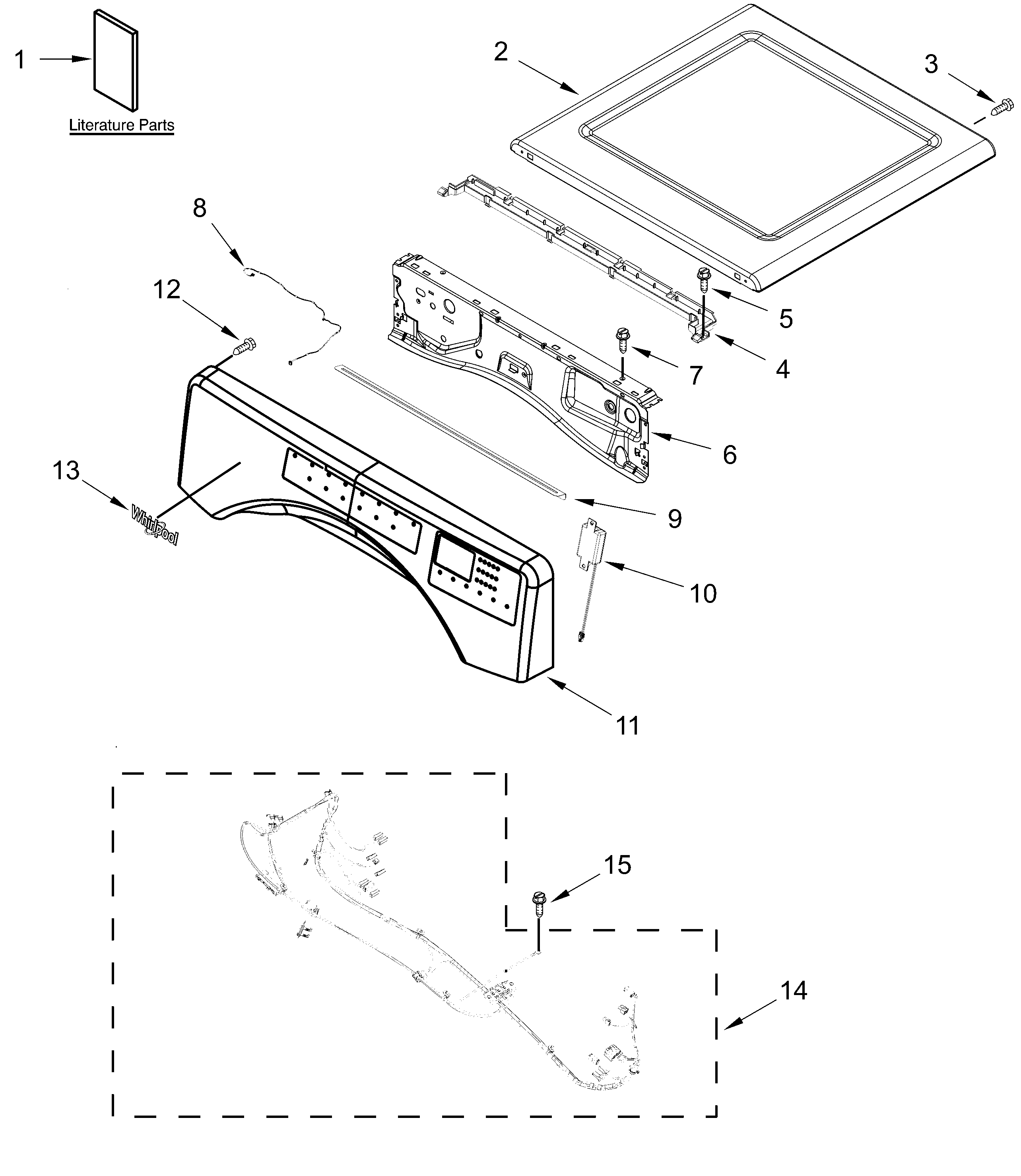

WHD560CHW1 TOP AND CONSOLE PARTS
Products
Position
Product
WIRING DIAGRAM
TECH SHEET
QUICK START GUIDE
INSTALLATION INSTRUCTIONS
USE AND CARE GUIDE
1
Literature Parts
2
WPW10208383 Whirlpool Top Panel
3
SCREW
4
W11310027 Whirlpool Bracket
5
W11686675 Whirlpool Screw
6
W11480682 Whirlpool Bracket
7
WP488729 Whirlpool Refrigerator Door Screw
8
W11459337 Whirlpool Wire Harness
9
SEAL
10
W11123146 Whirlpool Speaker
11
W11331944 Whirlpool Electronic Control Board + Core
12
W10853898 Whirlpool Screw
13
W11223753 Whirlpool Refrigerator Nameplate
14
W11157870 Whirlpool Wire Harness
15
WP693995 Whirlpool Screw
←
