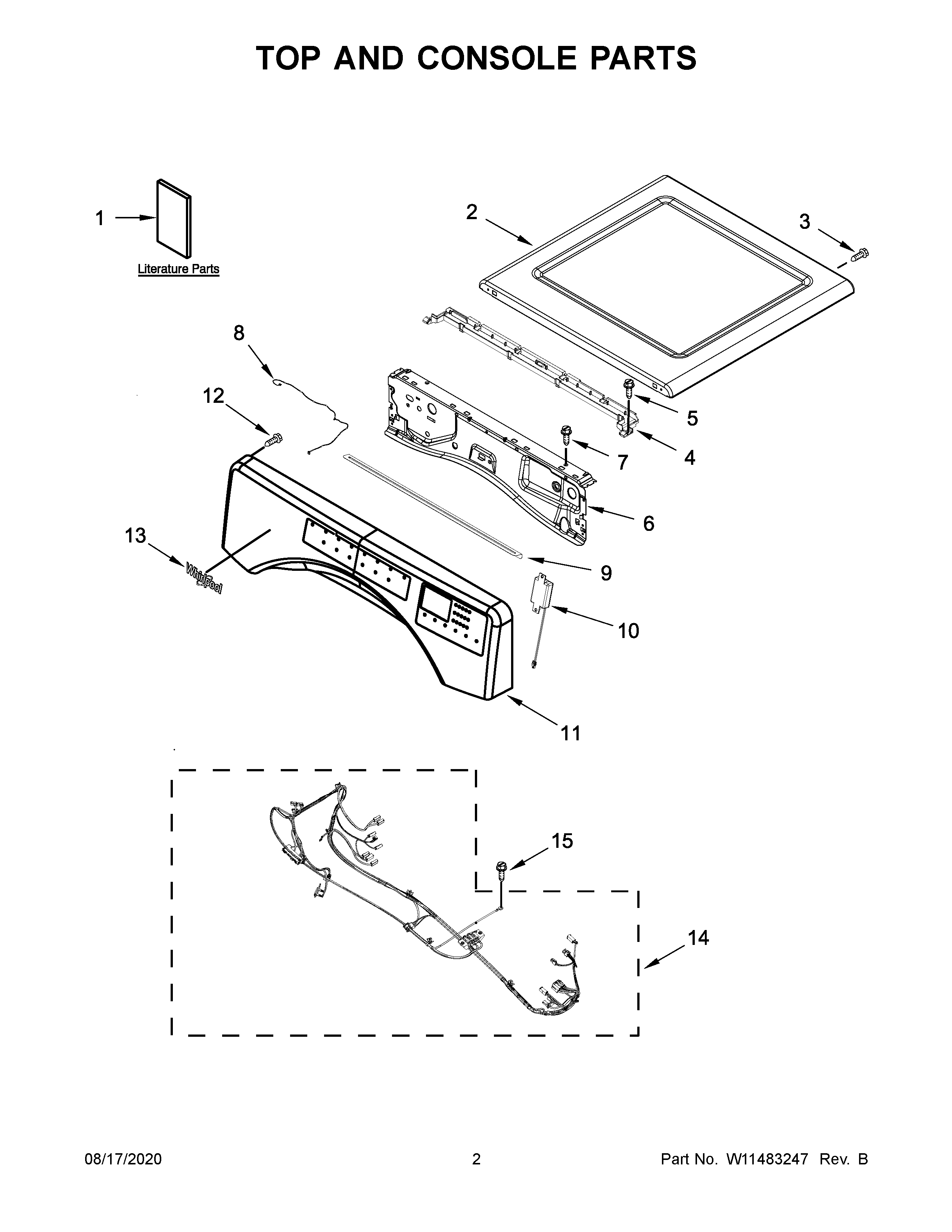

WHD560CHW2 02 – TOP AND CONSOLE PARTS

WHD560CHW2 02 – TOP AND CONSOLE PARTS

Written by

in

WHD560CHW2 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1CWIRING DIAGRAM
1BQUICK START GUIDE
1AINSTALLATION INSTRUCTIONS
1USE AND CARE GUIDE
2WPW10208383 Whirlpool Top Panel
3SCREW
4W11310027 Whirlpool Bracket
5W11686675 Whirlpool Screw
6W11480682 Whirlpool Bracket
7WP488729 Whirlpool Refrigerator Door Screw
8W11459337 Whirlpool Wire Harness
9SEAL
10W11123146 Whirlpool Speaker
11W11331944 Whirlpool Electronic Control Board + Core
12W10853898 Whirlpool Screw
13W11223753 Whirlpool Refrigerator Nameplate
14W11157870 Whirlpool Wire Harness
15WP693995 Whirlpool Screw
