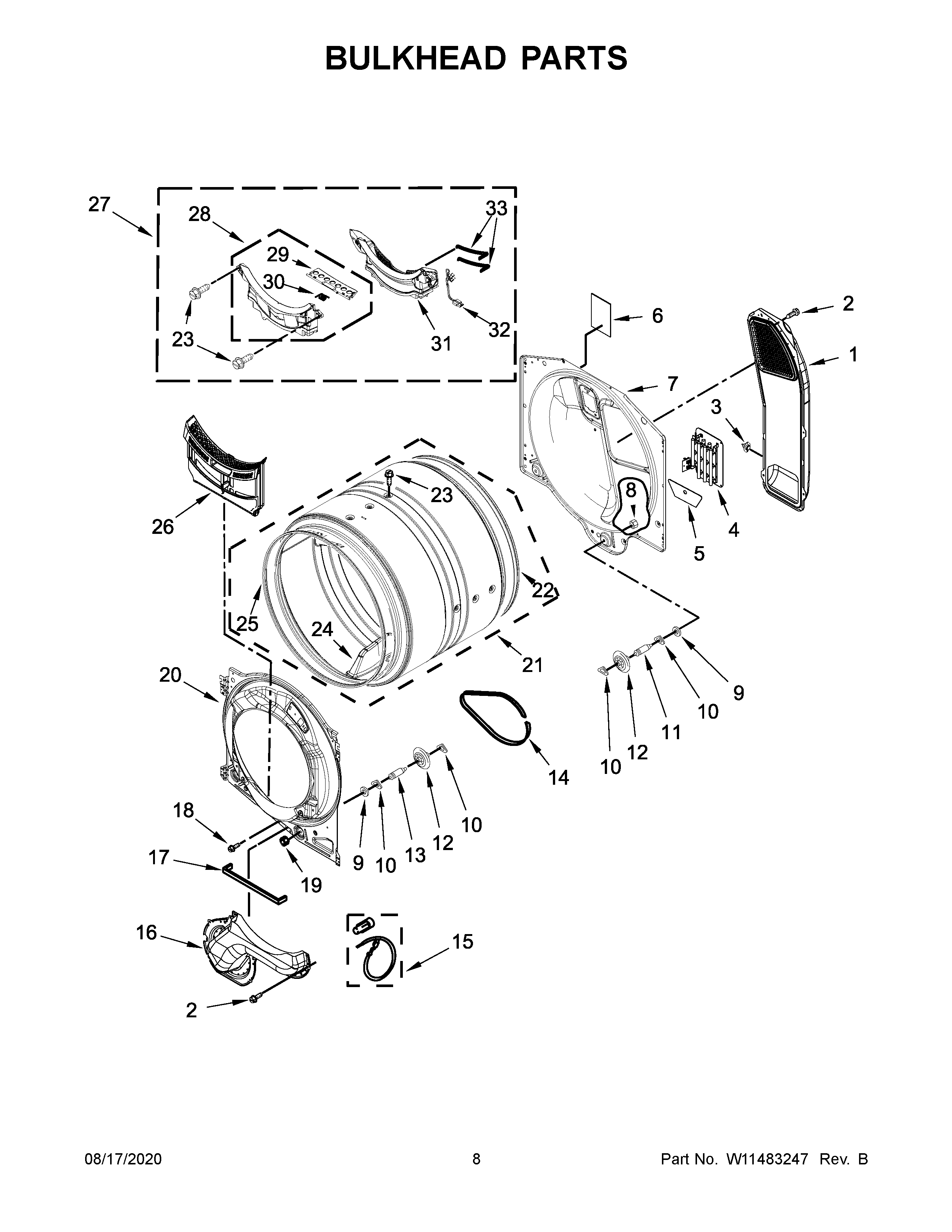

WHD560CHW2 05 – BULKHEAD PARTS

Products

Position	Product
1	W10660495 Whirlpool HVAC Air Duct
2	WP488729 Whirlpool Refrigerator Door Screw
3	W11676807 Whirlpool Dryer Thermal Cutoff
4	W11678121 Whirlpool Dryer Heating Element
5	EDGE COVER, INLET DUCT
6	W11409002 Whirlpool Pad
7	W11299300 Whirlpool Bulkhead Assembly
8	WPW10080190 Whirlpool Nut
9	W11236646 Whirlpool Washer Assembly
10	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
11	SHAFT
12	WPW10314173 Whirlpool Dryer Drum Support Wheel
13	SHAFT
14	661570V Whirlpool Dryer Drum Belt
15	279457 Whirlpool Dryer Heating Element Wide Spade Connection
16	W10642437 Whirlpool Duct Lint
17	W11676493 Whirlpool Seal Assembly
18	WP3390631 Whirlpool Screw
19	WPW10080210 Whirlpool Nut
20	W11712678 Whirlpool Bulkhead Assembly
21	W10508188 Whirlpool Drum
22	280114 Whirlpool Dryer Drum Seal
23	W10853898 Whirlpool Screw
24	W10416098 Whirlpool Baffle Assembly
25	W11193479 Whirlpool Seal
26	W11483547 Whirlpool Screen
27	W11211470 Whirlpool Out Housing
28	W10670373 Whirlpool Door Assembly
29	W11156832 Whirlpool Air Grille
30	W10834437 Whirlpool Spring
31	W10684400 Whirlpool Out Grille
32	WPW10298258 Whirlpool Wire Harness
33	WP3387223 Whirlpool Electrode Assembly
