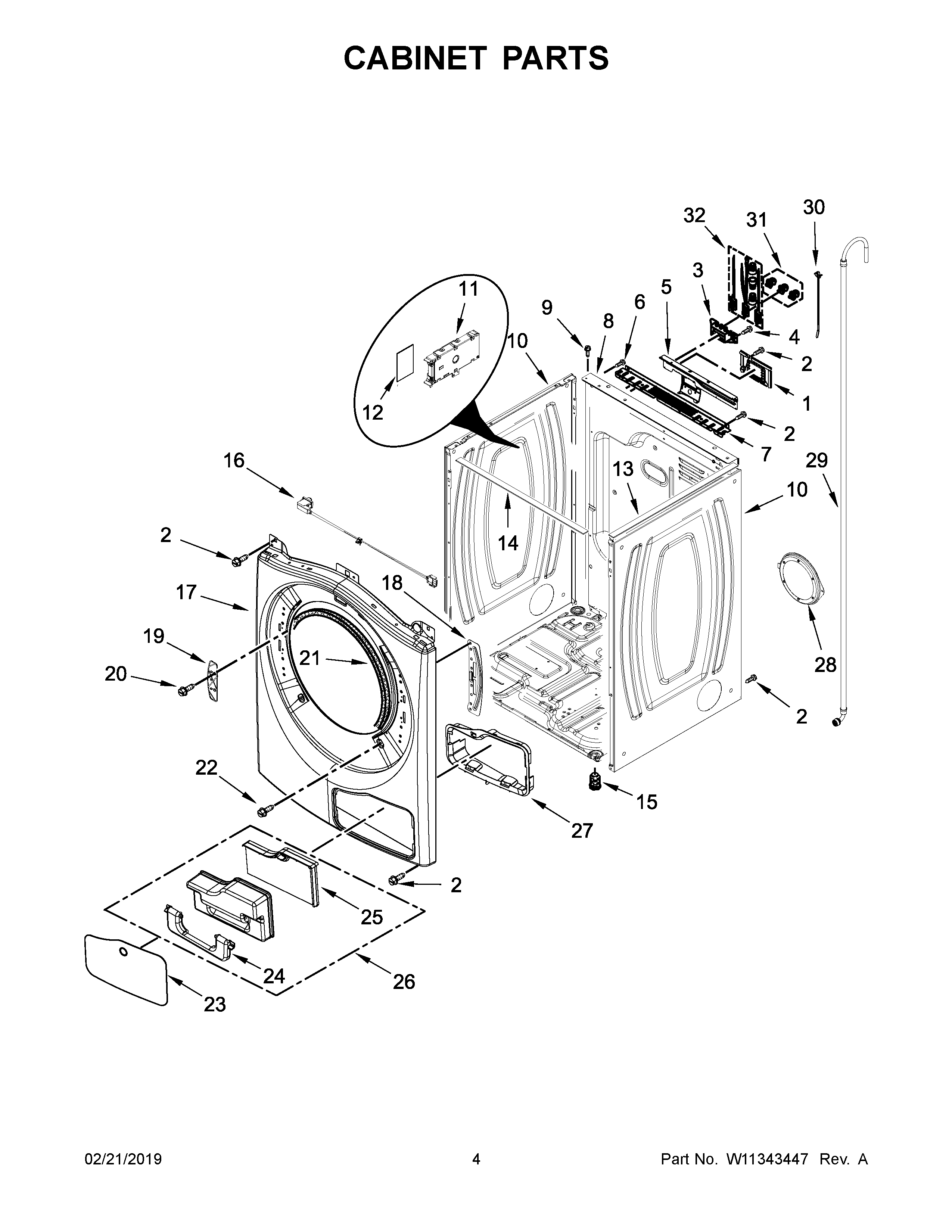

WHD862CHC0 03 – CABINET PARTS

Products

Position	Product
1	WPW10316167 Whirlpool Dishwasher Terminal Cover
2	WP488729 Whirlpool Refrigerator Door Screw
3	WP3397659 Whirlpool Terminal Block
4	WP3390631 Whirlpool Screw
5	BRACKET, TERMINAL CROSS BAR
6	W10850756 Whirlpool Screw
7	WPW10208382 Whirlpool Dryer Bracket
8	PANEL, REAR
10	W11315726 Whirlpool Panel Assembly
11	W11368759 Whirlpool Electronic Control Board + Core
12	W11409002 Whirlpool Pad
13	SEAL – STRIP
14	SEAL – STRIP
15A	FOOT, OPTIONAL (EXTENDED LENGTH) (NOT INCLUDED)
15	49621 Whirlpool Leveling Feet
16	W11427601 Whirlpool Door Switch
17	FRONT PANEL (CHROME SHADOW)
18	W11310030 Whirlpool Bracket Assembly
19	W11310031 Whirlpool Strike Assembly
20	SCREW
21	WP3387242 Whirlpool Seal
22	WP308685 Whirlpool Microwave Screw
23	W11108732 Whirlpool Dryer Cover
24	W10739609 Whirlpool Handle Assembly
25	W11199484 Whirlpool Screen Assembly
26	W10897401 Whirlpool Housing
27	W11194427 Whirlpool Control Bezel
28	GUARD, FAN
29	W11169712 Whirlpool Hose
30	WP3391018 Whirlpool Wire Tie
31	279393 Whirlpool Terminal Block Screw and Nut Kit
32	279318 Whirlpool Terminal
