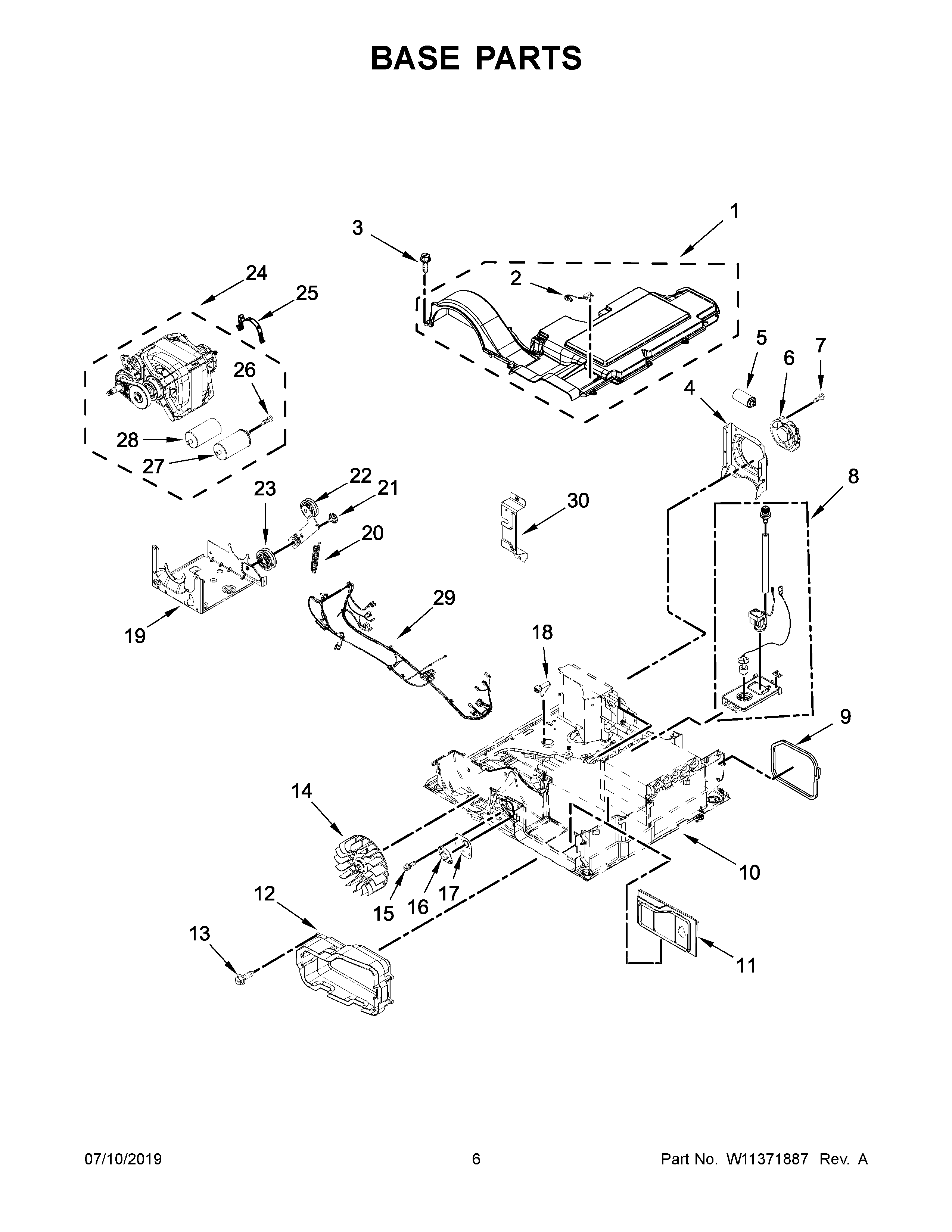

WHD862CHC1 04 – BASE PARTS

Products

Position	Product
1	W10608831 Whirlpool Cover
2	W10651558 Whirlpool Switch Assembly
3	W10853898 Whirlpool Screw
4	HOUSING, AUXILLARY FAN
5	W10724418 Whirlpool Washer Capacitor
6	W11342035 Whirlpool Fan Blade
7	W10709795 Whirlpool Refrigerator Screw
8	PUMP
9	W10459416 Whirlpool Seal
10	W11368564 Whirlpool Base
11	W11715723 Whirlpool Filter Assembly
12	W10897399 Whirlpool Outer Housing
13	WP693995 Whirlpool Screw
14	W11573366 Whirlpool Flywheel
15	WP90767 Whirlpool Screw
16	WP8577274 Whirlpool Dryer Thermistor
17	W10574749 Whirlpool Bracket
18	WPW10467289 Whirlpool Sensor
19	W10578065 Whirlpool Base
20	WPW10446781 Whirlpool Spring
21	WP3389420 Whirlpool Screw
22	W10837240 Whirlpool Dryer Idler Pulley
23	279640 Whirlpool Dryer Idler Pulley Kit
24	W11209428 Whirlpool Drive Motor
25	CLAMP
26	W10759923 Whirlpool Washer Pulley Nut
27	W10724414 Whirlpool Capacitor
28	W10442513 Whirlpool Capacitor
29	W11109746 Whirlpool Wire Harness
30	W10645092 Whirlpool Bracket
31	W11406521 Whirlpool Condenser Assembly
32	W11176272 Whirlpool Wire Harness
33	W10374142 Whirlpool Spring
34	W11406520 Whirlpool Evaporator
