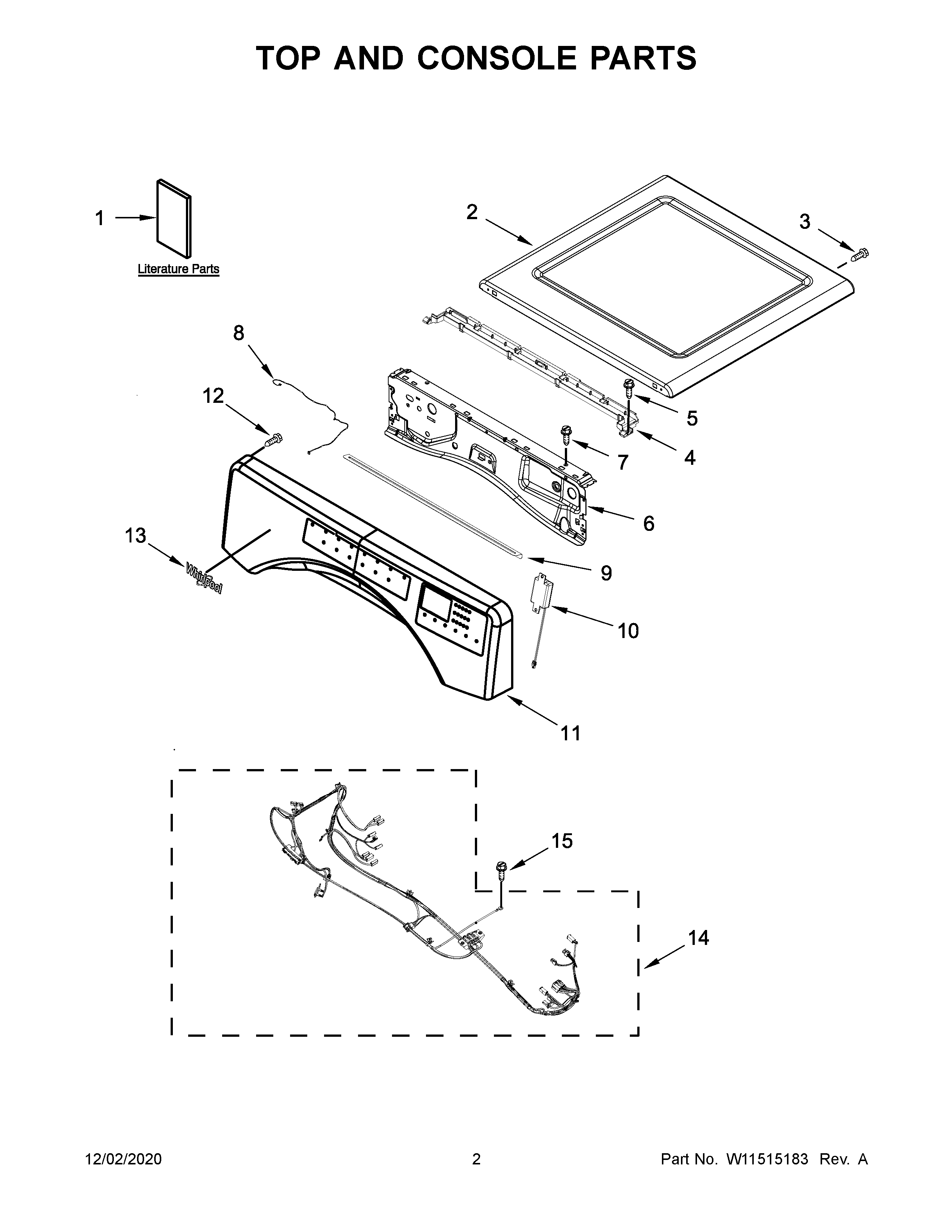

WHD862CHC2 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1D	WIRING DIAGRAM
1B	TECH SHEET
1C	QUICK START GUIDE
1A	INSTALLATION INSTRUCTIONS
1	USE AND CARE GUIDE
2	WPW10460919 Whirlpool Top
3	SCREW
4	W11310027 Whirlpool Bracket
5	W11686675 Whirlpool Screw
6	W11480682 Whirlpool Bracket
7	WP488729 Whirlpool Refrigerator Door Screw
8	W11459337 Whirlpool Wire Harness
9	SEAL
10	W11123146 Whirlpool Speaker
11	W11347420 Whirlpool Electronic Control Board + Core
12	W10853898 Whirlpool Screw
13	W11223753 Whirlpool Refrigerator Nameplate
14	W11157870 Whirlpool Wire Harness
15	WP693995 Whirlpool Screw
