WHDSE820C1WW CONTROLS & BACKSPLASH

WHDSE820C1WW CONTROLS & BACKSPLASH

Written by

in

WHDSE820C1WW CONTROLS & BACKSPLASH

Products

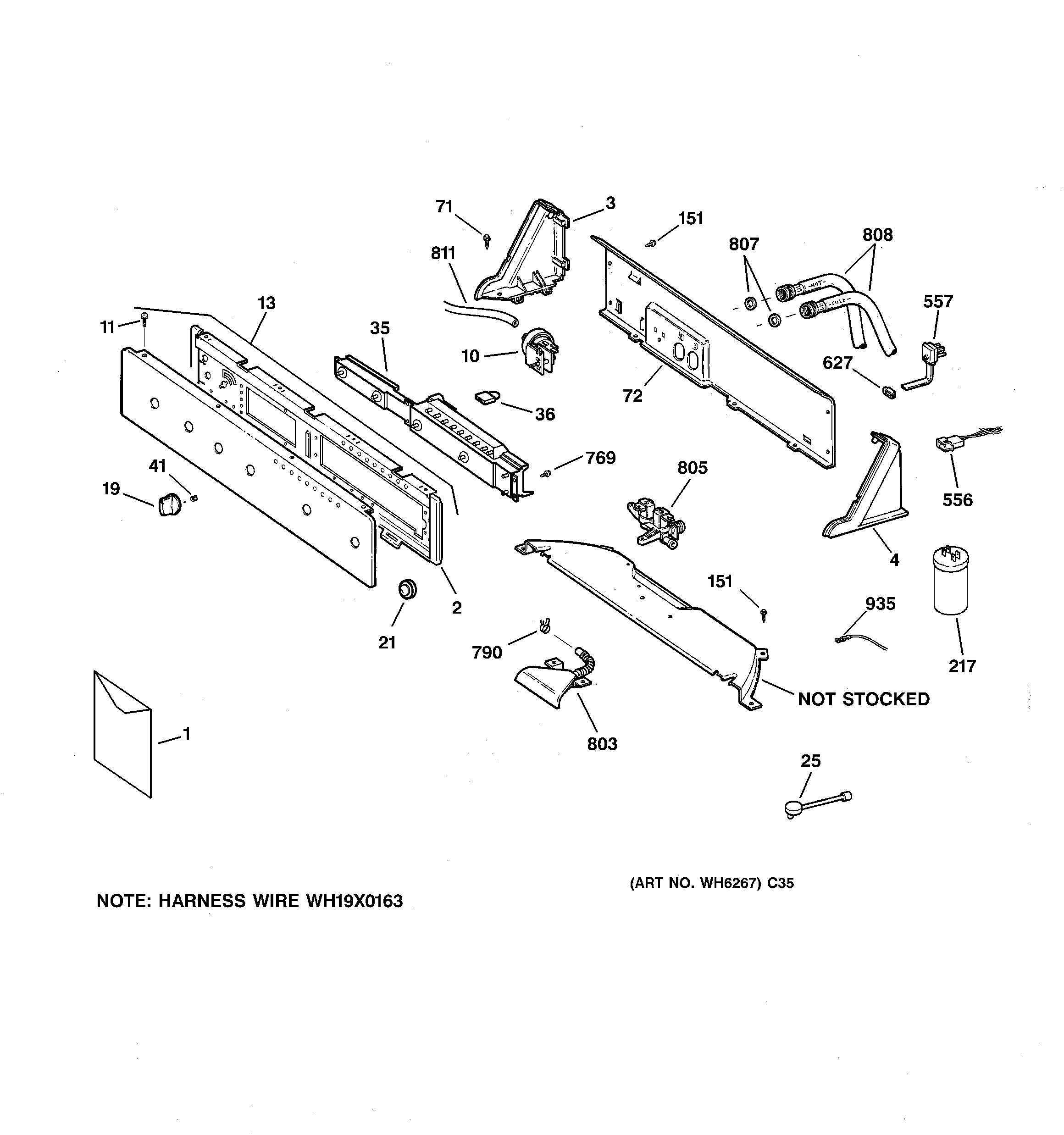

PositionProduct
1GEN 49-90150
1GEN 31-15533
1GEN 31-15441
2GEN WH46X10048
3GEN WH42X2397
4GEN WH42X2398
10GEN WH12X10108
11SCREW 8-18 AB FLT 9/16 S
13GEN WH42X10462
19WH01X10060 GE Washer Dryer Control Knob and Clip Assembly
21WH01X10088 GE Start/stop Switch Button
25GEN WH12X10223
35GEN WH12X10220
36CONNECTOR MODEL SELECT
41GEN WH01X10106
71WH2X1205 GE Screw 8-18
72GEN WH46X10083
151WH02X10126 GE Screw 8-18 B 1HW 1/2 SN
217WH12X10462 GE Washer Capacitor
556GEN WH12X0497
557GEN WH19X10021
627GEN WH12X10208
769WB1X500D GE Oven Screw Package
790WH1X2036 GE UNIX Clamp
803GEN WH41X10078
805WATER VALVE
807WH2X42D GE Washer Pack of 12
808WH41X10207 GE Washer Rubber Inlet Hose 2 Pack 4'
811WH41X365 GE Washer Water Level Pressure Switch HOSE
935GEN WD01X1434
