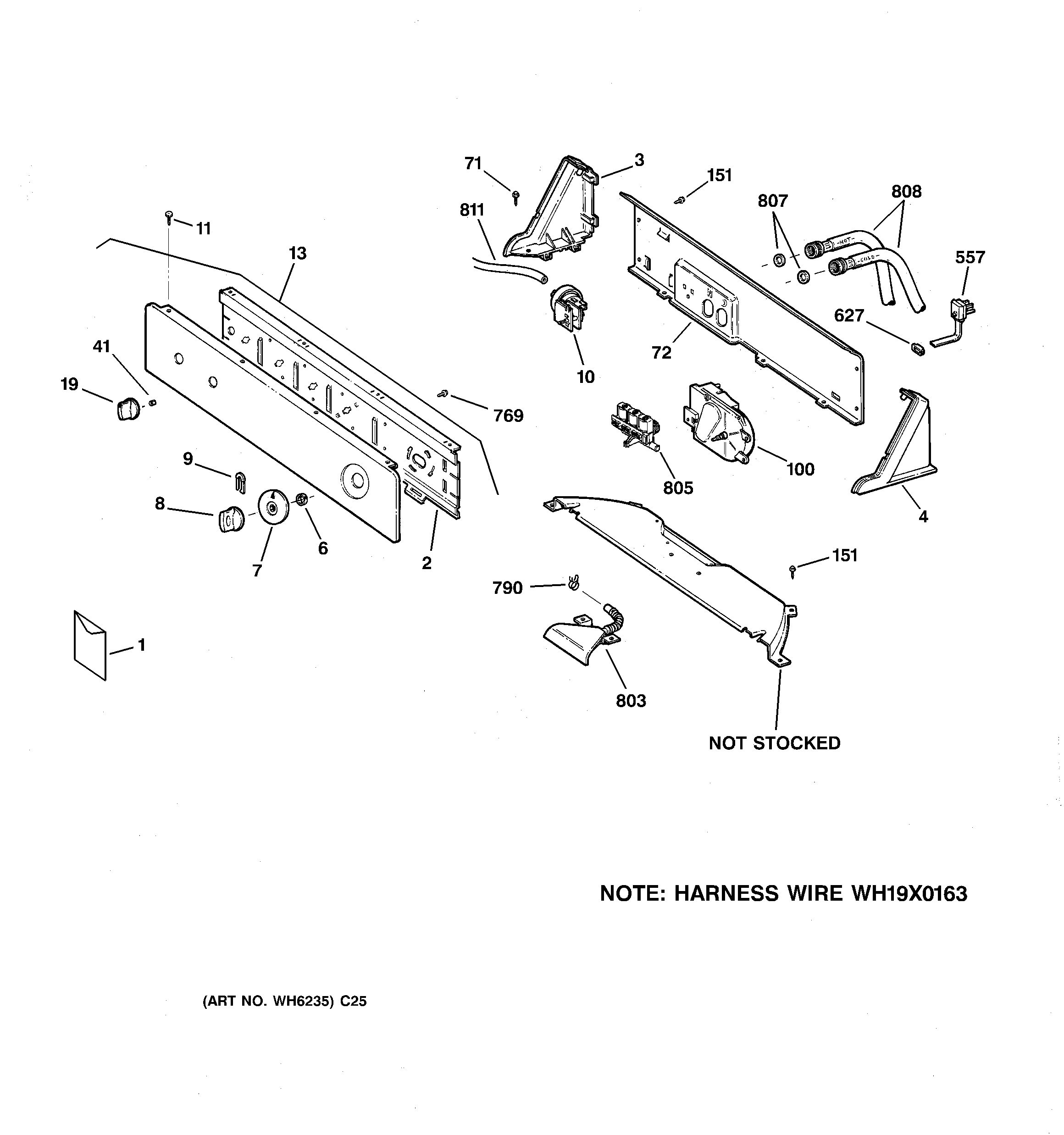

WHDSR209D1WW CONTROLS & BACKSPLASH

WHDSR209D1WW CONTROLS & BACKSPLASH

Written by

in

WHDSR209D1WW CONTROLS & BACKSPLASH

Products

PositionProduct
1GEN 31-15441
1GEN 31-15552
1GEN 49-90183
2GEN WH46X10081
3GEN WH42X2397
4GEN WH42X2398
6GEN WH02X0650
7WH11X10033 GE Washer Control Timer Dial
8WH01X10310 GE Washer Control Knob
9WH1X2117 GE Timer Knob Spring Clip
10WH12X10076 GE Washer Water Pressure Switch
11SCREW 8-18 AB FLT 9/16 S
13GEN WH42X10507
19WH01X10060 GE Washer Dryer Control Knob and Clip Assembly
41GEN WH01X10106
71WH2X1205 GE Screw 8-18
72GEN WH46X10083
100GEN WH12X10203
151WH02X10126 GE Screw 8-18 B 1HW 1/2 SN
557GEN WH19X10021
557GEN WH19X0311
627GEN WH12X10208
769WB1X500D GE Oven Screw Package
790WH1X2036 GE UNIX Clamp
803HOSE & WATER INLET
805WH13X10025 GE Washer Triple Coil Water Inlet Fill Valve
807WH2X42D GE Washer Pack of 12
808WH41X10207 GE Washer Rubber Inlet Hose 2 Pack 4'
811WH41X365 GE Washer Water Level Pressure Switch HOSE
