WHDSR417D0WW CONTROLS & BACKSPLASH

WHDSR417D0WW CONTROLS & BACKSPLASH

Written by

in

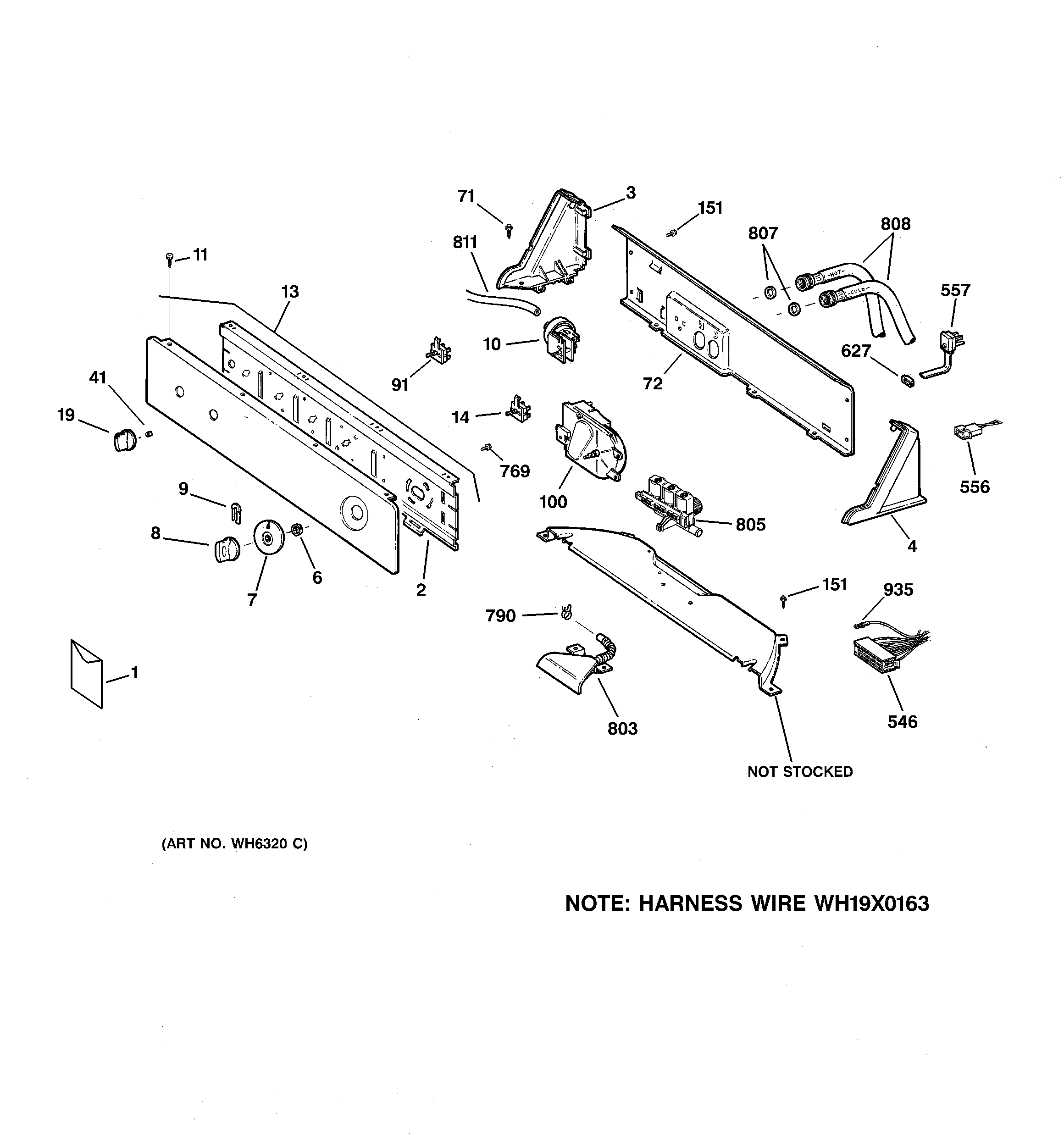

WHDSR417D0WW CONTROLS & BACKSPLASH

Products

PositionProduct
1GEN 31-15544
1GEN 31-15441
1GEN 49-90184
2GEN WH46X10081
3GEN WH42X2397
4GEN WH42X2398
6GEN WH02X0650
7WH11X10033 GE Washer Control Timer Dial
8WH01X10310 GE Washer Control Knob
9WH1X2117 GE Timer Knob Spring Clip
10GEN WH12X10069
11SCREW 8-18 AB FLT 9/16 S
13GEN WH42X10509
14GEN WH12X1007
19WH01X10060 GE Washer Dryer Control Knob and Clip Assembly
41GEN WH01X10106
71WH2X1205 GE Screw 8-18
72GEN WH46X10083
91WH12X10498 GE Washer Rotary Switch
100WH12X10255 GE Washer Timer Assembly
151WH02X10126 GE Screw 8-18 B 1HW 1/2 SN
546GEN WH12X10205
556GEN WH12X0497
557GEN WH19X10021
627GEN WH12X10208
769WB1X500D GE Oven Screw Package
790WH1X2036 GE UNIX Clamp
803HOSE & WATER INLET
805WH13X10025 GE Washer Triple Coil Water Inlet Fill Valve
807WH2X42D GE Washer Pack of 12
808WH41X10207 GE Washer Rubber Inlet Hose 2 Pack 4'
811WH41X365 GE Washer Water Level Pressure Switch HOSE
935GEN WD01X1434
