WHDVH626F0GG PEDESTAL

Products

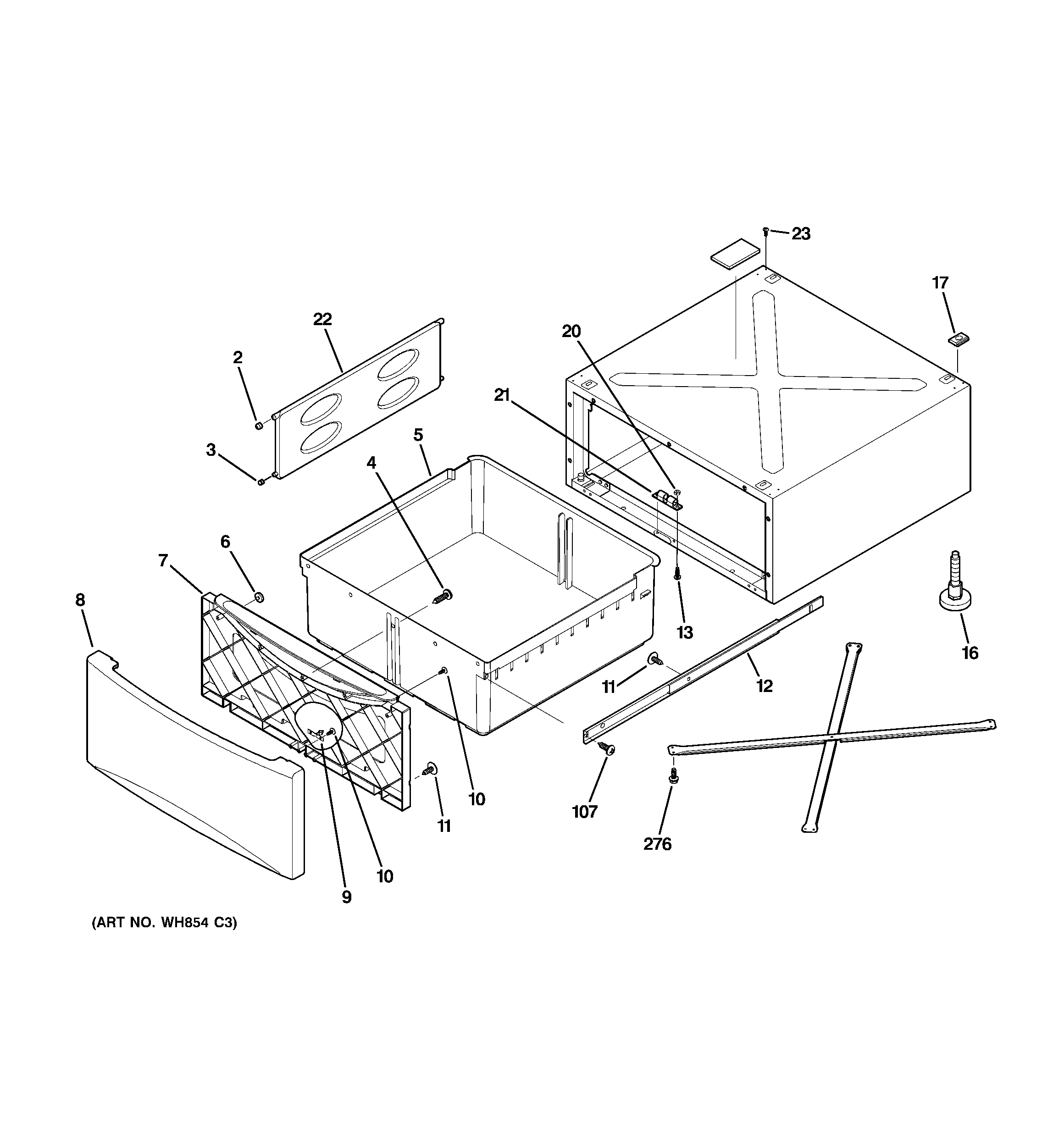

Position	Product
2	CAP RUBBER LARGE
3	CAP RUBBER SMALL
4	WH02X10222 GE Screw ST4 16
5	DRAWER PEDESTAL
6	GEN WH01X10283
7	HANDLE PEDESTAL GG
8	PANEL FRONT GG
9	WH01X10285 GE Plunger Pedestal
10	WH02X10223 GE Screw St4 10
11	WH02X10224 GE Screw St 3.5 11
12	SLIDE ASSEMBLY
13	WH02X10225 GE Screw M3 10
16	PEDESTAL LEG ASM
17	GEN WH08X10025
20	WH01X10287 GE Hex Nut M3
21	WH01X22934 GE Latch
22	DIVIDER
23	WH02X10232 GE Screw ST5.5
107	WH02X10183 GE Screw ST4 13
276	GEN WH02X10203
