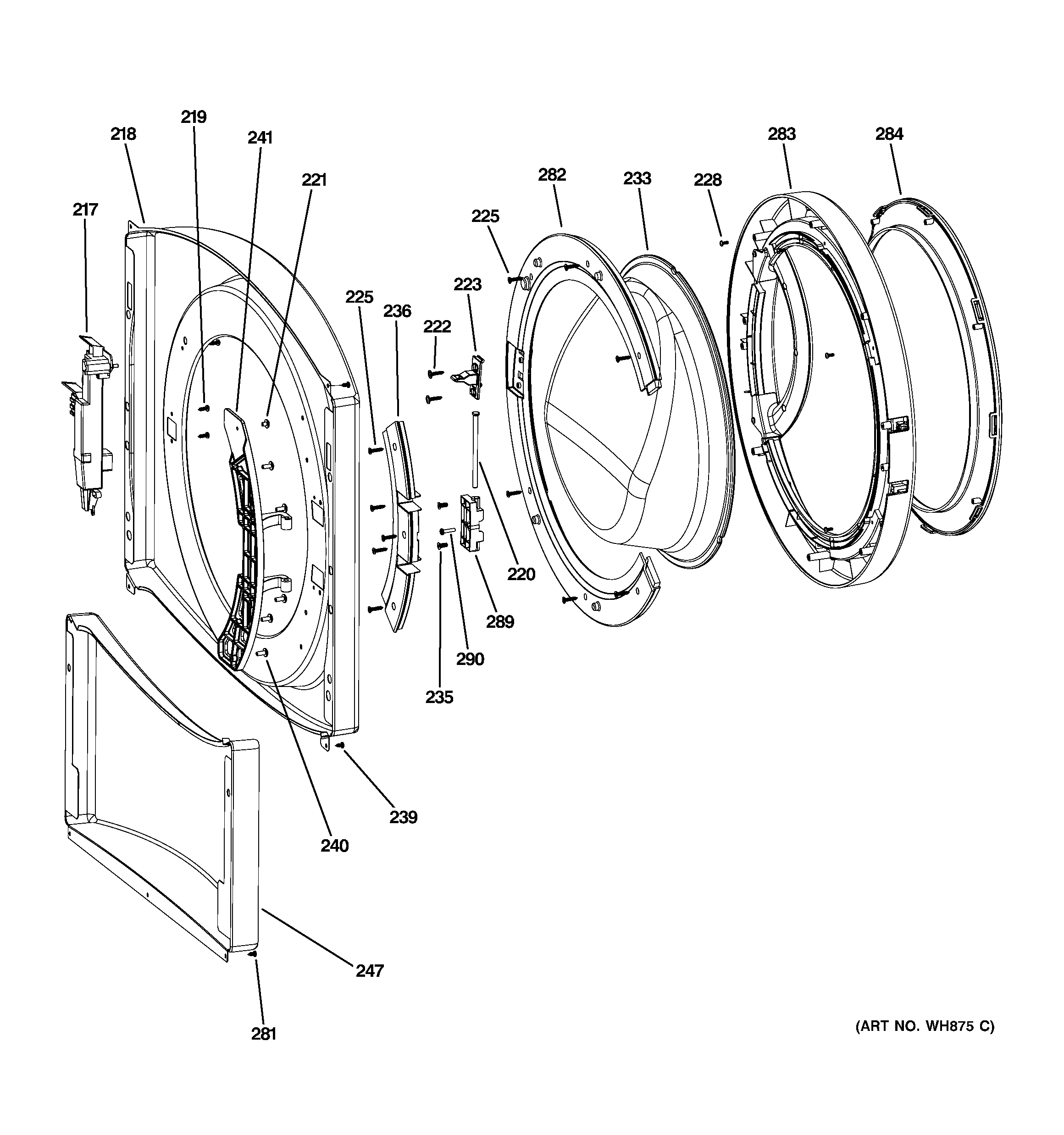

WHDVH626H1GG FRONT PANEL & DOOR

WHDVH626H1GG FRONT PANEL & DOOR

Written by

in

WHDVH626H1GG FRONT PANEL & DOOR

Products

PositionProduct
217WH10X10006 GE Latch Lock
218GEN WH46X10149
219WH02X10189 GE Screw ST4 13 F05
220GEN WH01X10319
221GEN WH02X10190
222WH02X10191 GE ST4 20 Screw
223GEN WH01X10356
225GEN WH02X10192
228WH02X10193 GE Screw ST3.5
233GEN WH46X10128
235GEN WH02X10194
236GEN WH44X10182
239WH02X10197 GE Screw St4.4 9.5
240GEN WH02X10198
241GEN WH01X10323
247SERVICE PANEL WW
281WH02X10219 GE Screw ST4 10
282GEN WH46X10185
283GEN WH46X10167
284GEN WH46X10127
289GEN WH01X10340
290GEN WH02X10252
