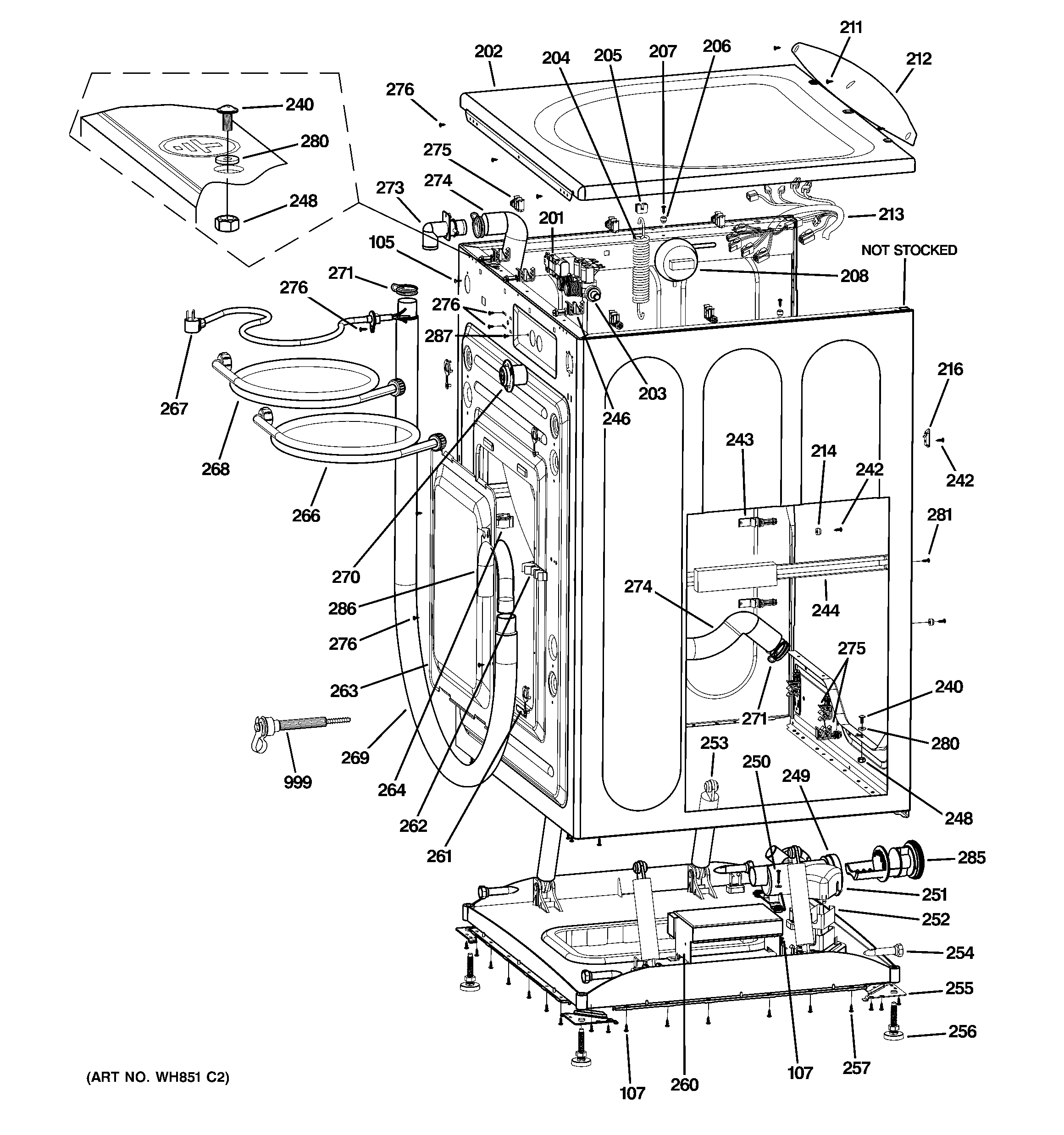

WHDVH680J1MS CABINET & TOP PANEL

WHDVH680J1MS CABINET & TOP PANEL

Written by

in

WHDVH680J1MS CABINET & TOP PANEL

Products

PositionProduct
105WH02X10181 GE Screw ST3.5 x 11
107WH02X10183 GE Screw ST4 13
201WH41X10301 GE EMI Filter
202GEN WH44X10173
202GEN WH44X10193
202GEN WH44X10197
203WATER VALVE
204WH05X10009 GE Washer Suspension Spring
205WH01X10251 GE Han R Spring
206WH01X10252 GE Top Panel Pin
207GEN WH02X10187
208GEN WH12X10307
211GEN WH02X10188
212GEN WH44X10174
212GEN WH44X10192
212GEN WH44X10196
213GEN WH19X10047
214WH01X10253 GE Front Panel Pin
216WH16X10073 GE Front Panel
240GEN WH02X10198
242GEN WH02X10182
243WH16X10074 GE Catch Wire
244GEN WH16X10075
246WH16X10076 GE Wire Catch
248GEN WH02X10199
249WH23X10028 GE Washer Drain Pump
250WH02X10200 GE Screw ST4*25
251GEN WH44X10176
252GEN WH44X10177
253WH01X10425 GE Washer Damper Shock Assembly
254WH01X10261 GE Damper Pin
255WH16X10077 GE Corner Bracket
256GEN WH46X10130
257WH02X10201 GE Screw ST4.2 13
260GEN WH12X10400
261GEN WH44X10178
262WH01X10262 GE Drain Hose Catch
263GEN WH46X10132
264WH01X10263 GE Washer Inside Drain Hose
266GEN WH41X10124
267GEN WH19X10046
268GEN WH41X10125
269WH41X10126 GE Drain Hose Outside
270GEN WH01X10264
271WH01X10265 GE Drain Hose Clamp
273WH01X10266 GE Drain Hose Coupling
274GEN WH41X10127
275WH16X10078 GE Wire Catch
276GEN WH02X10203
280GEN WH02X10218
281WH02X10219 GE Screw ST4 10
285PUMP FILTER
286WH41X10133 GE Drain Hose U-Shape
287GEN WH02X10220
999GEN WH49X10047
