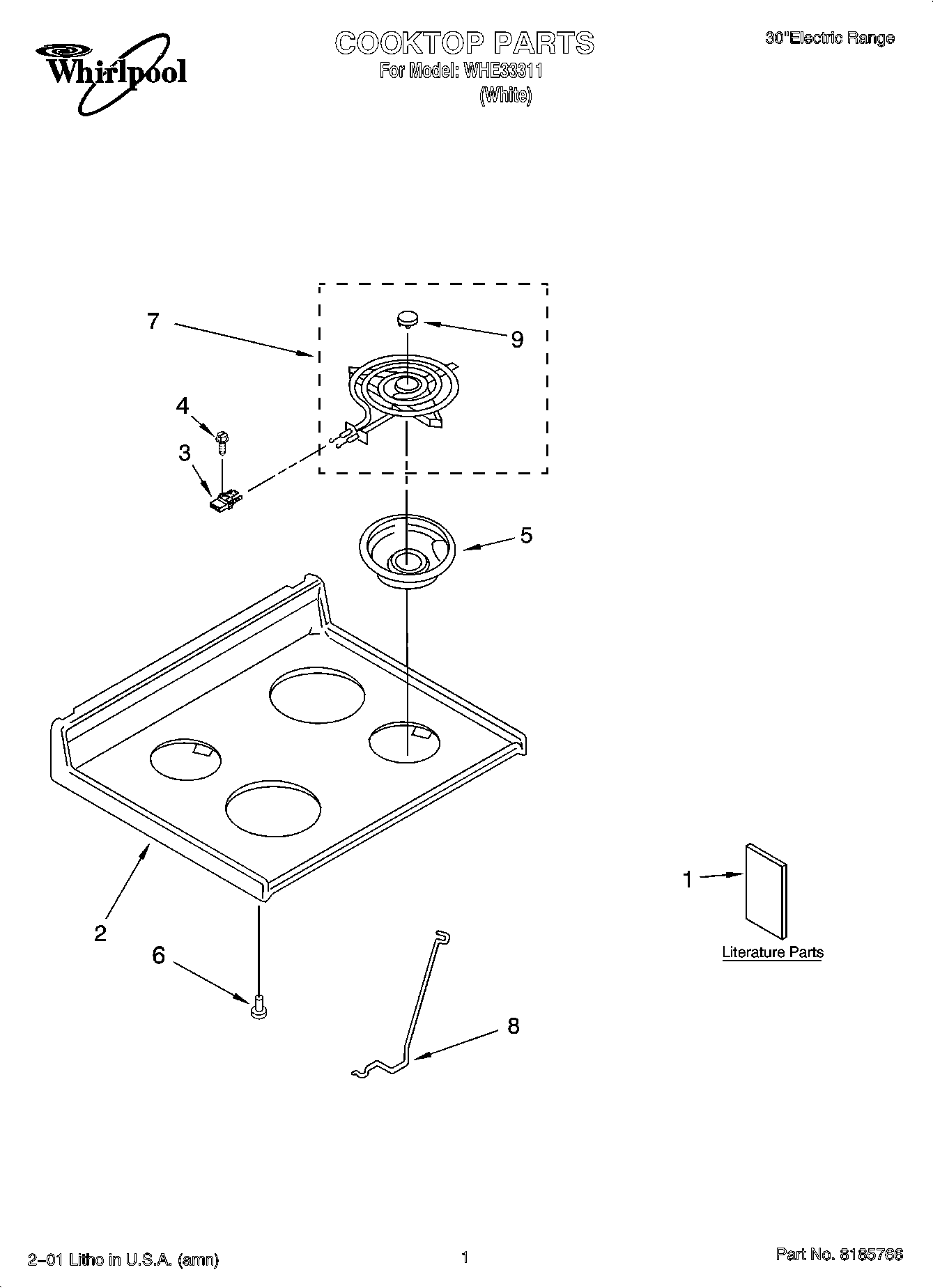

WHE33311 01 – COOKTOP PARTSadmin2025-04-26T11:08:28+00:00WHE33311 01 – COOKTOP PARTS
Products
| Position | Product |
|---|
| 1 | Literature Parts (Guide, Use & Care) |
| 1 | Literature Parts (Installation Instructions) |
| 1 | WPL LIT9752768 |
| 2 | Cooktop, Coil |
| 3 | Receptacle, Clip |
| 4 | WP313808 Whirlpool Screw |
| 5 | WPW10290353 Whirlpool Drip Bowl 6" ClimaTek |
| 5 | WPW10290350 Whirlpool Stove Drip Bowl |
| 6 | 238614 Whirlpool Bumper Hinge |
| 7 | Element, Surface (Coil, 6`` LR (Accu Simmer)) |
| 7 | Element, Surface (Coil, 8`` LF-RR) |
| 7 | Element, Surface (Coil, 6`` RF) |
| 8 | Cooktop Rod |
| 9 | Medallion, (1) (Accu-Simmer) |
| 9 | Medallion, (4) |
