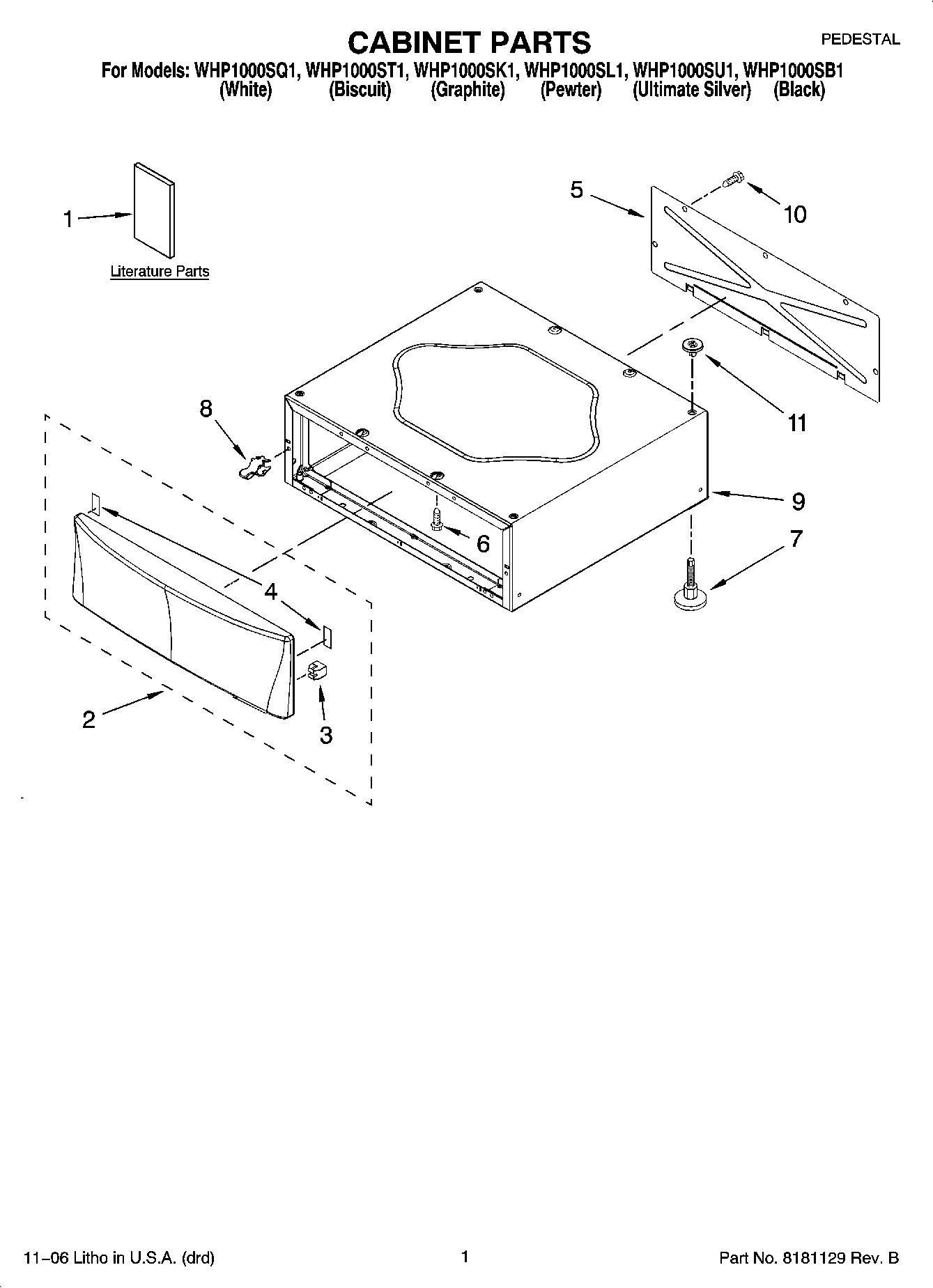

WHP1000SB1 01 – CABINET PARTS

WHP1000SB1 01 – CABINET PARTS

Written by

in

WHP1000SB1 01 – CABINET PARTS

Products

PositionProduct
350930 Whirlpool White Spray Paint
WPL 786020
PAINT, PRESSURIZED SPRAY (12 oz.) (Pewter)
72032 Whirlpool Touch Up Paint Black
PAINT, TOUCH-UP (1/2OZ. GRAPHITE)
8171357 Whirlpool Spray Nozzle
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
72017 Whirlpool Appliance Touch-Up Paint White
350938 Whirlpool Spray Gun
WP4396174 Whirlpool Touch-Up Paint
1Installation Instructions
2Panel Asm, Front (Graphite)
2Panel Asm, Front (Biscuit)
2WPW10111644 Whirlpool Front
2Panel Asm, Front (Pewter)
2Panel Asm, Front (Ultimate Silver)
2Panel Asm, Front (Black)
3279570 Whirlpool Dryer Door Latch Kit
4Pad, Adhesive (4)
5Panel, Rear
6WPW10346892 Whirlpool Screw
7WP8563585 Whirlpool Foot Assembly
9Cabinet (Not Serviced)
10WPW10213953 Whirlpool Screw
11WP8537982 Whirlpool Pad
