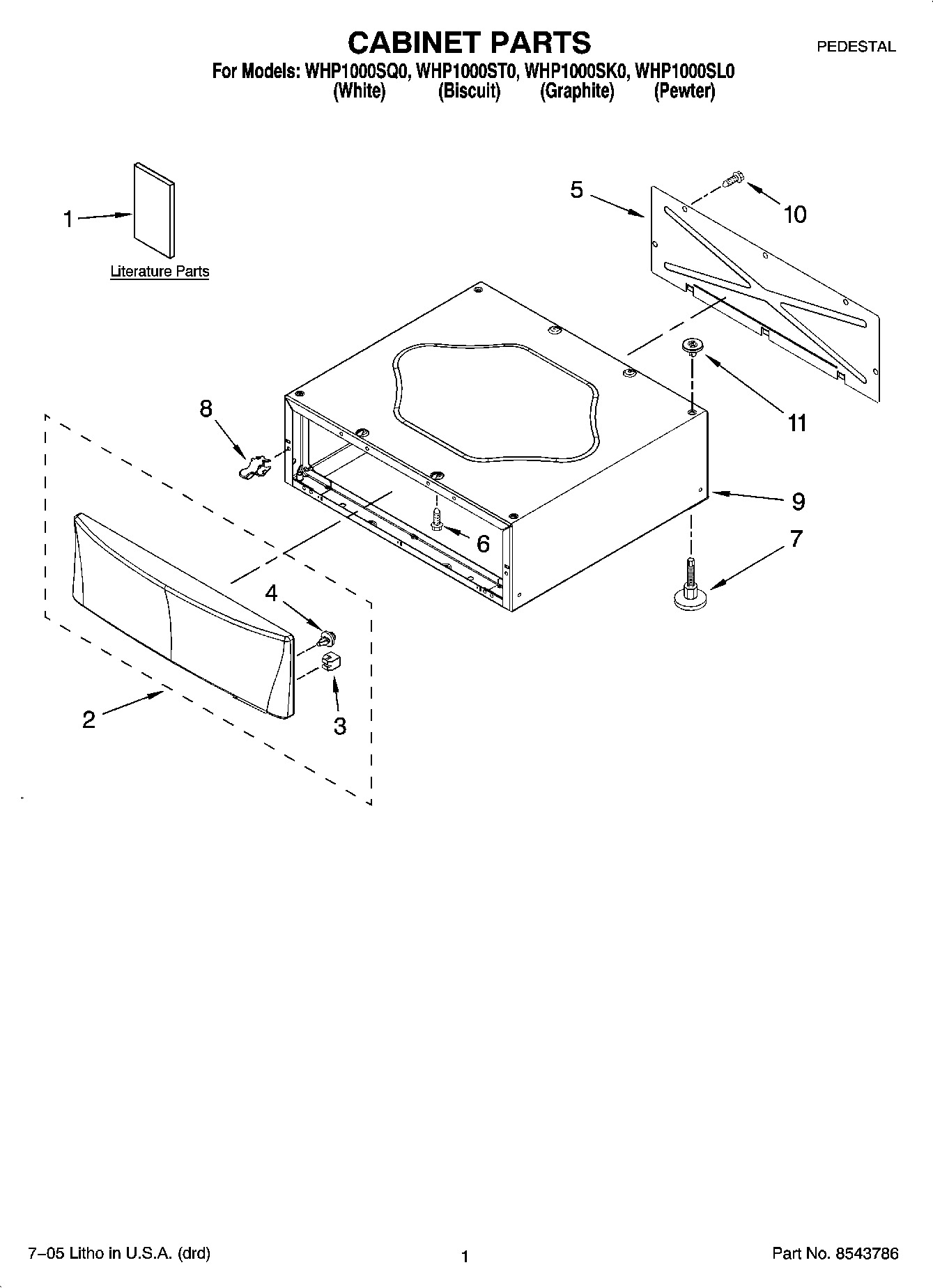

WHP1000ST0 01 – CABINET PARTS

WHP1000ST0 01 – CABINET PARTS

Written by

in

WHP1000ST0 01 – CABINET PARTS

Products

PositionProduct
1Parts List (6)
1Installation Instructions
2WPW10111644 Whirlpool Front
2Panel Asm, Front (Biscuit)
2Panel Asm, Front (Graphite)
2Panel Asm, Front (Pewter)
3279570 Whirlpool Dryer Door Latch Kit
48572266 Whirlpool Bumper Assembly
5Panel, Rear
6WPW10346892 Whirlpool Screw
7WP8563585 Whirlpool Foot Assembly
9Cabinet (Not Serviced)
10WP1163283 Whirlpool Air Conditioner Screw
11350938 Whirlpool Spray Gun
1172017 Whirlpool Appliance Touch-Up Paint White
114392899 Whirlpool Biscuit Touch-Up Paint
114392901 Whirlpool Biscuit Spray Paint
118171357 Whirlpool Spray Nozzle
11PAINT, PRESSURIZED SPRAY (12 oz.) (Pewter)
11WP4396174 Whirlpool Touch-Up Paint
11WP8537982 Whirlpool Pad
11PAINT, TOUCH-UP (1/2OZ. GRAPHITE)
11350930 Whirlpool White Spray Paint
