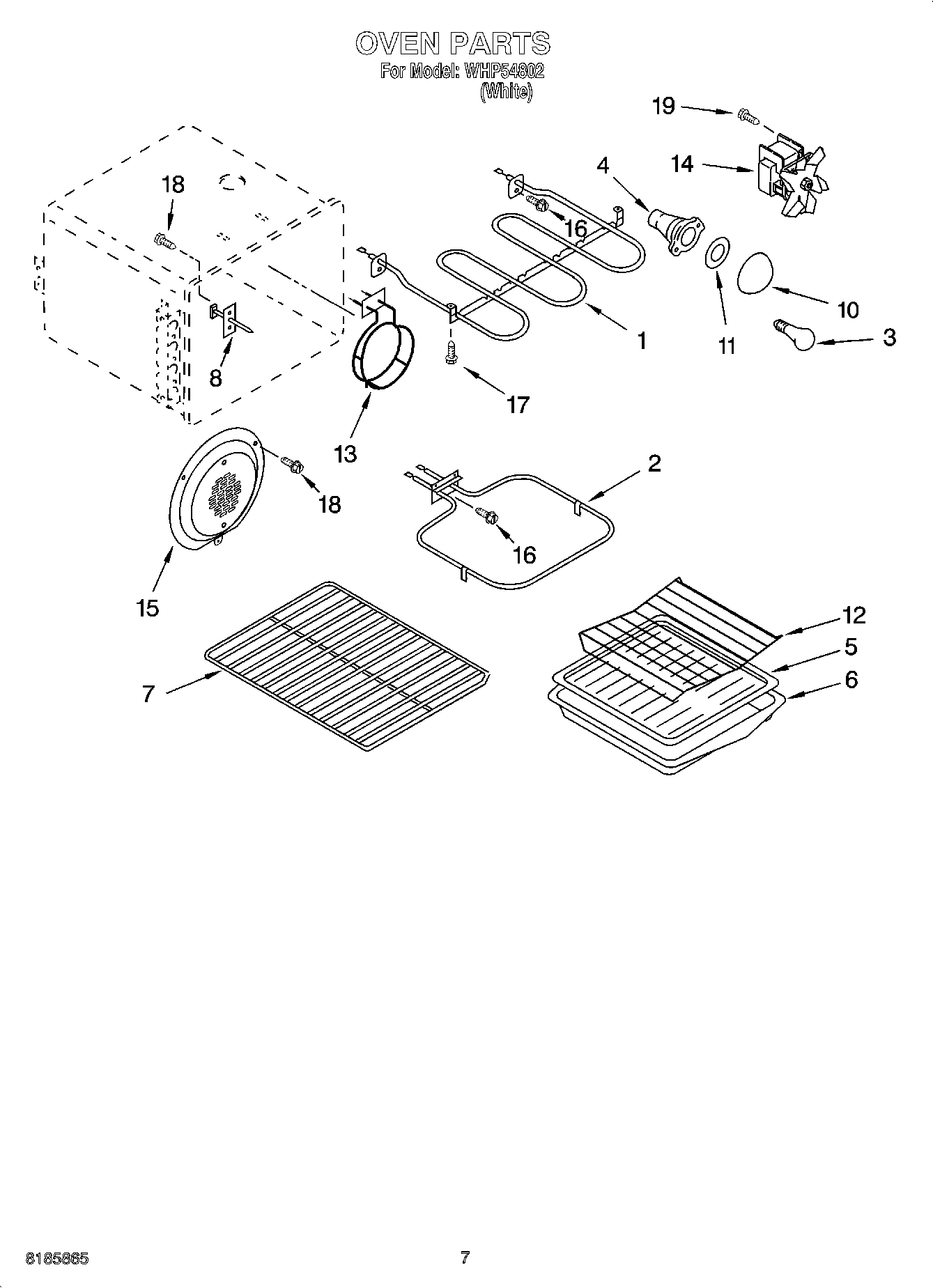

WHP54802 05 – OVEN PARTS, MISCELLANEOUS PARTS

Products

PositionProduct
WPL ARI135868A
WPL 9750744
1
Wire (14 Ga. 200 c Brown)
18 Ga. 80~c Rating (Red)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
WPL 9781542
WPL 9752771
WPL 9752772
WPL ARI135867A
WPL ARI135866A
WPL ARI135865A
WPL 9753684
WPL 9781291
WPL 9752848
PT400 Whirlpool Range Power Cord
WPL 9751014
WPL 9751003
Grease
WPL ARI135869A
8212471 Whirlpool Oven Paint
Hanger, Cable
350930 Whirlpool White Spray Paint
FOIL, ALUMINUM OVEN (18“ X 25 )
WPW10208653 Whirlpool Insulation
WPL 799832
WP72107 Whirlpool Touchup
511873 Whirlpool Refrigerator Paint
350942 Whirlpool Spray Paint
Golden Harvest (Uncut)
Golden Harvest
SCREW
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
Almond (Uncut)
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
Paint, Touch-Up 1/2 Oz. (Coffee)
paint, spray 13 oz. (coffee)
Paint, Spray 13 Oz. (Avocado)
285006 Whirlpool Spray
WPW10339879 Whirlpool Wire Tie
Wire, 25“ Roll (White 14 GA.)
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
72109 Whirlpool Dacor Avocado Touch-Up Paint
1Element, Broil
2ELMNT-BAKE
3RANGE ONLY 40W 120V APPL BULB
4W11594027 Whirlpool Range Oven Light Socket
64396923 Whirlpool Broil Pan Set Gray Porcelain
7Rack, Standard (3)
8Sensor
10WP9781049 Whirlpool Light Lens
11WP3184533 Whirlpool Range Light Lens Gasket
12Rack, Roasting
13WPW10280189 Whirlpool Element
14Fan Assembly
15Baffle, Convection
16Screw
17340184 Whirlpool Screw
18WP4159387 Whirlpool Compactor Screw
19Screw (4) 10 x 1/2
