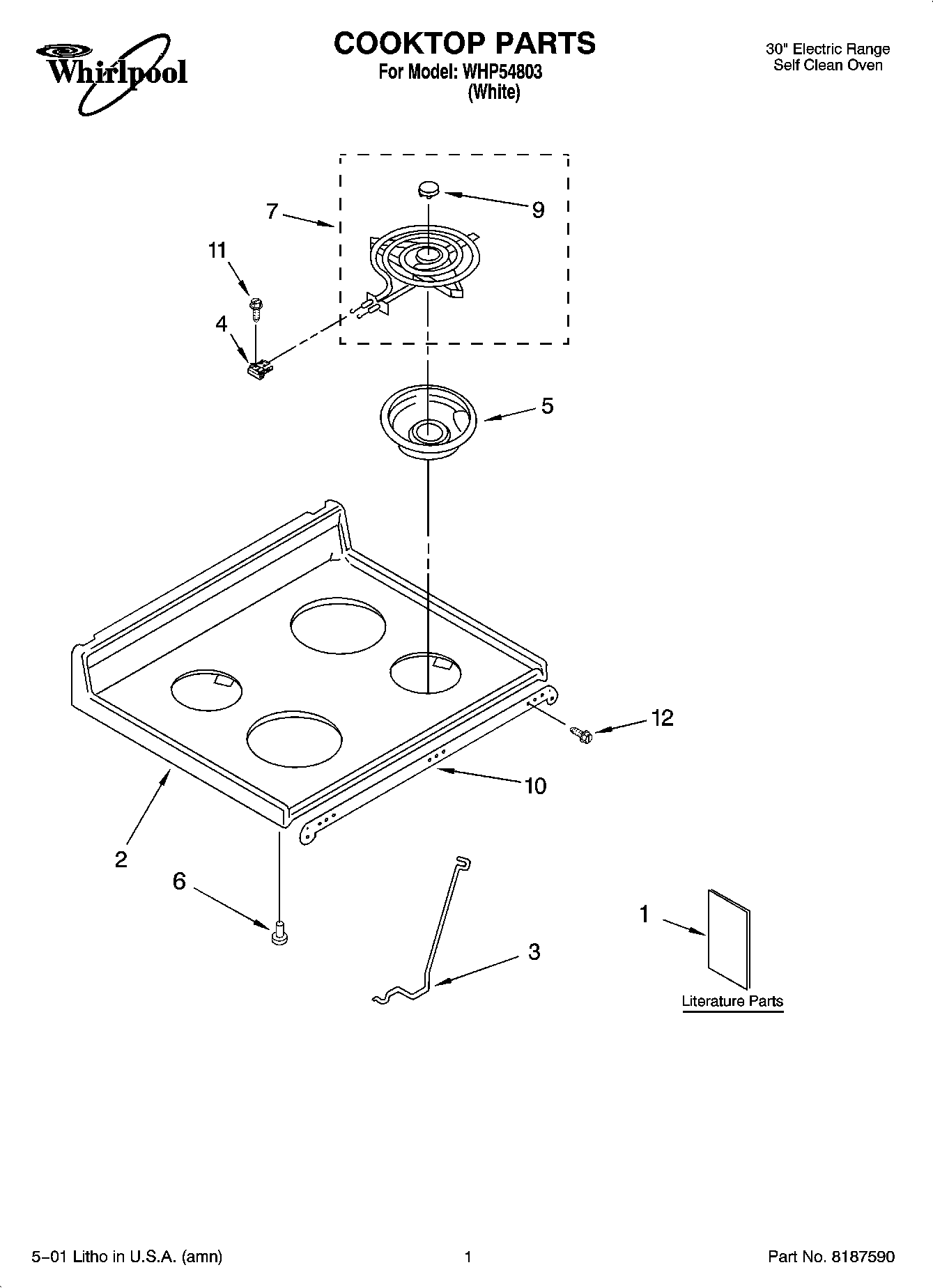

WHP54803 01 – COOKTOP PARTS

WHP54803 01 – COOKTOP PARTS

Written by

in

WHP54803 01 – COOKTOP PARTS

Products

PositionProduct
1Literature Parts (Use & Care Guide)
1Literature Parts (Installation Instructions)
1Literature Parts (Installation Instructions)
1WPL LIT9752776
1Literature Parts (Wiring Diagram)
2Cooktop, Coil
3Cooktop Rod
4Receptacle, Clip
5WPW10290350 Whirlpool Stove Drip Bowl
5WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
6238614 Whirlpool Bumper Hinge
7Element, Surface (Coil, 6“ LR (Accu Simmer))
7Element, Surface (Coil, 8“ LF-RR)
7Element, Surface (Coil, 6“ RF)
9Medallion, (4)
9Medallion, (1) (Accu-Simmer)
10Guard, Wire
11WP313808 Whirlpool Screw
12Screw (2) 8 x 3/8
